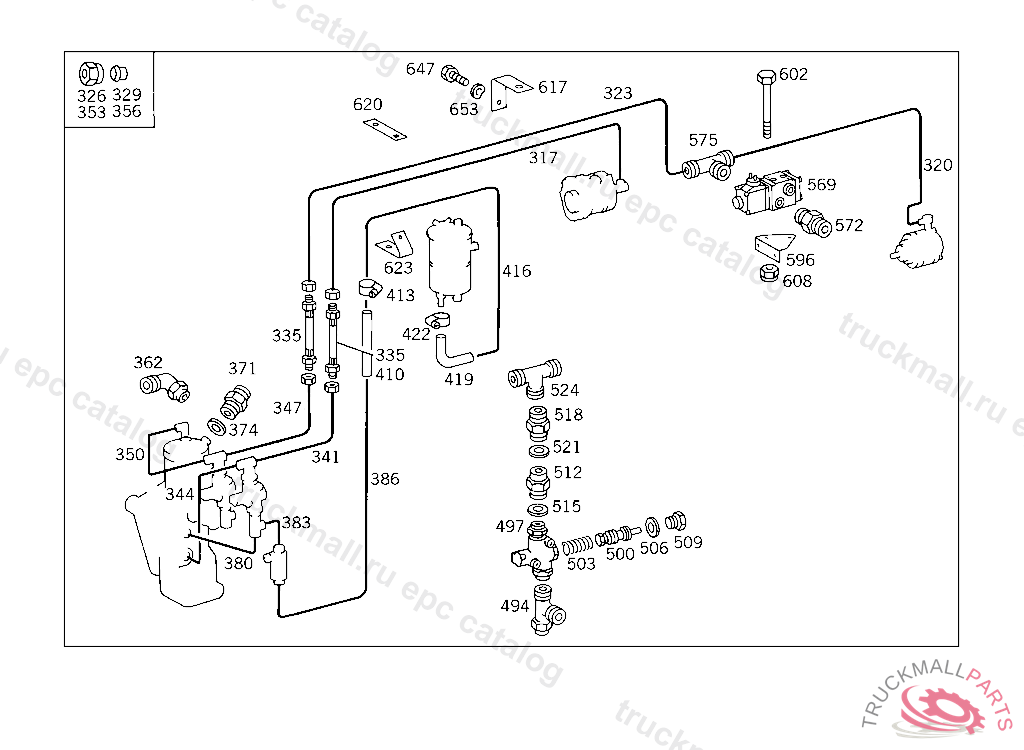

Поз.
Артикул
Описание
317
LINE FROM PUMP TO HIGH PRESSURE HOSE, CIRCUIT I,5 704174
320
LINE DELIVERY LINE TO OIL PUMP,CIRCUIT II,5 704174
323
LINE FROM STEERING TO HIGH PRESSURE HOSE, CIRCUIT II,5 704174
326
UNION NUT LINE CONNECTION, Replaced By: N000000006239
329
SEAL CONE LINE CONNECTION
329
GLAND , Replaced By: A0019901967
335
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
335
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
335
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
341
LINE FROM HOSE TO PRESSURE LIMIT VALVE T-FITTING,CIRCUIT I,5 704174
344
LINE FROM PRESSURE LIMIT VALVE TO STEERING, BOTTOM,CIRCUIT I,5 704174
347
LINE FROM HOSE TO PRESSURE LIMIT VALVE T-FITTING,CIRCUIT II
350
LINE FROM PRESSURE LIMIT VALVE TO STEERING, CIRCUIT II,5 597837
353
UNION NUT LINE CONNECTION, Replaced By: N000000006239
356
SEAL CONE LINE CONNECTION
356
GLAND , Replaced By: A0019901967
362
ELBOW FITTING DELIVERY LINE TO PUMP
371
FITTING (DELIVERY LINE),FROM PUMP TO STEERING, Replaced By: A9329970772
374
SEAL RING SOLENOID VALVE A 18X24
380
LINE FROM STEERING TO T-FITTING 1, 005,009 5 399649 015,018,018,025,028,029 5 401092, ALSO INSTALLED IN 5 400444
383
LINE TWO-WAY VALVE T-FITTING,TEST CONNECTION 1, 005,009 5 399649 015,018,018,025,028,029 5 401092, ALSO INSTALLED IN 5 400444
386
LINE FROM TWO-WAY VALVE TO HOSE 1, 005,009 5 399649 015,018,018,025,028,029 5 401092, ALSO INSTALLED IN 5 400444
410
HOSE , NOT USED
410
HOSE , Replaced By: A6999974082
410
HOSE , Replaced By: A3859971682
413
CLAMP HOSE TO FITTING AND TO OIL TANK
413
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
416
LINE (RETURN LINE),FROM HOSE TO HOSE,5 704174
419
HOSE FROM RETURN LINE TO OIL TANK
422
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
422
CLAMP HOSE TO FITTING AND TO OIL TANK
494
SCREW-IN FITTING RETURN, FROM STEERING TO OIL TANK
497
VALVE (PRESSURE LIMIT VALVE) 100 BAR
500
PISTON , Replaced By: A0004665783
500
PISTON
503
SPRING
503
SPRING , Replaced By: A0029935201
506
SEAL RING
509
SCREW PLUG
512
FITTING
515
SEAL RING AT AIR COMPRESSOR
518
FITTING (DELIVERY LINE),FROM PUMP TO STEERING, Replaced By: A9329970772
521
SEAL RING SOLENOID VALVE A 18X24
524
T-FITTING SUPPLY LINE FOR TRANSMISSION
569
VALVE PRESSURE LIMIT,CIRCUIT II 150 BAR
569
VALVE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0004664291
572
SCREW-IN FITTING DELIVERY LINE TO PUMP
575
T-FITTING SUPPLY LINE FOR TRANSMISSION
596
BRACKET CUT-IN VALVE
602
SCREW 3/2-WAY VALVE TO BRACKET, UP TO IDENT NO. 5 385481 FROM IDENT NO. SEE STANDARD VERSION
608
NUT HOOK TO BRACKET
608
NUT , Replaced By: N910113005001
617
BRACKET AT TRANSMISSION, 005,009 5 399649 015,018,018,025,028,029 5 401092, ALSO INSTALLED IN 5 400444
620
BRACKET , Replaced By: A3604293140
620
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
623
BRACKET OIL LINE ON ENGINE SIDE
623
BRACKET , Replaced By: A6194660740
647
SCREW BRACKET TO EXHAUST MUFFLER BRACKET
653
SPRING WASHER AIR COMPRESSOR LINE TO ENGINE,5 812731 - 5 8174215 936366 - 5 999999K 000001N 817422K 126820
653
SPRING WASHER CAB FLOOR
999
NUT , Replaced By: A0002680472
999
DRAG LINK END , Replaced By: A0004602848
999
DRAG LINK END , Replaced By: A0014602348, +001A0019905451
999
DRAG LINK END , Replaced By: A0014601448, +001A0019905451
999
CLAMPING PIECE , Replaced By: A4619955044, +001A0002680272, +001N000960010027
999
CLAMP DRAG LINK END
999
GUIDE PISTON ROD GUIDE
999
BUSHING
999
WASHER PISTON ROD GUIDE
999
SEAL RING PISTON ROD GUIDE
999
SEAL RING PISTON
999
PISTON PISTON ROD GUIDE
999
PISTON CYLINDER
999
PISTON
999
ARTICULATION PIECE POWER CYLINDER TO A 000 466 13 92
999
DRAG LINK END , Replaced By: A0014602348
999
DRAG LINK END , Replaced By: A0014607848
999
DRAG LINK END L.H. THREAD TRW, Replaced By: A0024600348
999
T-FITTING POWER STEERING
999
NUT DRAG LINK END M 24X1.5
999
NUT DRAG LINK TO LEVER
999
BALL JOINT L.H. THREAD TRW
999
FITTING (PARTS KIT),LINE RUPTURE
999
FITTING DELIVERY LINE TO PUMP
999
FITTING PRESSURE LIMIT VALVE INLET,CIRCUIT I
999
SPRING
999
LOCK PISTON ROD GUIDE
999
SENDER UNIT
999
SEAL RING , Replaced By: A0189976748
999
SEAL RING PISTON ROD GUIDE
999
SEAL RING PISTON
999
SEAL RING PISTON ROD GUIDE
999
BOOT , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0004621796
999
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
999
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
999
CLAMP , Replaced By: A6739950001
999
UNIVERSAL JOINT , Replaced By: A3164600057, +002A3169900114
999
FITTING POWER STEERING PUMP
999
DRAG LINK , Replaced By: A6244601905
999
BEARING BRACKET , Replaced By: A6994600235
999
DRAG LINK , Replaced By: A6254601305
999
LINE FROM FLOW INDICATOR TO OIL TANK, CIRCUIT II
999
LINE FROM PUMP TO HIGH PRESSURE HOSE 1,5 701910
999
LINE FROM POWER STEERING PUMP AT TRANSMISSION TO CUT-IN VALVE 2,5 701910
999
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO FITTING,5 701910
999
LINE (SUCTION LINE),FROM OIL TANK TO PUMP 2,5 701910
999
LINE FROM STEERING TO PRESSURE LIMIT VALVE T-FITTING,CIRCUIT I,5 704174
999
LINE FROM PRESSURE LIMIT VALVE TO FLOW INDICATOR,CIRCUIT I,5 704174
999
LINE (RETURN LINE) FROM FLOW INDICATOR TO HOSE,5 704174
999
LINE FROM STEERING TO PRESSURE LIMIT VALVE T-FITTING,CIRCUIT II,5 704174
999
LINE FROM PRESSURE LIMIT VALVE TO HIGH PRESSURE HOSE,CIRCUIT II,5 704174
999
LINE STEERING-TO-POWER-CYLINDER DELIVERY LINE 1, NOT USED
999
LINE FROM HOSE TO PRESSURE LIMIT VALVE T-FITTING,CIRCUIT I,5 569241
999
LINE FROM PRESSURE LIMIT VALVE TO STEERING, BOTTOM,CIRCUIT I,5 569241
999
LINE FROM FLOW INDICATOR TO HIGH PRESSURE HOSE,CIRCUIT I
999
LINE FROM FLOW INDICATOR TO HIGH PRESSURE HOSE,CIRCUIT I,5 569241
999
LINE FROM STEERING TO PRESSURE LIMIT VALVE, CONNECTION: P 1,5 569241
999
LINE FROM HOSE TO PRESSURE LIMIT VALVE T-FITTING,CIRCUIT II,5 569241
999
LINE FROM PRESSURE LIMIT VALVE TO STEERING, CIRCUIT II,5 569241
999
LINE FROM STEERING TO PRESSURE LIMIT VALVE T-FITTING,CIRCUIT II
999
LINE RETURN LINE,PRESSURE LIMIT VALVE, CIRCUIT II
999
LINE (RETURN LINE),FROM HOSE TO HOSE,5 569241
999
BRACKET PRESSURE LIMIT VALVE
999
BRACKET OIL TANK, NOT USED
999
LINE (RETURN LINE),FROM HOSE TO HOSE 1,5 701910
999
LINE (RETURN LINE) FROM HOSE TO HOSE,CIRCUIT: 2,5 701910
999
BRACKET , Replaced By: A6205240340
999
BRACKET BATTERY CABLE MOUNTING
999
CLAMP DELIVERY AND SUCTION LINES TO STEERING
999
DRAG LINK , Replaced By: A6254601405
999
COTTER PIN DRAG LINK TO LEVER
999
LOCK RING PISTON ROD GUIDE
999
SCREW BRACKET TO BELL HOUSING
999
SCREW , Replaced By: N304017006020
999
SCREW CENTRAL LOCK TO CAB M 10X16
999
NUT DRAG LINK TO LEVER
999
SCREW-IN FITTING , Replaced By: N003901015003
999
CONNECTION FITTING
999
FITTING PRESSURE LIMIT,CIRCUIT II
999
FITTING STEERING GEAR DELIVERY LINE,CIRCUIT II
999
SCREW LICENSE PLATE TO BRACKET
999
HEXAGON NUT
999
NUT PUMP TO BRACKET
999
NUT , Replaced By: N913004006001
999
NUT , Replaced By: N910113010002
999
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
999
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
