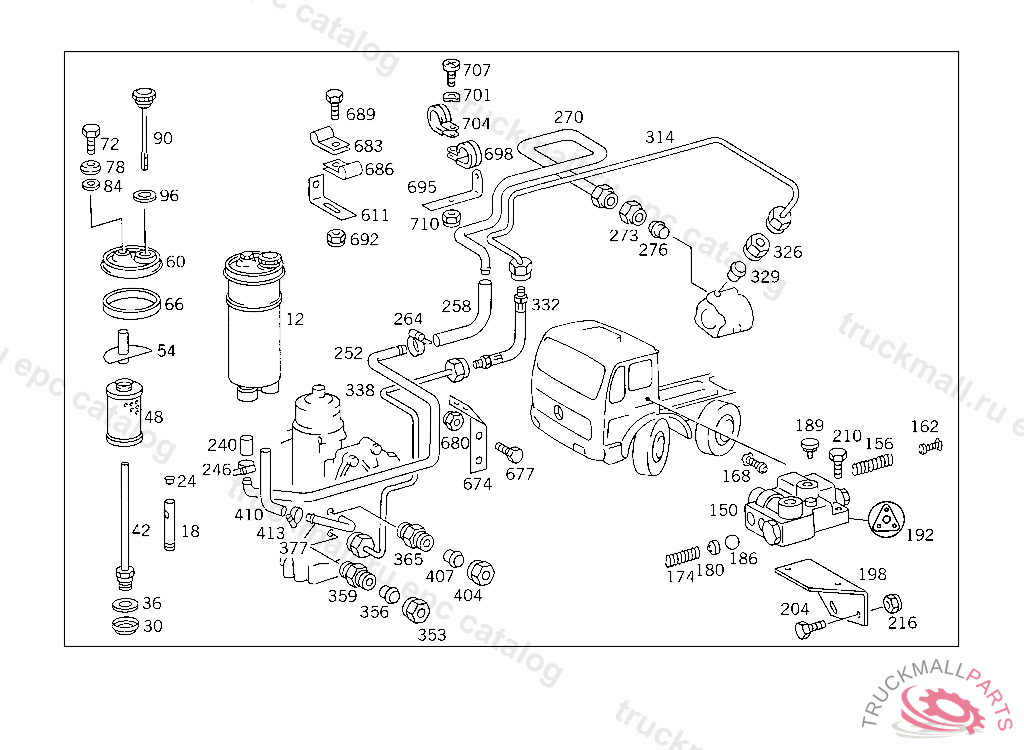

Поз.
Артикул
Описание
12
TANK OIL, 005,009 5 399648 015,018,019,025,028,029 5 401091, EXCEPT 5 400444
18
PIPETO 000 466 47 02
24
EXPANSION PLUG ENGINE LEFT AND RIGHT SUPPORTS
30
VALVE DISC , 993034
36
SPRING , 993034
42
PIPETO 000 466 47 01
48
FILTER , 993034
54
SPACER TUBETO 000 466 47 02
60
COVERTO 000 466 47 02
66
GASKET , 993034
66
GASKET , Replaced By: A0004660580
72
SCREW , Replaced By: N304017008016
72
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
78
WASHERTO 000 466 47 02
84
WASHER , 993034
90
FILLER CAPTO 000 466 47 02
96
GASKET , 993034
150
VALVE (CUT-IN VALVE),AT FRAME SIDE MEMBER IN FRONT OF STEERING BOX, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
156
SPRING
162
VALVE
168
VALVE
174
SPRING
180
WASHER
186
BALL
189
SENDER UNIT STEERING FAILURE
189
INDICATOR , Replaced By: A0105429317
192
GASKET KIT VALVE
198
BRACKET CUT-IN VALVE
240
HOSE RETURN, FROM STEERING TO OIL TANK, ORDER BY THE METER
246
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
246
CLAMP , Replaced By: N000000000667
252
LINE FROM OIL TANK TO HOSE, NOT USED
258
HOSE RETURN, FROM STEERING TO OIL TANK, ORDER BY THE METER
264
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
264
CLAMP , Replaced By: N000000000667
270
LINE (SUCTION LINE),FROM OIL TANK TO PUMP
273
UNION NUT LINE CONNECTION, Replaced By: N000000006243
276
GLAND , Replaced By: A0019901267
276
SEAL CONE LINE CONNECTION
314
LINE FROM POWER STEERING PUMP TO HOSE
326
UNION NUT LINE CONNECTION, Replaced By: N000000006239
329
SEAL CONE LINE CONNECTION
329
GLAND , Replaced By: A0019901967
332
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
332
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
332
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
338
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO FITTING
353
UNION NUT LINE CONNECTION, Replaced By: N000000006239
356
SEAL CONE LINE CONNECTION
356
GLAND , Replaced By: A0019901967
359
SCREW-IN FITTING DELIVERY LINE TO PUMP
365
SCREW-IN FITTING RETURN, FROM STEERING TO OIL TANK
377
LINE FROM STEERING TO OIL TANK
404
UNION NUT LINE CONNECTION
407
GLAND LINE CONNECTION
410
HOSE , NOT USED
410
HOSE , Replaced By: A6999974082
410
HOSE , Replaced By: A3859971682
413
CLAMP HOSE TO FITTING AND TO OIL TANK
413
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
611
BRACKET COMPRESSED AIR LINE TO FOUR-CIRCUIT PROTECTIVE VALVE,5 720506
674
BRACKET DELIVERY AND SUCTION LINES TO FRAME
674
BRACKET , Replaced By: A6564660040
677
SCREW , Replaced By: N308676012026
677
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
677
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
680
NUT SUPPORT TO SIDE MEMBER
683
CLAMP DELIVERY AND SUCTION LINES TO STEERING
683
CLAMP LINE MOUNTING
683
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
683
CLAMP , Replaced By: A6739950001
683
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
686
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
689
SCREW , Replaced By: N304017006020
689
SCREW , Replaced By: N304017006016
689
SCREW PUMP TO BRACKET
689
SCREW CAB FLOOR COVERING M 6X25
689
SCREW LICENSE PLATE TO BRACKET
692
NUT PUMP TO BRACKET
692
NUT , Replaced By: N913004006001
695
BRACKET , Replaced By: A6205244040
695
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
698
CLAMP LINE MOUNTING
698
CLAMP , Replaced By: N916016015202
701
SPRING WASHER LICENSE PLATE TO BRACKET
704
CLAMP ADDITIONAL WORK ON FRAME MOUNTED CABLE HARNESS
707
SCREW DELIVERY AND SUCTION LINES TO BRACKET
710
NUT , Replaced By: N913004006001
710
NUT PUMP TO BRACKET
999
NUT , Replaced By: A0002680472
999
DRAG LINK END , Replaced By: A0004602848
999
CLAMPING PIECE , Replaced By: A4619955044, +001A0002680272, +001N000960010027
999
CLAMP DRAG LINK END
999
GUIDE PISTON ROD GUIDE
999
BUSHING
999
WASHER PISTON ROD GUIDE
999
SEAL RING PISTON ROD GUIDE
999
SEAL RING PISTON
999
PISTON PISTON ROD GUIDE
999
PISTON CYLINDER
999
PISTON
999
ARTICULATION PIECE POWER CYLINDER TO A 000 466 13 92
999
ELBOW FITTING DELIVERY LINE TO PUMP
999
NUT DRAG LINK END M 24X1.5
999
NUT DRAG LINK TO LEVER
999
FITTING DELIVERY LINE TO PUMP
999
SPRING
999
LOCK PISTON ROD GUIDE
999
SENDER UNIT
999
SEAL RING , Replaced By: A0189976748
999
SEAL RING PISTON ROD GUIDE
999
SEAL RING PISTON
999
SEAL RING PISTON ROD GUIDE
999
BOOT , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0004621796
999
UNIVERSAL JOINT , Replaced By: A3164600057, +002A3169900114
999
DRAG LINK , Replaced By: A6244601905
999
DRAG LINK , Replaced By: A6244601505
999
BEARING BRACKET , Replaced By: A6994600235
999
LINE FROM STEERING TO PRESSURE LIMIT VALVE T-FITTING,CIRCUIT I,5 704174
999
LINE FROM PRESSURE LIMIT VALVE TO FLOW INDICATOR,CIRCUIT I,5 704174
999
LINE (RETURN LINE) FROM FLOW INDICATOR TO HOSE,5 704174
999
LINE FROM STEERING TO PRESSURE LIMIT VALVE T-FITTING,CIRCUIT II,5 704174
999
LINE FROM PRESSURE LIMIT VALVE TO HIGH PRESSURE HOSE,CIRCUIT II,5 704174
999
BRACKET OIL TANK, NOT USED
999
COTTER PIN DRAG LINK TO LEVER
999
LOCK RING PISTON ROD GUIDE
999
NUT DRAG LINK TO LEVER
999
FITTING PRESSURE LIMIT,CIRCUIT II
999
HEXAGON NUT
999
NUT , Replaced By: N910113010002
