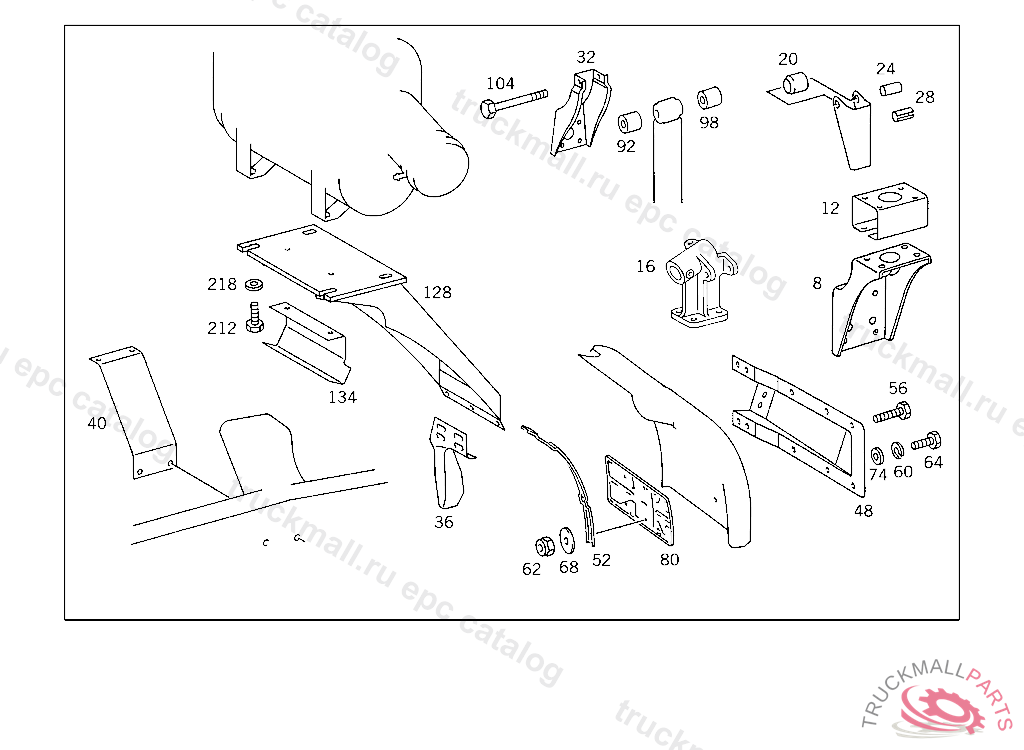

Поз.
Артикул
Описание
8
CONSOLE CAB SUSPENSION
8
CONSOLE , Replaced By: A3873170001
12
BRACKET
16
BEARING BRACKET FENDER BRACKET TO CLAMP,LEFT
16
BEARING BRACKET FENDER BRACKET TO CLAMP,RIGHT
20
BUSHING LATERAL GUIDE OF CAB
24
SPACER TUBE LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS
28
CLAMPING SLEEVE LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS
32
BRACKET RIGHT SHOCK ABSORBER
36
GUIDE RIGHT
40
GUIDE LEFT
48
BRACKET LEFT FENDER
48
BRACKET LEFT FENDER
48
BRACKET FENDER TO BEARING BRACKET,LEFT
52
FENDER STAY
56
SCREW SUPPORT TO FENDER
56
SCREW , Replaced By: N304017008018
60
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
62
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
62
NUT , Replaced By: N913004008001
64
SCREW , Replaced By: N304017008027
64
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
68
WASHER , Replaced By: A6312670276
68
WASHER FENDER BRACKET TO FENDER, Replaced By: A0049902582
74
WASHER , Replaced By: N000125008443
74
WASHER EXHAUST MUFFLER TO STRAP
80
REINFORCEMENT
80
REINFORCEMENT , Replaced By: A3818811016
92
SPACER TUBE TRAILER COUPLING TO REAR CROSS MEMBER
98
SPACER TUBE SHOCK ABSORBER TO BRACKET
104
SCREW SHOCK ABSORBER TO TOP BRACKET
104
SCREW ,5 587352, Replaced By: N308765016016
104
HEXAGON HEAD BOLT PISTON TO AIR-SPRING-BELLOWS SUPPORT,5 587352
128
SUPPORT AIR CLEANER
134
BRACKET AIR CLEANER
212
SCREW SUPPORT TO CROSS MEMBER M 10X28
218
WASHER RADIATOR TO RUBBER MOUNTING
999
LINE SUCTION LINE TO AIR INTAKE PIPE
