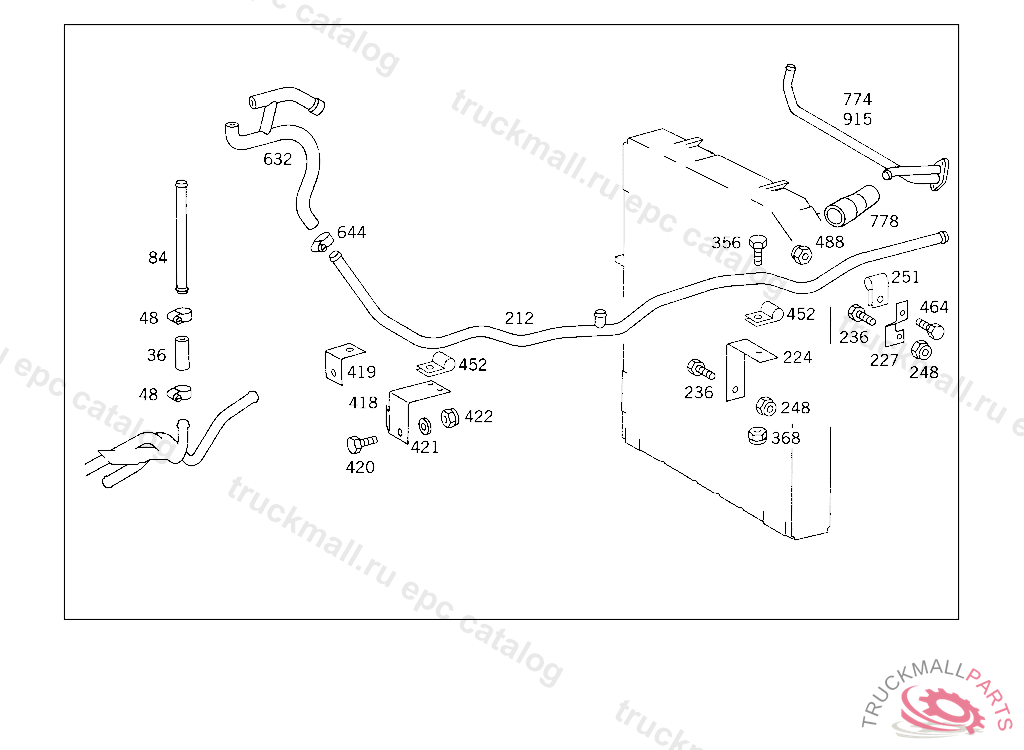

Поз.
Артикул
Описание
36
HOSE FROM BUBBLE SEPARATOR TO HEATING PIPE 18X27 MM, ORDER BY THE METER
48
CLAMP , Replaced By: N000000000667
48
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
84
BREATHER PIPE , Replaced By: A0004290301
84
LINE FROM EXPANSION TANK TO HEATING PIPE 8X1 MM, ORDER BY THE METER
212
LINE FROM VALVE TO PUMP
212
LINE FROM VALVE TO PUMP,5 537270
212
LINE FROM VALVE TO PUMP
212
LINE FROM VALVE TO PUMP,5 561857
212
LINE FROM VALVE TO PUMP,5 561856
224
BRACKET COMPRESSED AIR LINE TO LEFT SIDE MEMBER
224
BRACKET , Replaced By: A3812711340
227
BRACKET , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6485060240
227
BRACKET HEATING PIPE TO FRAME,5 561856
236
SCREW BRACKET TO LEFT SIDE MEMBER
236
SCREW CONSOLE TO SIDE MEMBER
236
SCREW PIPE CLAMP
236
SCREW BRACKET TO SPRING BRACKET AND TO CROSS MEMBER,5 953233K 027550
236
SCREW , Replaced By: N304017008021
248
NUT , Replaced By: N913004008001
248
NUT , Replaced By: N910113014001
248
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
248
NUT SUPPORT TO SIDE MEMBER
248
NUT BRACKET TO SIDE MEMBER
251
CLAMP FEED LINE TO THERMOSTAT
356
SCREW END PIECE TO EXHAUST PIPE M 10X25
356
SCREW EXHAUST PIPE TO BRACKET
368
NUT , Replaced By: N910113010000
368
NUT STRAP TO BRACKET
418
BRACKET FEED LINES TO SUBSTRUCTURE
418
BRACKET FEED LINES TO SUBSTRUCTURE
419
BRACKET FUEL LINE TO BELL HOUSING
419
BRACKET BRACKET TO ENGINE,REAR
419
BRACKET , Replaced By: A6454310740
419
ANGLE LINE MOUNTING
420
SCREW COVER PLATE TO COVER PLATE M 6 X 12
420
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
420
SCREW PUMP TO BRACKET
420
SCREW , Replaced By: N304017006018
420
SCREW , Replaced By: N304017006016
420
SCREW , Replaced By: N304017008016
421
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
421
WASHER COMPRESSED AIR LINE TO BRACKET
421
WASHER SPARE WHEEL CARRIER
422
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
422
NUT PUMP TO BRACKET
422
NUT , Replaced By: N913004006001
422
NUT , Replaced By: N913004008001
452
CLAMP FEED LINE TO THERMOSTAT
464
SCREW COVER PLATE TO BRACKET
464
SCREW COVER PLATE TO COVER PLATE M 6 X 12
464
SCREW , Replaced By: N304017006018
488
NUT , Replaced By: N913004006001
488
NUT PUMP TO BRACKET
632
HOSE FROM RECIRCULATING PUMP TO HEATING PIPE
644
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
644
CLAMP , Replaced By: N000000000667
774
LINE , Replaced By: A6525003172
774
LINE FROM ENGINE TO EXPANSION TANK,5 944085
774
LINE FROM ENGINE TO EXPANSION TANK,5 944084
778
HOSE FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR
778
HOSE FEED LINE TO RADIATOR,5 944085
915
LINE (DE-AERATION LINE) FROM EXPANSION TANK TO ENGINE,5 537270
915
LINE (DE-AERATION LINE) FROM EXPANSION TANK TO ENGINE
915
LINE (DE-AERATION LINE) FROM EXPANSION TANK TO ENGINE,5 537269
915
FLANGE , Replaced By: A6995000579
915
FLANGE , Replaced By: A6255000979
915
LINE
915
LINE (DE-AERATION LINE) FROM EXPANSION TANK TO ENGINE,5 301949
915
LINE (DE-AERATION LINE) FROM EXPANSION TANK TO ENGINE
915
LINE (DE-AERATION LINE) FROM EXPANSION TANK TO ENGINE,K 003769
915
LINE FROM ENGINE TO EXPANSION TANK,5 944085
915
FLANGE (DE-AERATION LINE) FROM EXPANSION TANK TO ENGINE
999
NUT EXHAUST PIPE TO SIDE MEMBER
999
SCREW , Replaced By: N910105010009
999
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
999
FLANGE (BLIND FLANGE)
999
BRACKET HEATING PIPE TO FAN SHROUD BRACKET
999
BRACKET , Replaced By: A6454310740
999
BREATHER PIPE (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK
999
BRACKET DE-AERATION LINE TO CAB
999
LINE HEATING AND BREATHING
999
LINE HEATING PIPE
999
LINE HEATING PIPE
999
LINE (HEATING LINE),FROM ENGINE TO HEATER
999
LINE , NOT USED
999
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
999
HOSE FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR
999
HOSE FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR
999
HOSE FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR
999
BRACKET ENGINE CABLE HARNESS BRANCH-OFF,5 094166
999
BRACKET AT BRACKET
999
LINE
999
LINE HEATING AND BREATHING
999
LINE HEATING AND BREATHING
999
BREATHER PIPE FROM ENGINE TO EXPANSION TANK
999
LINE HEATING AND BREATHING
999
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
999
LINE HEATING FEED,K 004002
999
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
999
BRACKET HEATING PIPE TO OIL COOLER
999
BRACKET HEATING PIPE
999
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
999
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
999
BREATHER PIPE FROM ENGINE TO EXPANSION TANK
999
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
999
LINE HEATING WATER,5 534803
999
LINE HEATING AND BREATHING
999
LINE HEATING AND BREATHING,K 096749
999
LINE HEATING LINES
999
LINE HEATING WATER
999
LINE HEATING LINES,K 003669
999
LINE DE-AERATION PIPE TO ENGINE
999
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
999
BRACKET FEED LINE TO THERMOSTAT
999
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE, TO BE ADAPTED DURING ASSEMBLY
999
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE,K 003669
999
BRACKET HEATING PIPE
999
BRACKET ENGINE/ENGINE-SPEED-LIMITATION CABLEHARNESS PLUG-CONNECTION
999
BREATHER PIPE FROM ENGINE TO EXPANSION TANK,5 528984
999
BRACKET BUBBLE SEPARATOR
999
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR,K 068297
999
SCREW , Replaced By: N304017008021
999
SCREW BRACKET TO SIDE MEMBER M 12X40
999
PIN BRACKET TO CONSOLE
999
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
999
NUT END PIECE TO EXHAUST PIPE
