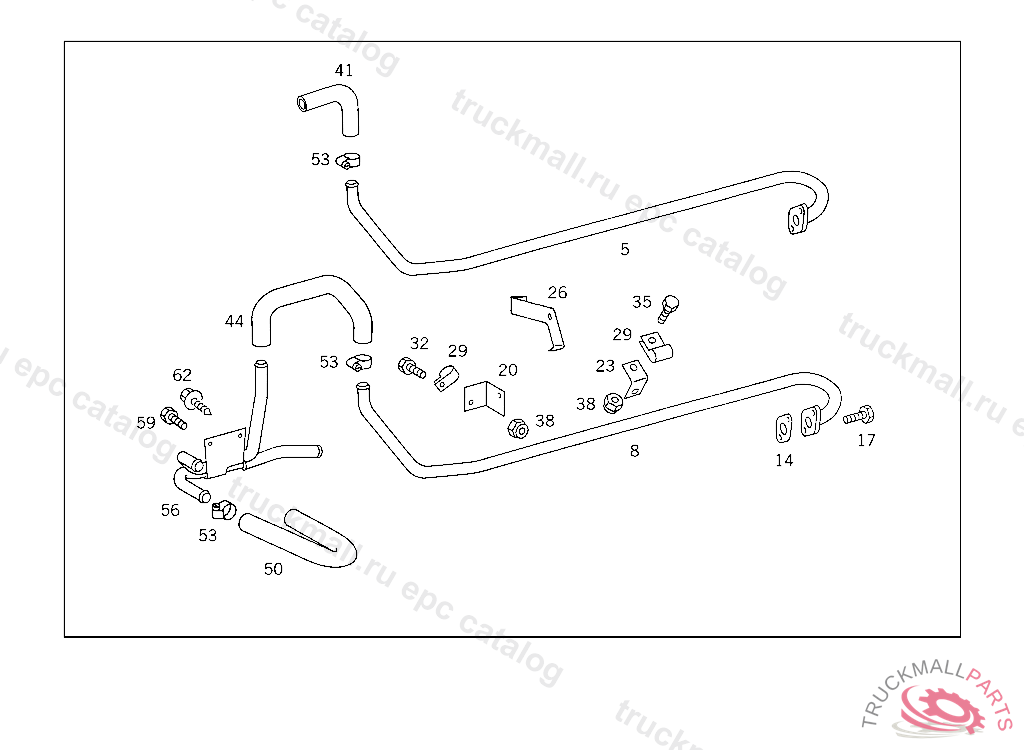

Поз.
Артикул
Описание
5
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
5
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
14
GASKET HEATING PIPE TO ENGINE
17
SCREW , Replaced By: N304017008021
17
SCREW PIPE CLAMP
20
BRACKET FEED LINE TO THERMOSTAT
29
CLAMP FEED LINE TO THERMOSTAT
32
SCREW COVER PLATE TO BRACKET
38
NUT PUMP TO BRACKET
38
NUT , Replaced By: N913004006001
41
HOSE FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR
50
HOSE FROM HEATING PIPE AT RADIATOR TO CAB HEATING PIPE
50
HOSE FROM HEATING PIPE AT RADIATOR TO CAB HEATING PIPE
53
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
53
CLAMP , Replaced By: N000000000667
56
LINE FEED AND RETURN LINES TO HEATING
56
LINE FEED AND RETURN LINES TO HEATING
59
SCREW PUMP TO BRACKET
