Поз.
Артикул
Описание

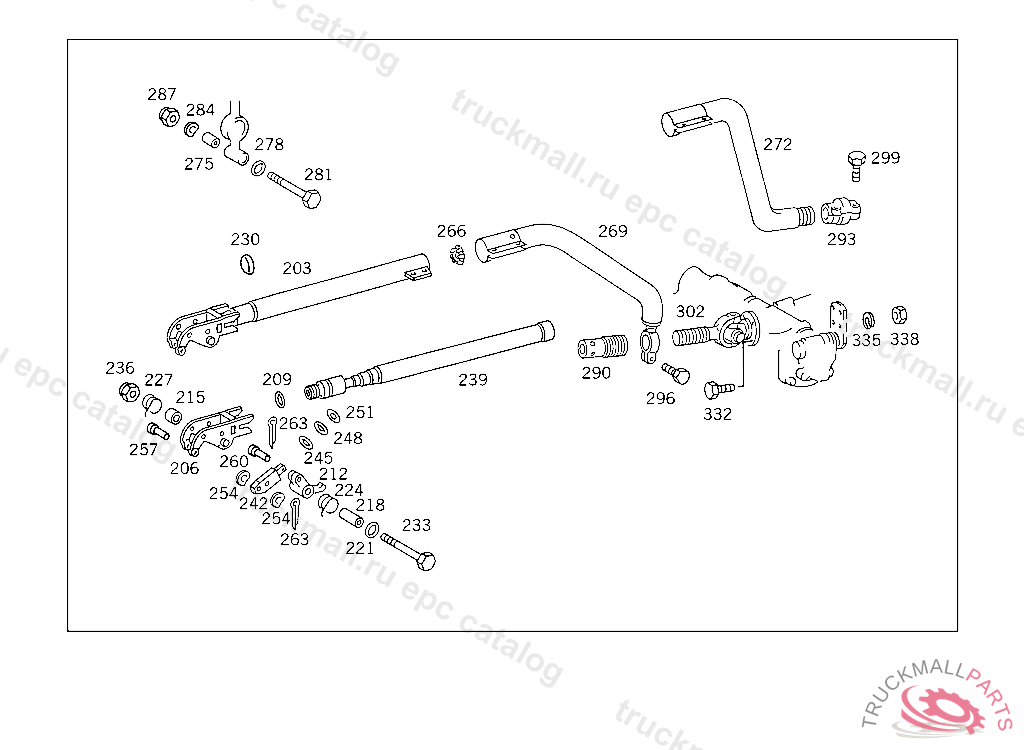

203
SHIFTING ROD (TELESCOPIC SHIFTING ROD)
206
ROD END HYDRAULIC RELEASE
209
SEAL RING HYDRAULIC RELEASE
212
PAWL SHIFTING ROD,5 443048
215
BUSHING PAWL TO ROD END,5 443048
215
BUSHING PAWL TO ROD END,5 443048
218
SPACER TUBE SHIFTING ROD TO SHIFT LEVER
221
ROUND CORD RING. SEAL RING ROD END
224
SPRING ROD END
227
SPRING ROD END
230
EXPANSION PLUG ROD END
233
SCREW SHIFTING ROD TO SHIFT LEVER
236
NUT STRAP TO BRACKET
239
SHIFTING TUBE (TELESCOPIC TUBE)
239
SHIFTING TUBE (TELESCOPIC TUBE)
242
SHIFTING CYLINDER HYDRAULIC RELEASE WABCO
242
SHIFTING CYLINDER HYDRAULIC RELEASE TECHNOMATIK
245
SEAL RING PISTON RINGS WABCO
248
SEAL RING SCREW FITTING WABCO
251
SEAL RING OUTSIDE WABCO
254
SPRING WASHER SHIFTING CYLINDER TO YOKE
257
PIN SHIFTING CYLINDER TO YOKE 8X45 MM
260
PIN SHIFTING CYLINDER TO PAWL 8X20 MM
263
COTTER PIN LEVER TO ROD
263
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
266
WASHER BETWEEN THE SHIFTING RODS
272
ROD REAR
275
SPACER TUBE SHIFTING ROD TO SHIFT LEVER
278
ROUND CORD RING. SEAL RING ROD END
281
SCREW , Replaced By: N000933010192
281
SCREW SHIFTING ROD TO SHIFT LEVER
284
SPRING WASHER SHIFTING ROD TO SHIFT LEVER
287
NUT STRAP TO BRACKET
287
NUT , Replaced By: N910113010000
296
SCREW CONNECTOR TO REAR SHIFTING ROD
