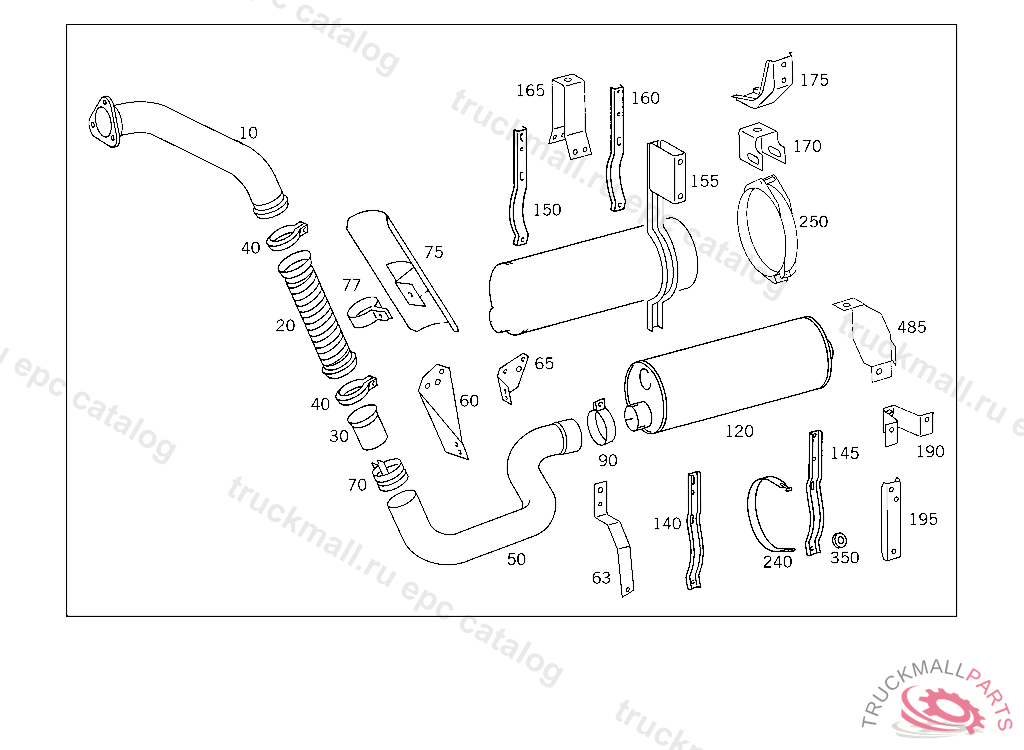

Поз.
Артикул
Описание
10
CONNECTOR (CONNECTING PIPE),RIGHT FRONT
10
CONNECTOR FRONT EXHAUST PIPE,RIGHT
10
CONNECTOR (CONNECTING PIPE),LEFT FRONT
10
CONNECTOR (CONNECTING PIPE),RIGHT FRONT
10
CONNECTOR FRONT EXHAUST PIPE,LEFT
10
CONNECTOR (CONNECTING PIPE),LEFT FRONT
10
CONNECTOR (CONNECTING PIPE),RIGHT FRONT
10
CONNECTOR (CONNECTING PIPE),LEFT FRONT
20
FLEXIBLE METAL TUBE FRONT LEFT
20
FLEXIBLE METAL TUBE FRONT EXHAUST PIPE FRONT PART TO REAR PART
20
FLEXIBLE METAL TUBE CONNECTOR
30
COLLAR (SLIDING COLLAR)
30
COLLAR EXHAUST LINE FLEXIBLE METAL TUBE
30
COLLAR FRONT EXHAUST PIPE FRONT PART TO REAR PART
40
CLAMP FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
40
CLAMP FLEXIBLE METAL TUBE TO EXHAUST PIPE
40
CLAMP FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
50
EXHAUST PIPE EXHAUST MUFFLER,RIGHT
50
EXHAUST PIPE EXHAUST MUFFLER,LEFT
50
EXHAUST PIPE EXHAUST MUFFLER,RIGHT
50
EXHAUST PIPE EXHAUST MUFFLER,LEFT
50
EXHAUST PIPE EXHAUST MUFFLER,RIGHT
50
EXHAUST PIPE EXHAUST MUFFLER,LEFT
50
EXHAUST PIPE EXHAUST MUFFLER,RIGHT
50
EXHAUST PIPE EXHAUST MUFFLER,LEFT
50
EXHAUST PIPE EXHAUST MUFFLER,RIGHT
50
EXHAUST PIPE EXHAUST MUFFLER,LEFT
50
EXHAUST PIPE EXHAUST MUFFLER,RIGHT
50
EXHAUST PIPE EXHAUST MUFFLER,RIGHT
50
EXHAUST PIPE EXHAUST MUFFLER,RIGHT
50
EXHAUST PIPE EXHAUST MUFFLER,RIGHT
50
EXHAUST PIPE EXHAUST MUFFLER,LEFT
50
INTERMEDIATE PIECE EXHAUST MUFFLER,LEFT
50
EXHAUST PIPE EXHAUST MUFFLER,LEFT
50
EXHAUST PIPE EXHAUST MUFFLER,LEFT
50
EXHAUST PIPE EXHAUST MUFFLER,LEFT
50
EXHAUST PIPE EXHAUST MUFFLER,LEFT
50
EXHAUST PIPE EXHAUST MUFFLER,RIGHT
50
EXHAUST PIPE EXHAUST MUFFLER,LEFT
50
EXHAUST PIPE EXHAUST MUFFLER,LEFT
50
EXHAUST PIPE EXHAUST MUFFLER,LEFT
50
INTERMEDIATE PIECE EXHAUST MUFFLER,RIGHT
50
EXHAUST PIPE EXHAUST MUFFLER,RIGHT
50
EXHAUST PIPE EXHAUST MUFFLER,RIGHT
50
EXHAUST PIPE EXHAUST MUFFLER,RIGHT
50
EXHAUST PIPE FROM SLIDING PIECE TO EXHAUST MUFFLER, RIGHT
50
EXHAUST PIPE EXHAUST MUFFLER,LEFT
50
EXHAUST PIPE EXHAUST MUFFLER,RIGHT
60
BRACKET LEFT
60
BRACKET RIGHT EXHAUST PIPE
60
BRACKET RIGHT, TO BE ADAPTED DURING ASSEMBLY
60
BRACKET LEFT EXHAUST PIPE
60
BRACKET RIGHT EXHAUST PIPE
60
BRACKET LEFT EXHAUST PIPE
60
BRACKET LEFT EXHAUST PIPE
60
BRACKET LEFT EXHAUST PIPE
60
BRACKET RIGHT EXHAUST PIPE
60
BRACKET RIGHT EXHAUST PIPE
63
BRACKET EXHAUST PIPE TO SIDE MEMBER,FRONT, SIMPLE PART-PLEASE HAVE SHOP MADE
65
BRACKET LEFT EXHAUST PIPE
65
BRACKET RIGHT EXHAUST PIPE
70
CLAMP EXHAUST PIPE TO BRACKET
70
CLAMP AT CROSS MEMBER
70
CLAMP FLEXIBLE METAL TUBE TO EXHAUST PIPE
75
PROTECTIVE PLATE FUEL TANK
77
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
90
CLAMP , Replaced By: N071555094502
90
CLAMP , Replaced By: A6554920340
90
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
90
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
90
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
90
CLAMP EXHAUST PIPE
120
EXHAUST MUFFLER
120
EXHAUST MUFFLER
120
EXHAUST MUFFLER
120
EXHAUST MUFFLER
120
EXHAUST MUFFLER
140
BRACKET EXHAUST MUFFLER,LEFT FRONT
145
BRACKET EXHAUST MUFFLER,LEFT REAR
150
BRACKET EXHAUST MUFFLER,RIGHT FRONT
155
BRACKET EXHAUST MUFFLER TO SIDE MEMBER, TO BE ADAPTED DURING ASSEMBLY
160
BRACKET EXHAUST MUFFLER,RIGHT REAR
160
BRACKET EXHAUST MUFFLER,RIGHT REAR
165
BRACKET EXHAUST MUFFLER
170
BRACKET EXHAUST MUFFLER
170
BRACKET REAR EXHAUST PIPES
170
BRACKET EXHAUST MUFFLER
170
BRACKET EXHAUST MUFFLER
175
CONSOLE EXHAUST MUFFLER,FRONT
175
CONSOLE REAR EXHAUST MUFFLER 200 MM
190
BRACKET REAR EXHAUST MUFFLER
195
BRACKET EXHAUST MUFFLER
240
STRAP PARTICLE FILTER
240
STRAP EXHAUST MUFFLER TO BRACKET
240
STRAP PARTICLE FILTER
240
STRAP , Replaced By: A6174900142
240
STRAP , Replaced By: A6554900942
250
STRAP EXHAUST MUFFLER TO BRACKET
250
STRAP EXHAUST MUFFLER TO BRACKET
350
SPHERICAL WASHER STRAP TO BRACKET
485
PROTECTIVE PLATE TAIL PIPE
999
EXHAUST PIPE FROM CONNECTION FITTING TO EXHAUST MUFFLER
999
BRACKET EXHAUST PIPE TO SIDE MEMBER,REAR, SIMPLE PART-PLEASE HAVE SHOP MADE
999
FRONT EXHAUST PIPE FROM CONNECTION FITTING TO EXHAUST MUFFLER
999
EXHAUST PIPE EXHAUST MUFFLER,RIGHT
999
REAR EXHAUST PIPE EXHAUST MUFFLER,LEFT
999
REAR EXHAUST PIPE EXHAUST MUFFLER,RIGHT
999
REAR EXHAUST PIPE
999
REAR EXHAUST PIPE REAR RIGHT
