Поз.
Артикул
Описание

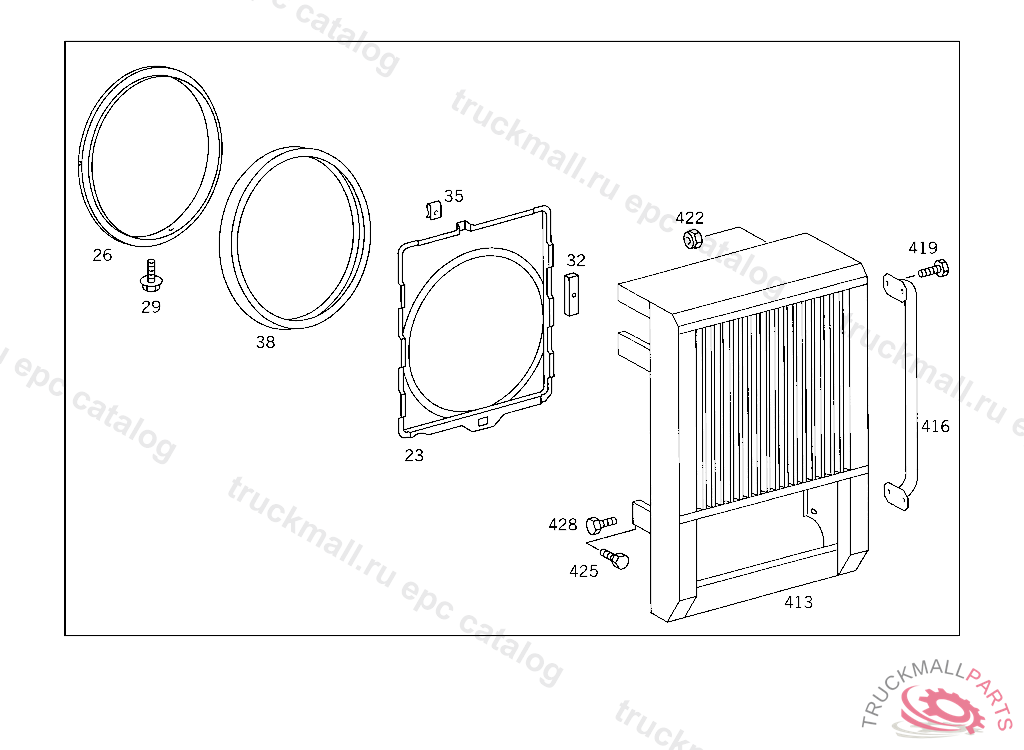

23
FAN SHROUD RADIATOR
26
AIR BAFFLE RADIATOR
29
SCREW AIR BAFFLE TO RADIATOR BASE FRAME, Replaced By: A0009906404
29
SCREW COVER TO BELL HUB
32
DETENT FAN SHROUD TO RADIATOR
35
LOCK PULL TO FASTENER
35
LOCK , Replaced By: N912002008003
38
BOOT FAN SHROUD TO FAN RING
413
RADIATOR GRILL SHELL
416
BRACKET (GRAB HANDLE)
419
SCREW , Replaced By: N304017008021
419
SCREW PIPE CLAMP
422
NUT , Replaced By: N913004008001
422
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
422
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
425
SCREW , Replaced By: N304017008016
425
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
428
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
