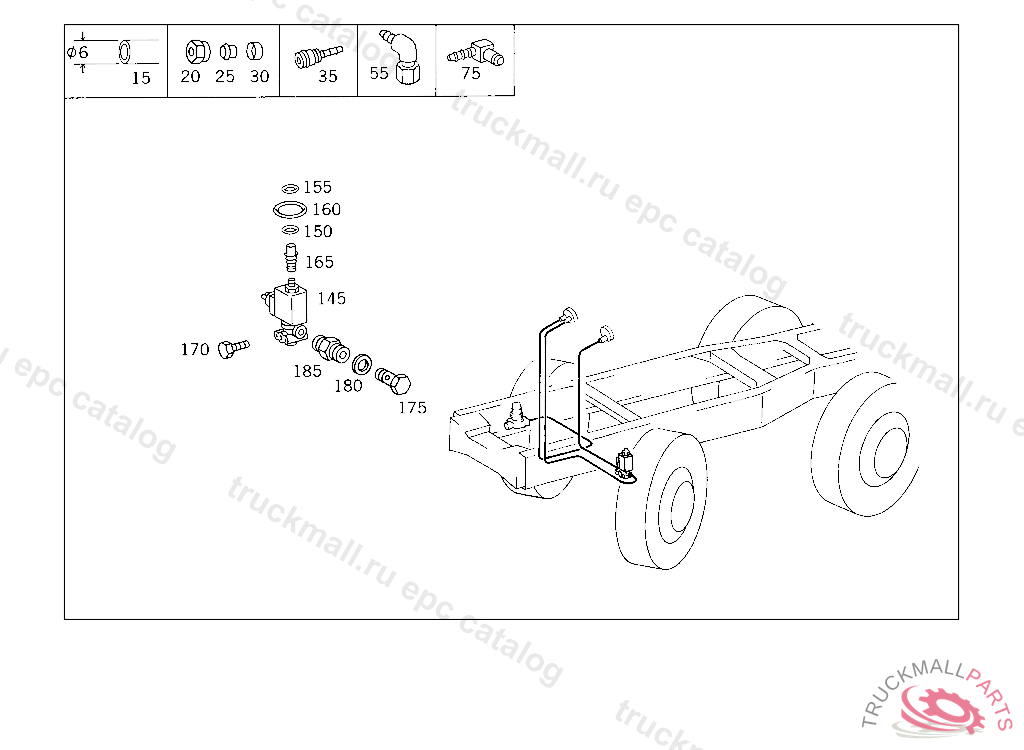

Поз.
Артикул
Описание
15
PLASTIC PIPE RISING PIPE 4X6 MM
15
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
20
UNION NUT
25
GLAND , Replaced By: A0019901667
25
SEAL CONE
30
SLEEVE LEAK LINE
35
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
55
CONNECTOR DISTRIBUTOR TO CAB
55
CONNECTOR DISTRIBUTOR TO CAB
75
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
145
VALVE (3/2-WAY SOLENOID VALVE), PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
150
SEAL RINGWABCO
155
SEAL RINGWABCO
160
SEAL RINGWABCO
165
VALVE PART
170
SCREW AT SIDE MEMBER,REAR M 8X135
170
SCREW REAR AXLE REGULATING SOLENOID VALVE M 8X95
175
HOLLOW SCREW HEATING CONNECTION
175
SEAL RING LINE CONNECTION
180
SEAL RING LINE CONNECTION
180
HOLLOW SCREW LINE CONNECTION
185
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
185
BREATHER , Replaced By: A3933280065
999
TANK RECESS. T-FITTING LINE CONNECTION
999
SCREW. UNION SCREW LINE CONNECTION
999
CONNECTOR HOSE WIDTH, 9 MM,TO M 22
999
CONNECTOR HOSE WIDTH, 6 MM, TO M22
999
T-FITTING HOSE WIDTH, 9 MM,TO M 22
