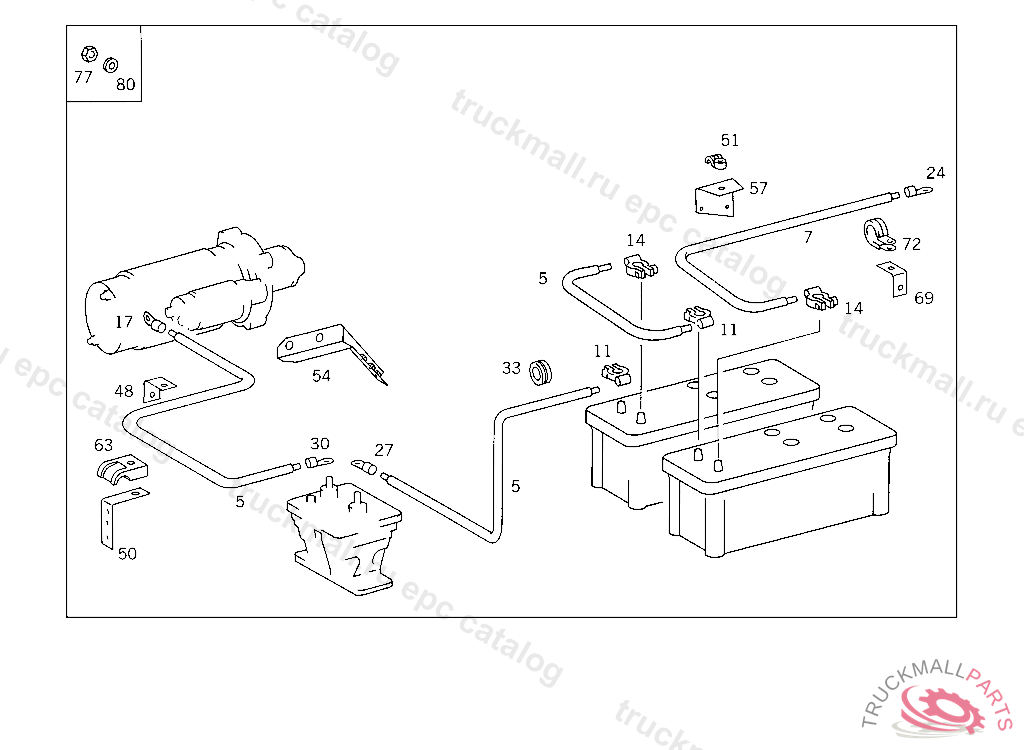

Поз.
Артикул
Описание
5
ELECTRIC CABLE FROM BATTERY POS.POLE TO STARTING MOTOR 70 MM2, ORDER BY THE METER
7
ELECTRIC CABLE (GROUND CABLE)
11
SOLDERING TERMINAL BATTERY POS. POLE 70 MM2
14
SOLDERING TERMINAL BATTERY NEG. POLE 70 MM2
17
CABLE SHOE BATTERY CABLE 10-70 MM
24
CABLE SHOE BATTERY CABLE 10-70 MM
24
CABLE SHOE BATTERY CABLE 12-70 MM
24
CABLE SHOE BATTERY CABLE
24
CABLE SHOE BATTERY CABLE
27
CABLE SHOE BATTERY CABLE TO BATTERY MASTER SWITCH
30
CABLE SHOE BATTERY CABLE TO BATTERY MASTER SWITCH
33
GROMMET BATTERY CABLE TO BATTERY MASTER SWITCH
33
GROMMET BATTERY CABLE TO BATTERY MASTER SWITCH
48
ANGLE LINE MOUNTING
50
BRACKET BATTERY CABLE MOUNTING
50
BRACKET BATTERY CABLE TO TRANSMISSION
50
BRACKET BATTERY CABLE TO FRAME SIDE MEMBER NEAR TRANSMISSION
50
BRACKET , Replaced By: A6525460843
51
CLAMP BATTERY CABLE TO FRAME SIDE MEMBER NEAR TRANSMISSION
54
BRACKET BATTERY CABLE TO CROSS MEMBER
57
BRACKET BATTERY CABLE TO CROSS MEMBER
63
CLAMPING PIECE BATTERY CABLE MOUNTING
69
ANGLE LINE MOUNTING
72
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
77
SCREW CONNECTION SWITCH BOX
77
NUT SWITCH BOX
80
SEAL RING SWITCH BOX
80
SEAL RING SWITCH BOX
999
NEG. CABLE FROM FRAME CROSS MEMBER TO CAB
999
RAIL BATTERY CABLE TO ENGINE MOUNTING
999
DIODE ,K 182153
999
CABLE SHOE FROM BATTERY POS. POLE TO RELAY AND TO NUMMEK BOX
999
ELECTRIC CABLE , Replaced By: A6735460013
