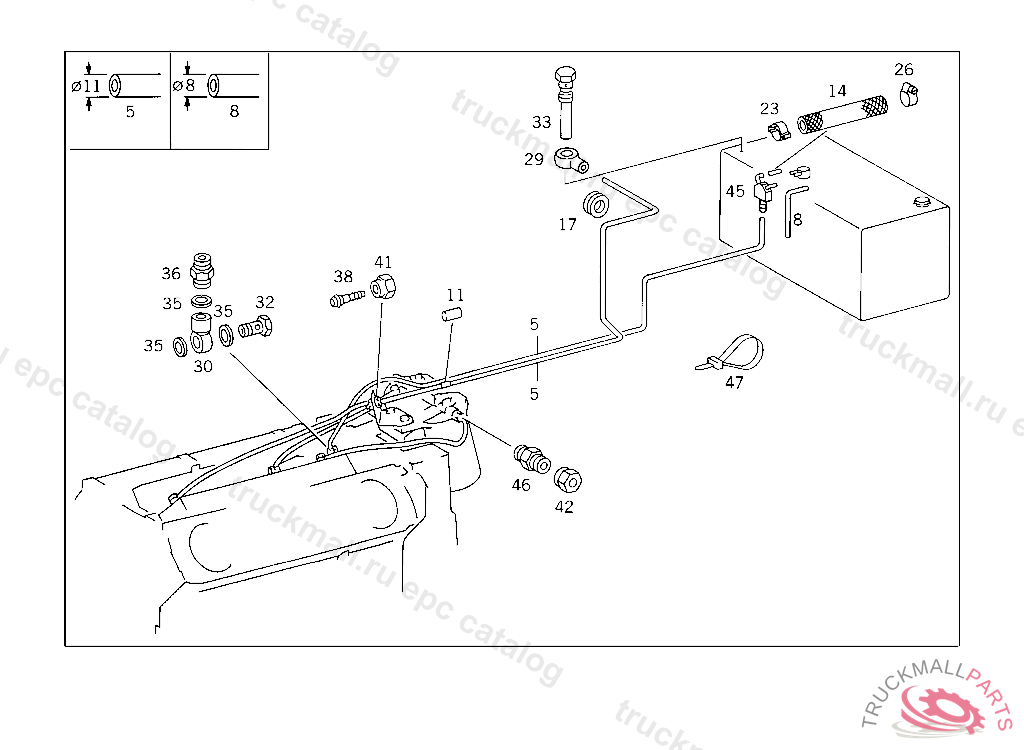

Поз.
Артикул
Описание
5
HOSE FEED LINE 12X15 MM, ORDER BY THE METER
5
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
8
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
11
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
14
HOSE LEAK LINE
23
CLIP LEAK LINE
26
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
26
CLAMP , Replaced By: N000000000665
29
BANJO UNION HOSE WIDTH, / I.D., 8/22 MM
30
BANJO UNION FUEL LINES AND BREATHING
32
HOLLOW SCREW FUEL LINE TO FEED PUMP
32
HOLLOW SCREW , Replaced By: N915036010108
33
HOLLOW SCREW FUEL LINES AND BREATHING
35
SEAL RINGTO 000 553 03 05,000 553 18 05,
35
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
36
FITTING FUEL LINE TO HAND PUMP
38
FITTING RETURN
38
FITTING FROM ENGINE TO RADIATOR
41
UNION NUT FEED LINE
42
UNION NUT FEED LINE
45
INTERMEDIATE PIECE FEED LINE
46
CONNECTOR FEED LINE
47
LOOM TIE LINE MOUNTING 280 MM
47
LOOM TIE LINE MOUNTING
