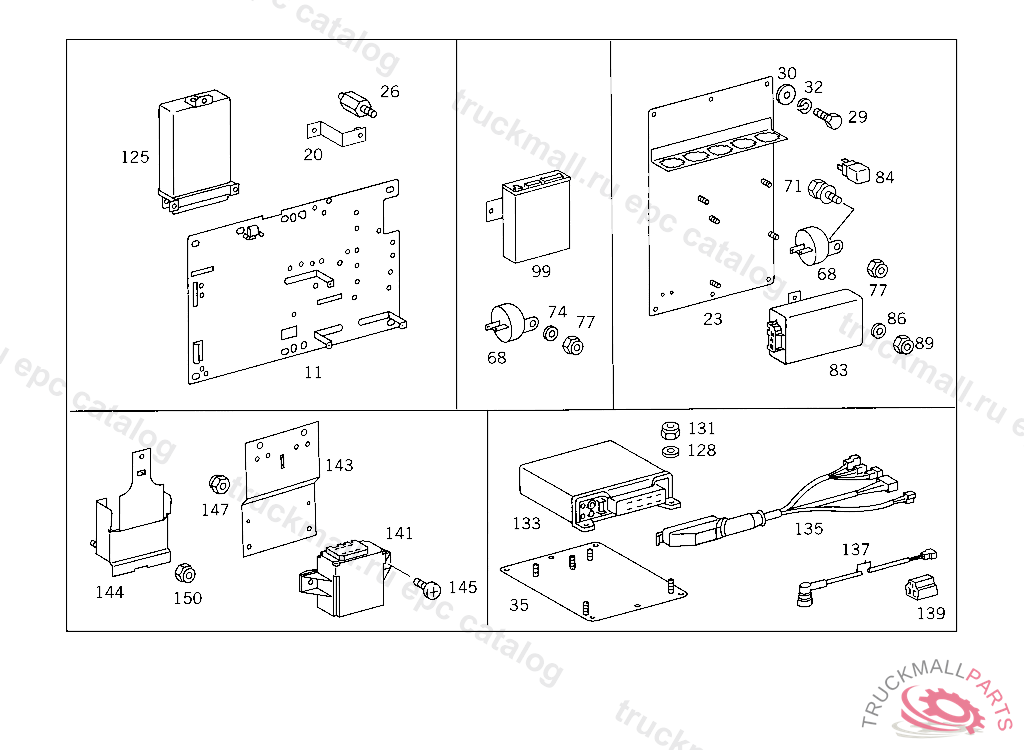

Поз.
Артикул
Описание
11
PLATE APPARATUS,K 062141
20
BRACKET APPARATUS PLATE TO CAB
23
PLATE ,5 590320
26
PIN , Replaced By: A6205450474
29
SCREW , Replaced By: N304017006016
29
SCREW PUMP TO BRACKET
30
WASHER , Replaced By: N009021006208
30
WASHER COMPRESSED AIR LINE TO BRACKET
32
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
35
SUPPORT ,K 100807
68
DIODE CASE AUXILIARY HEATER
71
COMBINATION BOLT BRACKET TO STEERING COLUMN END
77
NUT DIODE TO BRACKET,5 922534
84
RELAYA32/K6
86
WASHER COMPRESSED AIR LINE TO BRACKET
86
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
89
NUT , Replaced By: N913004006001
89
NUT PUMP TO BRACKET
99
ELECTRONICS , Replaced By: A0004460907
99
ELECTRONICS , Replaced By: A0004460107
99
ELECTRONICS
125
WSK ELECTRONICS CONVERTER LOCK-UP COUPLING
133
CONTROL UNIT CONTROL UNIT
133
CONTROL UNIT RETARDER
135
ELECTRIC CABLE
137
ELECTRIC CABLE
139
PLUG HOUSING CONVERTER LOCK-UP COUPLING
141
SWITCH,AUTOMATIC (ENGINE-SPEED SWITCH),K 041930
141
SWITCH,AUTOMATIC (ENGINE-SPEED SWITCH),5 959396K 041929
143
BRACKET ENGINE SPEED SWITCH,5 763989
144
PLATE CONTROL UNIT
145
SCREW CLAMP MOUNTING M 6X16
145
SCREW , Replaced By: N000000001146
147
NUT , Replaced By: N913002006009
147
NUT OIL TANK TO BRACKET
150
NUT TWO-WAY VALVE TO BRACKET
