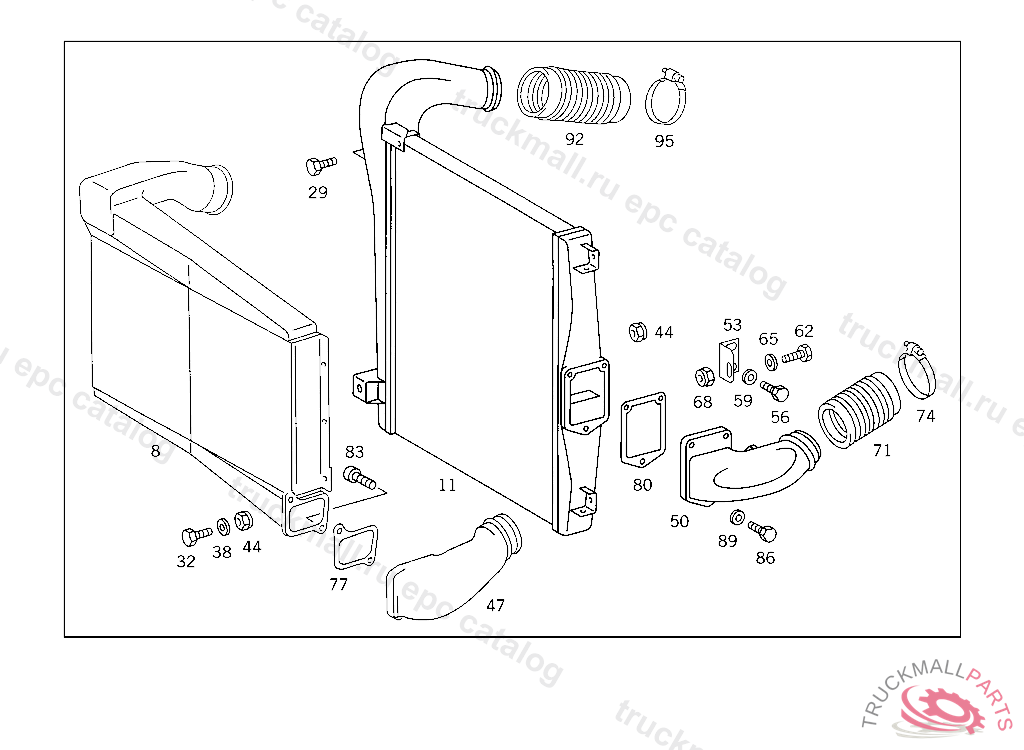

Поз.
Артикул
Описание
11
RADIATOR (CHARGING AIR INTERCOOLER)
32
SCREW LICENSE PLATE TO BRACKET
32
SCREW , Replaced By: N304017006020
44
NUT , Replaced By: N913004006001
44
NUT PUMP TO BRACKET
50
PIPE ELBOW FROM CHARGING AIR INTERCOOLER TO ENGINE, TO BE ADAPTED DURING ASSEMBLY
53
BRACKET PIPE BEND TO RADIATOR
56
SCREW COVER PLATE TO COVER PLATE M 6 X 12
56
SCREW , Replaced By: N304017006018
59
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
59
WASHER COMPRESSED AIR LINE TO BRACKET
62
SCREW , Replaced By: N304017008027
62
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
65
WASHER , Replaced By: N000125008443
65
WASHER EXHAUST MUFFLER TO STRAP
68
NUT , Replaced By: N913004008001
68
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
68
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
71
CHARGE AIR HOSE FROM CHARGING AIR INTERCOOLER TO ENGINE
74
CLAMP HOSE TO AIR CLEANER AND TO INTAKE PIPE 100-120X13 MM
74
CLAMP , Replaced By: A0059970690
80
GASKET PIPE TO CHARGING AIR INTERCOOLER
86
SCREW BRACKET TO SIDE MEMBER M10X38
89
CONICAL SPRING WASHER PIPE SOCKET TO OIL COOLER
92
HOSE FROM CHARGING AIR INTERCOOLER TO ENGINE
92
HOSE FROM CHARGING AIR INTERCOOLER TO ENGINE
95
CLAMP HOSE TO AIR CLEANER AND TO INTAKE PIPE 100-120X13 MM
95
CLAMP , Replaced By: A0059970690
95
CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE 100-120X13 MM
