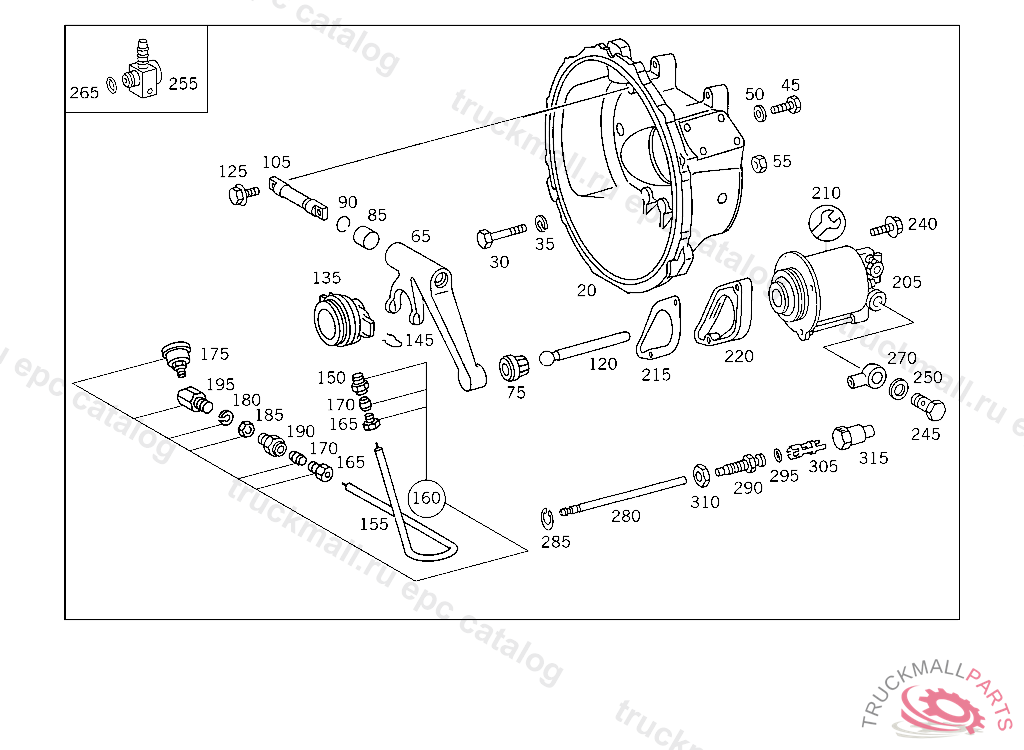

Поз.
Артикул
Описание
20
BELL HOUSING
30
SCREW , Replaced By: N000961018046
30
SCREW BELL HOUSING TO TRANSMISSION M 18X1.5X65
30
SCREW VIBRATION ABSORBER TO CONSOLE
30
SCREW BELL HOUSING TO TRANSMISSION M 18 X 195
35
LOCK WASHER BELL HOUSING TO TRANSMISSION
45
SCREW STRUT TO FRAME, LEFT
45
SCREW BELL HOUSING TO FLYWHEEL HOUSING M 10X45
50
WASHER RADIATOR TO RUBBER MOUNTING
55
NUT FRONT SPRINGS WITH TORSION BAR TO FRONT AXLE
65
RELEASE LEVER CLUTCH ACTUATION
75
BEARING TOP
85
BUSHING FRONT AND REAR
90
SNAP RING FRONT AND REAR
105
SPINDLE FOR RELEASE LEVERS
120
PIN RELEASE LEVER
125
SCREW RELEASE LEVER TO BELL HOUSING
135
RELEASE BEARING
145
SPRING RELEASE LEVER TO RELEASE BEARING
150
SCREW-IN FITTING RELEASE COLLAR LUBRICATION
155
HOSE RELEASE COLLAR LUBRICATION 220 MM
160
GREASE NIPPLE (PARTS KIT) RELEASE BEARING LUBRICATION
165
UNION SCREW RELEASE COLLAR LUBRICATION
170
DOUBLE TAPER RING RELEASE COLLAR LUBRICATION
175
CAP CLUTCH SLAVE CYLINDER TO BELL HOUSING
180
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
185
NUT , Replaced By: N304035014000
185
NUT RELEASE BEARING LUBRICATION
190
SCREW-IN FITTING RELEASE COLLAR LUBRICATION
195
GREASE NIPPLE RELEASE COLLAR LUBRICATION
205
CLUTCH BOOSTERKNORR
205
CLUTCH BOOSTERKNORR, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
205
CLUTCH BOOSTERWABCO, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
205
CLUTCH BOOSTERWABCO,K 037847 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
210
REPAIR KIT CLUTCH BOOSTER WABCO
210
REPAIR KIT CLUTCH BOOSTER KNORR
215
COVER PLATETO 000 295 02 18 , 000 295 09 18
220
FLANGE CLUTCH SLAVE CYLINDER TO BELL HOUSING
240
SCREW CLUTCH BOOSTER TO BELL HOUSING
245
HOLLOW SCREW COMPRESSED AIR LINE TO CLUTCH BOOSTER
250
SEAL RING. SEALING RING , Replaced By: N007603016401
250
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
255
CONNECTOR RELEASE BEARING LUBRICATION
255
CONNECTOR , Replaced By: A0019904078
265
SEAL RING CONNECTOR 11.8X2 MM
270
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
280
PIN CLUTCH BOOSTER
280
PIN CLUTCH LINING WEAR INDICATOR
285
LOCK PLATE PIN TO CLUTCH SLAVE CYLINDER BOOT, Replaced By: N006799005004
285
CIRCLIP PIN TO CLUTCH SLAVE CYLINDER BOOT
290
SCREW WEAR INDICATOR
295
SEAL RING WEAR INDICATOR
305
POINTER
310
NUT WEAR INDICATOR
315
CAP CLUTCH SLAVE CYLINDER TO BELL HOUSING
999
ROLLER RELEASE LEVER,K 281332
999
SENDER UNIT LIMITATION OF ENGINE SPEED
999
CAP WEAR INDICATOR
