Mercedes N304017008024 - БОЛТ М8

3050,3053/A/S,3550,3553S 625.037

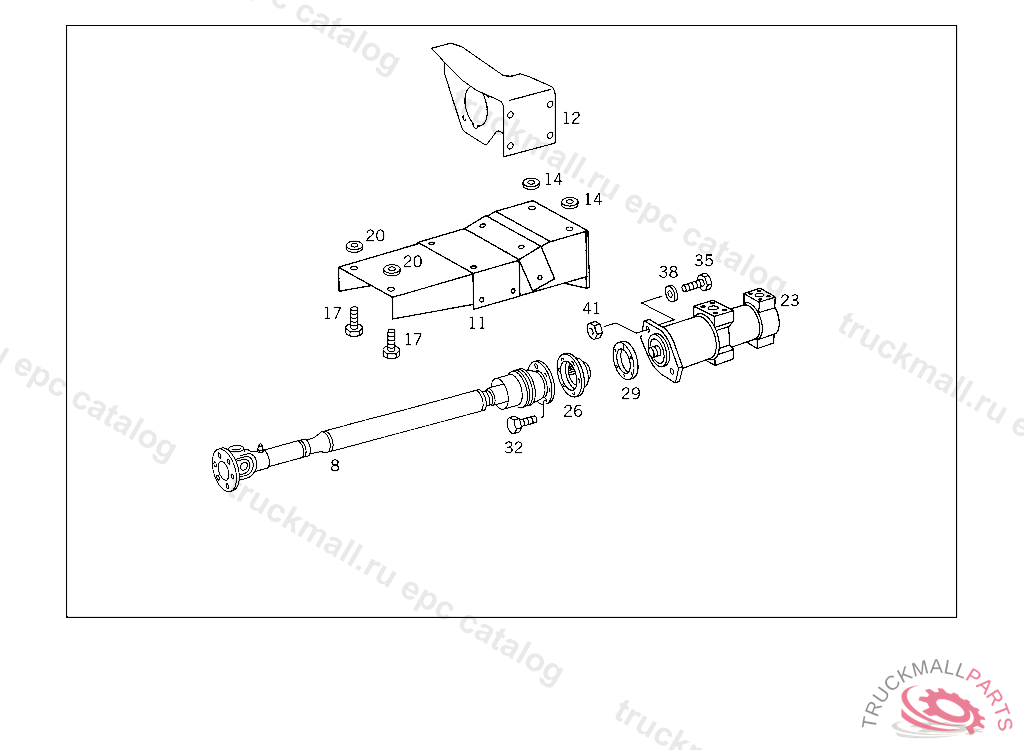

31 FRAME - 001 HYDRAULIC PUMP IL.1

Поз.
Артикул
Описание
8
A6991550103
DRIVE SHAFT HYDRAULIC PUMP
11
A6995501740
BRACKET PUMP TO FRAME
12
A6995502540
BRACKET PUMP
14
N000125013008
WASHER
17
N000961014050
SCREW , Replaced By: N308676014020
17
N308676014020
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
20
N000125015012
WASHER
23
A6992360205
HYDRAULIC PUMP
23
A0012363505
HYDRAULIC PUMP REAR COOLING SYSTEM
26
A6995530045
FLANGE PROPELLER SHAFT TO HYDRAULIC PUMP
29
A6255530076
WASHER (SHRINK WASHER)
32
N304017008024
SCREW BRACKET TO EXHAUST PIPE BRACKET
32
N000933008177
SCREW , Replaced By: N304017008024
35
N000960016171
SCREW RUBBER MOUNTING TO SUPPORTING ARM M 16X1.5X60
38
N000125017014
WASHER STEERING SUPPORT TO FRAME
41
N913004016004
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
41
N910113016002
NUT COMBINATION CYLINDER TO BEARING BRACKET
999
A0002362935
VALVE
999
A0002363035
VALVE
999
A6995533982
HOSE PUMP
