Поз.
Артикул
Описание

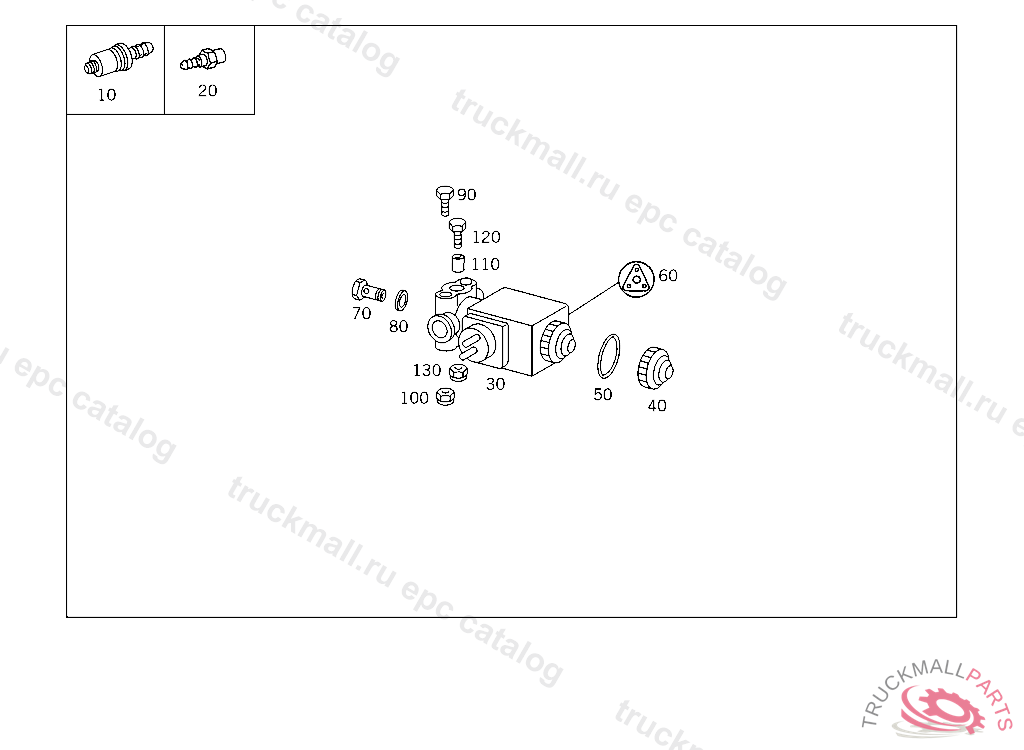

10
PLUG COMPRESSED-AIR-LINE PLUG-CONNECTION
20
FITTING LINE CONNECTION TO FIRE WALL,5 726664
30
VALVE (3/2-WAY SOLENOID VALVE) EKS
40
PROTECTIVE CAPWABCO
50
SEAL RINGWABCO
60
GASKET KITKNORR
70
HOLLOW SCREW HEATING CONNECTION
80
SEAL RING LINE CONNECTION
90
SCREW 3/2-WAY VALVE TO BRACKET
90
SCREW , Replaced By: N304014008009
100
NUT , Replaced By: N913004008001
100
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
110
SEAL RING VALVE TO VALVE
120
SCREW VALVE TO BRACKET M 8X55
120
SCREW , Replaced By: N304017008043
130
NUT , Replaced By: N913004008001
130
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
VALVE SHUTTLE VALVE, REPAIR IMPOSSIBLE
999
VALVE (3/2-WAY SOLENOID VALVE) WABCO
999
VALVE 3/2-WAY, EXHAUST BRAKE CONTROL WABCO
