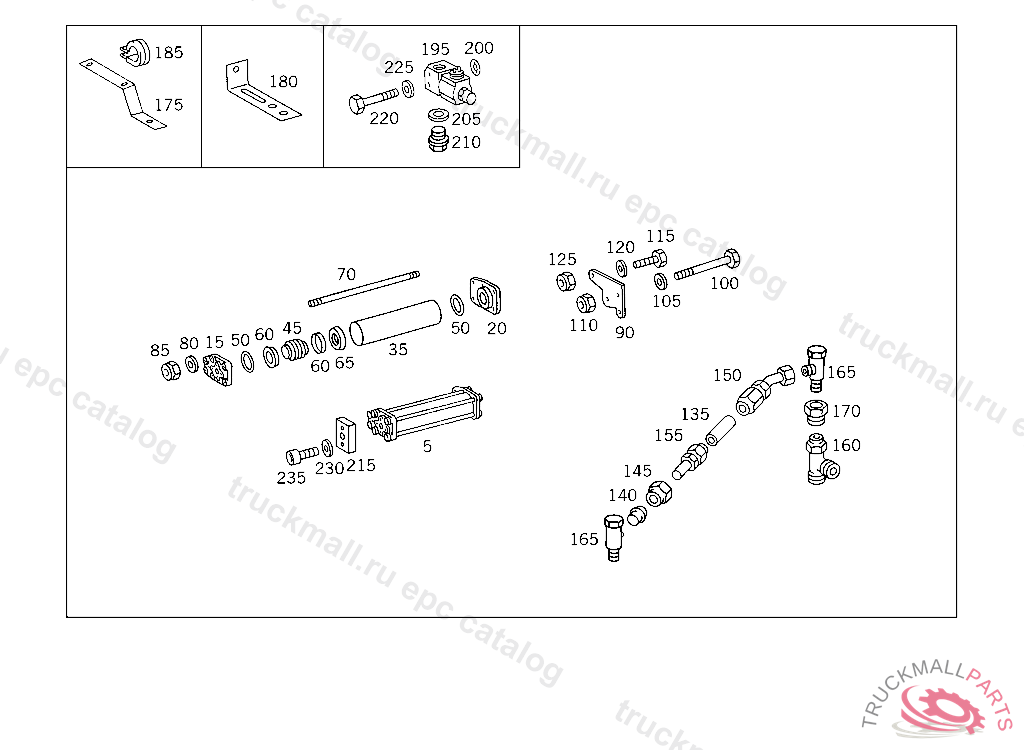

Поз.
Артикул
Описание
5
RESERVOIR RETARDER ACCUMULATOR
5
RESERVOIR , Replaced By: A0002700546
5
RESERVOIR , Replaced By: A0002700446
15
COVER
20
COVER
35
PIPE
35
PIPE , Replaced By: A0002712696
45
PISTON
50
SEAL RING
60
SEAL RING
65
PISTON GUIDE
70
STUD
80
WASHER EXHAUST MUFFLER TO STRAP
80
WASHER , Replaced By: N000125008443
85
NUT , Replaced By: N913004008001
85
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
90
BRACKET OIL COOLER
100
SCREW PUMP TO FRAME SIDE MEMBER M 8X40
100
SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
100
SCREW , Replaced By: A0099900101
100
SCREW , Replaced By: N000933008337
105
WASHER EXHAUST MUFFLER TO STRAP
110
NUT BRACKET TO BRACKET
110
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
110
NUT , Replaced By: N913004008001
115
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
115
SCREW EXHAUST PIPE TO BRACKET
120
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
125
NUT STRAP TO SUPPORT
125
NUT ROD TO BEARING BRACKET
135
HOSE FROM OIL COOLER TO TRANSMISSION, ORDER BY THE METER
140
GLAND LINE CONNECTION
140
GLAND LINE CONNECTION
145
UNION NUT LINE CONNECTION
145
UNION NUT LINE CONNECTION
150
FITTING LINE CONNECTION
155
FITTING LINE CONNECTION
160
FITTING LINE CONNECTION
165
SCREW CONNECTION LINE CONNECTION
170
SLEEVE BRACKET TO TRANSMISSION
175
BRACKET FUEL LINES TO TRANSMISSION
180
BRACKET LINE MOUNTING
185
CLAMP HOSE TO BRACKET 25/20,5 206397
195
VALVE (SOLENOID VALVE)
200
SEAL RING VALVE
200
SEAL RING , Replaced By: A0099974245
205
SEAL RING LINE CONNECTION
210
SCREW PLUGROCKINGER TYP 59 G140,59 G150, Replaced By: N007604012105
210
SCREW PLUGROCKINGER,TYP 59 U150
215
FLANGE VALVE TO BRACKET
220
SCREW WATER PUMP
225
WASHER EXHAUST MUFFLER TO STRAP
225
WASHER , Replaced By: N000125008443
230
SEAL RING AT TANK
235
SCREW STEERING SHAFT BEARING TO CAB M 8X30,5 191030
