Mercedes A6555050047 - БЛОКИРОВКА

3050,3053/A/S,3550,3553S 625.037

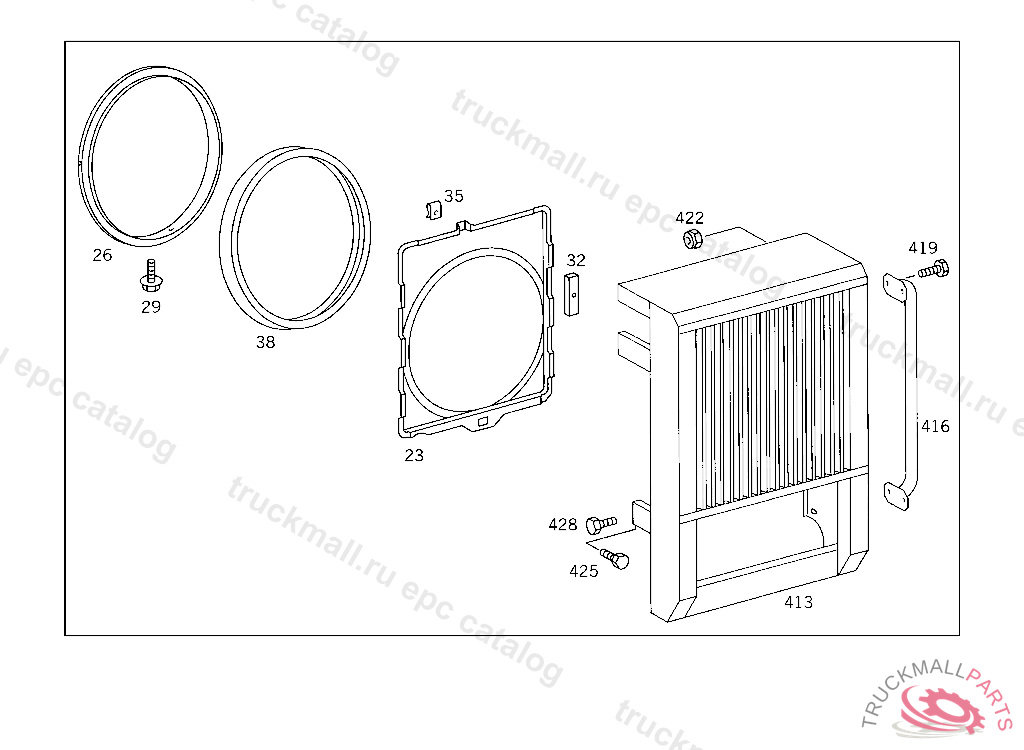

50 RADIATOR - 060 RADIATOR AND EXPANSION TANK IL. 1

Поз.
Артикул
Описание
23
A6525050855
FAN SHROUD RADIATOR
26
A4032000895
AIR BAFFLE RADIATOR
29
A0009906404
SCREW COVER TO BELL HUB
29
N914112010000
SCREW AIR BAFFLE TO RADIATOR BASE FRAME, Replaced By: A0009906404
32
A6555050047
DETENT FAN SHROUD TO RADIATOR
35
N912002008003
LOCK PULL TO FASTENER
35
N912002008001
LOCK , Replaced By: N912002008003
38
A6205050086
BOOT FAN SHROUD TO FAN RING
413
A6995000015
RADIATOR GRILL SHELL
416
A6995003831
BRACKET (GRAB HANDLE)
419
N000933008147
SCREW , Replaced By: N304017008021
419
N304017008021
SCREW PIPE CLAMP
422
N910113008003
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
422
N913004008004
NUT , Replaced By: N913004008001
422
N913004008001
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
425
N304017008016
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
425
N000933008212
SCREW , Replaced By: N304017008016
428
N000933010128
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
