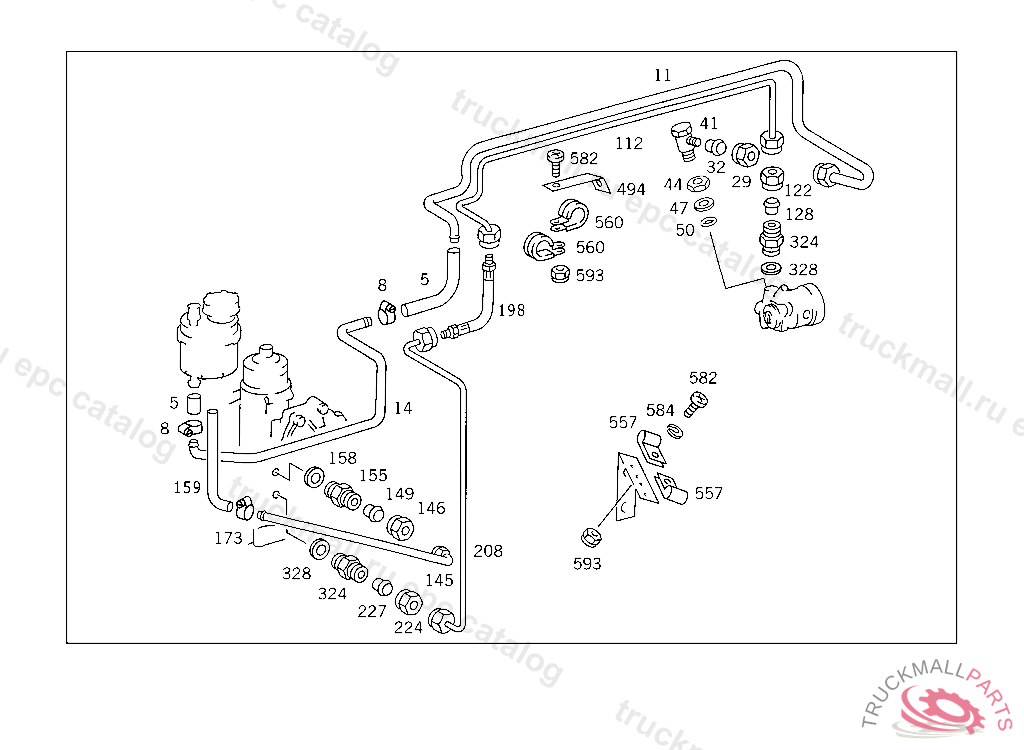

Поз.
Артикул
Описание
5
HOSE RETURN, FROM STEERING TO OIL TANK, ORDER BY THE METER
8
CLAMP , Replaced By: N000000000667
8
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
11
LINE (SUCTION LINE),FROM OIL TANK TO PUMP
11
LINE FROM OIL TANK TO POWER STEERING PUMP AT ENGINE
11
LINE (SUCTION LINE),FROM OIL TANK TO PUMP
14
LINE FROM OIL TANK TO SUCTION LINE HOSE
14
LINE HOSE TO SUCTION LINE AND TO OIL TANK
29
NUT LINE CONNECTION
29
UNION NUT LINE CONNECTION, Replaced By: N000000006243
32
GLAND , Replaced By: A0019901267
32
SEAL CONE LINE CONNECTION
41
ELBOW FITTING SUCTION LINE TO OIL PUMP
44
NUT SUCTION LINE TO OIL PUMP
47
THRUST RING SUCTION LINE TO OIL PUMP
50
SEALING CORD SUCTION LINE TO OIL PUMP
112
LINE FROM PUMP TO HIGH PRESSURE HOSE
112
LINE FROM PUMP TO HIGH PRESSURE HOSE, CIRCUIT I
112
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO STEERING BOX
122
UNION NUT LINE CONNECTION
122
UNION NUT LINE CONNECTION, Replaced By: N000000006239
128
GLAND , Replaced By: A0019901967
128
SEAL CONE LINE CONNECTION
145
LINE RETURN, FROM STEERING TO OIL TANK
145
LINE RETURN, FROM STEERING TO OIL TANK
146
UNION NUT LINE CONNECTION
149
GLAND LINE CONNECTION
155
SCREW-IN FITTING RETURN, FROM STEERING TO OIL TANK
158
SEAL RING VALVE TO VALVE,K 025179
159
HOSE DELIVERY LINE TO STEERING
173
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
173
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
173
CLAMP HOSE TO FITTING AND TO OIL TANK
173
CLAMP , Replaced By: N000000000667
198
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
198
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
198
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
208
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO STEERING BOX
208
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO STEERING BOX
224
UNION NUT LINE CONNECTION
224
UNION NUT LINE CONNECTION, Replaced By: N000000006239
227
GLAND , Replaced By: A0019901967
227
SEAL CONE LINE CONNECTION
324
FITTING DELIVERY LINE TO PUMP
328
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
494
BRACKET DELIVERY AND SUCTION LINES TO ENGINE
494
BRACKET COMPRESSED AIR LINES,K 168169
557
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
557
CLAMP FEED LINE TO THERMOSTAT
557
CLAMP DELIVERY AND SUCTION LINES TO STEERING
557
CLAMP LINE MOUNTING
557
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
557
CLAMP , Replaced By: A6739950001
557
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
560
CLAMP LINES TO BRACKET
560
CLAMP DELIVERY AND SUCTION LINES TO FRAME, Replaced By: N916016022203
560
CLAMP DELIVERY AND SUCTION LINES TO FRAME
560
CLAMP HOSE TO FLANGE AND TO VALVE
560
CLAMP OIL DIPSTICK TO RADIATOR
560
CLAMP LINE MOUNTING
560
CLAMP FRAME MOUNTED CABLE HARNESS TO CAB
560
CLAMP OIL FILLER PIPE TO BRACKET
582
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
582
SCREW CLAMP MOUNTING M 6X16
582
SCREW , Replaced By: N000000001146
584
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
593
NUT PUMP TO BRACKET
593
NUT , Replaced By: N913004006001
999
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
999
BRACKET DELIVERY AND SUCTION LINES TO FRAME
