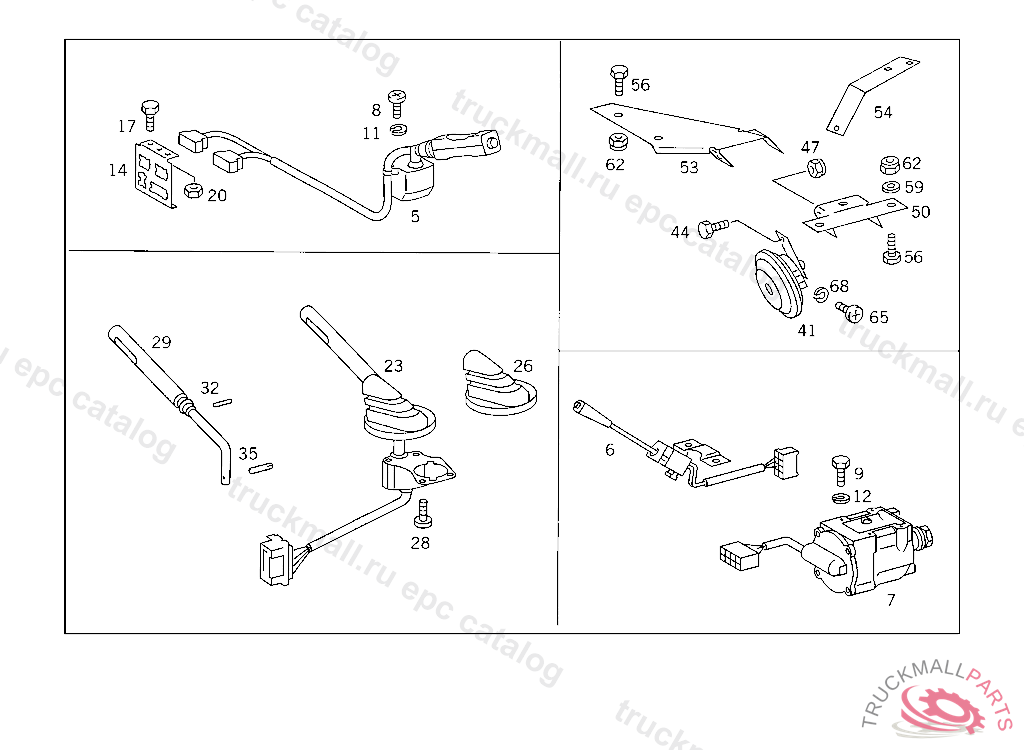

Поз.
Артикул
Описание
5
STEERG.COLUMN MTD. SWITCH
5
STEERG.COLUMN MTD. SWITCH
6
TEMPOMAT SWITCH ,K 209760, Replaced By: A0075454924
6
TEMPOMAT SWITCH WITH TEMPOSET,K 209760
7
SENDER UNIT (SET POINT SENDER UNIT)
9
SCREW COVER PLATE TO COVER PLATE M 6 X 12
9
SCREW , Replaced By: N304017006018
12
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
14
BRACKET , Replaced By: A6585450340
14
BRACKET STEERING COLUMN MOUNTED SWITCH PLUGCONNECTION
17
SCREW , Replaced By: N304017006034
17
SCREW COVER PLATE TO COVER PLATE M 6 X 10
20
NUT PUMP TO BRACKET
20
NUT , Replaced By: N913004006001
23
SWITCH (STEP SWITCH)
23
SWITCH (STEP SWITCH)
26
BOOT
28
SCREW
29
LEVER
29
LEVER
32
CYLINDRICAL PIN
35
GROOVED PIN
41
HORN HIGH NOTE BOSCH
41
HORN HIGH NOTE HELLA
41
HORN LOW NOTE BOSCH
41
HORN , Replaced By: A0045424420
41
HORN , Replaced By: A0025426820
41
HORN , Replaced By: A0025426720
41
HORN , Replaced By: A0045423020
41
HORN , Replaced By: A0045422920
41
HORN , Replaced By: A0045424520
41
HORN , Replaced By: A0045424420
44
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
47
NUT STRAP TO BRACKET
47
NUT , Replaced By: N910113010000
54
BRACKET HORN,K 082849
56
SCREW , Replaced By: N304017008021
56
SCREW BEARING BRACKET TO SIDE MEMBER
56
SCREW PIPE CLAMP
59
WASHER BRACKET TO FRAME
59
WASHER , Replaced By: N000125017016
62
NUT , Replaced By: N913004008001
62
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
62
NUT BRACKET TO SIDE MEMBER
62
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
65
SCREW ELECTRIC CABLE TO HORN
68
LOCK WASHER T-FITTING TO BRACKET
