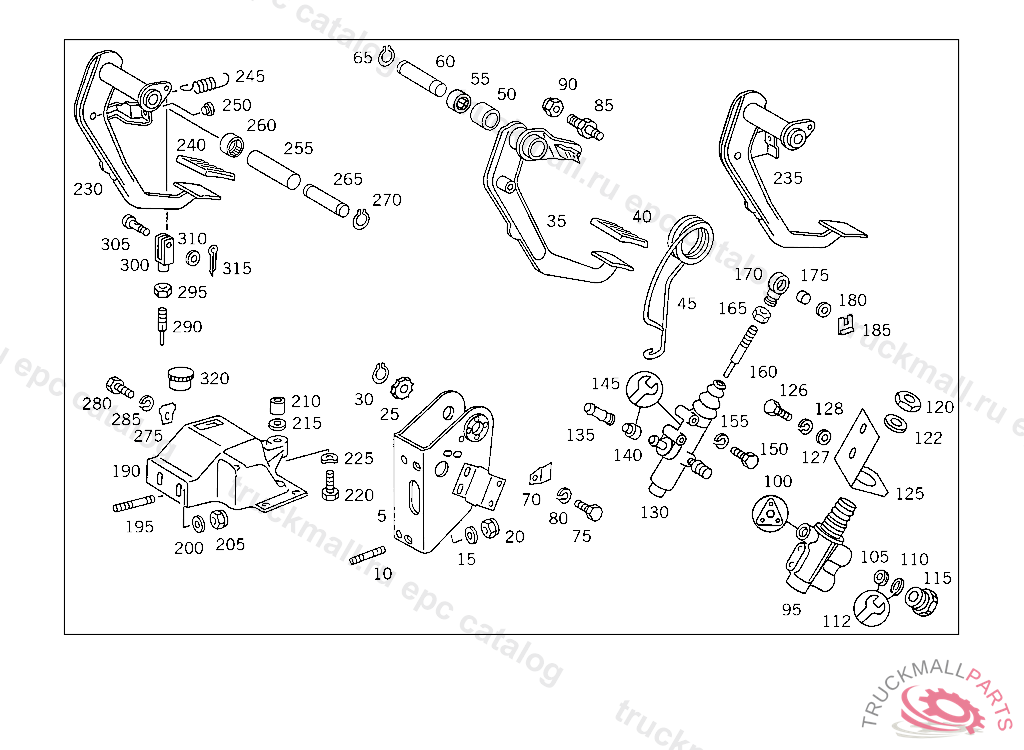

Поз.
Артикул
Описание
5
BEARING BRACKET CLUTCH PEDAL
10
STUD BOLT BRACKET TO CROSS MEMBER
15
WASHER , Replaced By: N000125008443
15
WASHER EXHAUST MUFFLER TO STRAP
20
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
20
NUT , Replaced By: N913004008001
20
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
25
STOP PEDAL ASSEMBLY
30
LOCK STOP TO BEARING BRACKET
30
LOCK RING , Replaced By: A0079942041
35
PEDAL CLUTCH,547011
35
PEDAL CLUTCH,5 238025
35
PEDAL CLUTCH,5 238025
40
PAD BRAKE
45
SPRING CLUTCH PEDAL RESET
50
SPACER TUBE CLUTCH PEDAL
55
NEEDLE BEARING
60
PIVOT PIN PEDAL TO BEARING BRACKET
65
LOCK RING
70
LOCK PEDAL TO BEARING BRACKET
75
SCREW PUMP TO BRACKET
75
SCREW , Replaced By: N304017006016
80
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
85
PIN CLUTCH PEDAL,5 238024
85
PIN CLUTCH PEDAL,5 238025
90
NUT SWITCH TO FLOOR PLATE
95
VALVE 3/2-WAY VALVE
100
GASKET KIT 3/2-WAY VALVE
105
LOCK RING LINE CONNECTION
105
SEAL RING , Replaced By: A0009940747
110
LOCK LINE CONNECTION
110
LOCK , Replaced By: A0009945448
112
REPAIR KIT COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
112
REPAIR KIT , Replaced By: A0309971748
115
SCREW. UNION SCREW , Replaced By: A0009973734
115
SCREW. UNION SCREW LINE CONNECTION
120
NUT SUCTION LINE TO OIL PUMP
122
WASHER VALVE TO BRACKET
122
WASHER , Replaced By: N001440027000
125
BRACKET 3/2-WAY VALVE TO PEDAL BEARING BRACKET
125
BRACKET 3/2-WAY VALVE, UP TO IDENT NO.5 238024,FROM IDENT NO. SEE GROUP 29
125
BRACKET SPLITTER-BOX PILOT VALVE
126
SCREW COVER PLATE TO BRACKET
126
SCREW BRACKET ON LOAD SENSOR
127
WASHER COMPRESSED AIR LINE TO BRACKET
127
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
128
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
130
MASTER CYLINDER CLUTCH,LESS DE-AERATION
130
MASTER CYLINDER CLUTCH,5 374582
135
INTERMEDIATE PIECE CLUTCH MASTER CYLINDER
140
PLUG
145
REPAIR KIT TO MASTER CYLINDER HAVING SYNTHETIC PISTON TO 001 295 60 06
145
REPAIR KIT TO MASTER CYLINDER HAVING SYNTHETIC PISTON, I.D., 20.6 MM, TO 001 295 71 06,5 374582
150
SCREW BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING M 6X60
150
SCREW DELIVERY AND SUCTION HOSES TO COUPLING MOUTH CROSS MEMBER,5 598039
155
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
160
ROD MASTER CYLINDER
165
NUT , Replaced By: N304035008001
165
NUT
170
ARTICULATION PIECE CLUTCH MASTER CYLINDER
170
ARTICULATION PIECE CLUTCH MASTER CYLINDER
175
NEEDLE BEARING JOINT TO PIN
175
NEEDLE BEARING JOINT TO PIN
175
NEEDLE BEARING JOINT TO PIN
175
NEEDLE BEARING JOINT TO PIN
180
WASHER BRACKET TO CROSS MEMBER
185
LOCK PLATE PUSH ROD TO CLUTCH PEDAL
190
BEARING BRACKET BRAKE
195
STUD BOLT BRACKET TO CROSS MEMBER
200
WASHER SUPPORTING RAIL TO SUPPORT,5 429712
205
NUT , Replaced By: N913004008001
205
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
205
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
210
SPACER TUBE BEARING BRACKET TO STEERING COLUMN BRACKET
210
SPACER TUBE BEARING BRACKET TO STEERING COLUMN BRACKET
215
WASHER BEARING BRACKET TO STEERING COLUMN BRACKET
215
WASHER BEARING BRACKET TO STEERING COLUMN BRACKET
220
SCREW BEARING BRACKET TO STEERING COLUMN BRACKET
220
SCREW BEARING BRACKET TO STEERING COLUMN BRACKET
225
SPRING WASHER STEERING COLUMN BRACKET TO CAB
225
SPRING WASHER STEERING COLUMN BRACKET TO CAB
230
PEDAL BRAKE
235
PEDAL BRAKE
240
PAD BRAKE
245
SPRING BRAKE PEDAL RELEASE SPRING
250
STOP
255
SPACER TUBE
260
NEEDLE BEARING
265
PIVOT PIN PEDAL TO BEARING BRACKET
270
LOCK RING
275
LOCK , Replaced By: A6732920073
275
LOCK CLUTCH AND BRAKE PEDAL PINS TO BEARING BRACKETS
280
SCREW , Replaced By: N304017006018
280
SCREW COVER PLATE TO COVER PLATE M 6 X 12
285
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
290
ROD PISTON ROD AND PUSH ROD
290
ROD , Replaced By: A9702900039
295
NUT , Replaced By: N304035008001
295
NUT
300
YOKE OPERATING ROD,K 202311
305
PIN ROD TO BRAKE PEDAL
310
WASHER BRACKET TO CROSS MEMBER
315
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
315
COTTER PIN LEVER TO ROD
320
EXPANSION PLUG STEERING COLUMN END 20 MM,4 4307305 062722
320
EXPANSION PLUG , Replaced By: A0009973220
320
PLUG CAB FLOOR SEALING
320
PLUG , Replaced By: A0009972020
