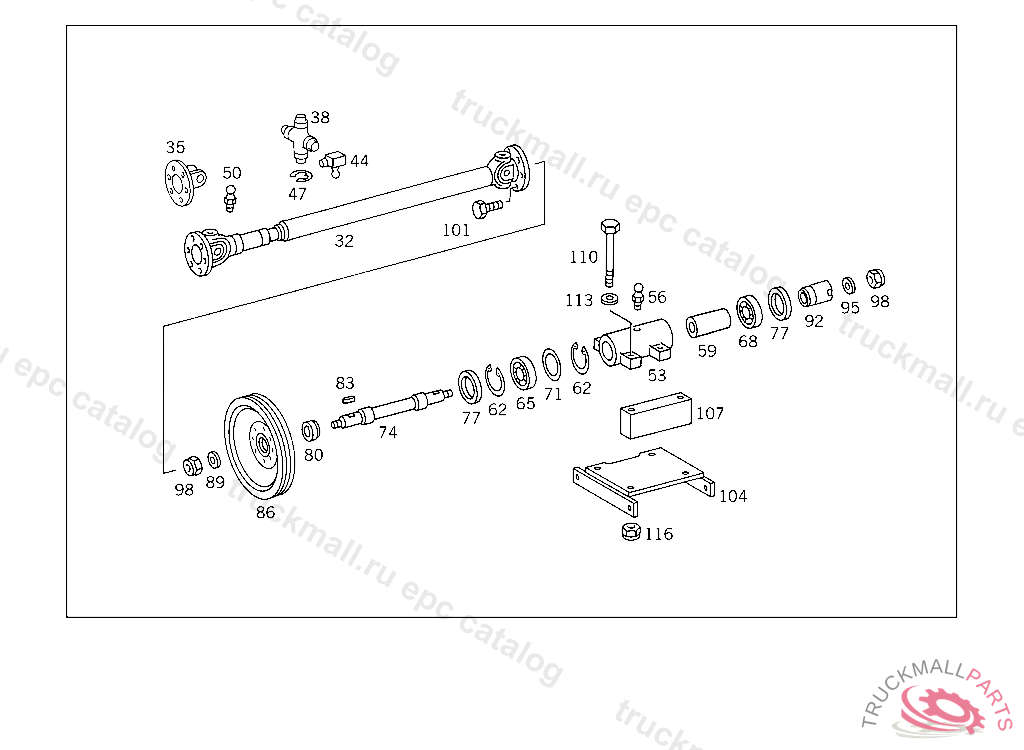

Поз.
Артикул
Описание
32
PROPELLER SHAFT , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6991550003
32
PROPELLER SHAFT , Replaced By: A6254100301
32
DRIVE SHAFT DRIVE SHAFT
32
PROPELLER SHAFT FROM HYDRAULIC PUMP TO P.T.O. 905 MM
35
FLANGETO 699 206 02 22
38
UNIVERSAL JOINT CROSSTO 699 206 02 22
38
PIVOT PIN
44
GREASE NIPPLE
47
LOCK AS REQUIRED 1.80 MM
47
LOCK AS REQUIRED 1.65 MM
47
LOCK AS REQUIRED 1.50 MM
50
GREASE NIPPLE PROTECTIVE TUBE
53
BEARING BODY INTERMEDIATE BEARING
56
GREASE NIPPLE
59
SPACER TUBE INTERMEDIATE BEARING
62
LOCK RING
65
CYLINDR. ROLLER BEARING INTERMEDIATE BEARING
68
GROOVED BALL BEARING INTERMEDIATE BEARING
71
SPACER WASHER INTERMEDIATE BEARING
74
DRIVE SHAFT INTERMEDIATE BEARING
77
SEAL RING INTERMEDIATE BEARING
80
BUSHING INTERMEDIATE BEARING
83
KEY INTERMEDIATE BEARING
86
PULLEY INTERMEDIATE BEARING
89
WASHER TORSION BAR TO BEARING BRACKET, Replaced By: N007349017003
89
WASHER TORSION BAR TO BEARING BRACKET
92
BUSHING INTERMEDIATE BEARING
95
WASHER TORSION BAR TO BEARING BRACKET, Replaced By: N007349017003
95
WASHER TORSION BAR TO BEARING BRACKET
98
NUT COMBINATION CYLINDER TO BEARING BRACKET
101
SCREW BRACKET TO EXHAUST PIPE BRACKET
104
BRACKET INTERMEDIATE BEARING TO BRACKET, TO BE ADAPTED DURING ASSEMBLY
107
SUPPORTING PLATE INTERMEDIATE BEARING TO BRACKET
110
SCREW INTERMEDIATE BEARING TO BRACKET
113
WASHER STRUT TO CROSS MEMBER
116
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
999
LINE HEATING AND BREATHING
999
CONNECTOR AT WATER PUMP
