Поз.
Артикул
Описание

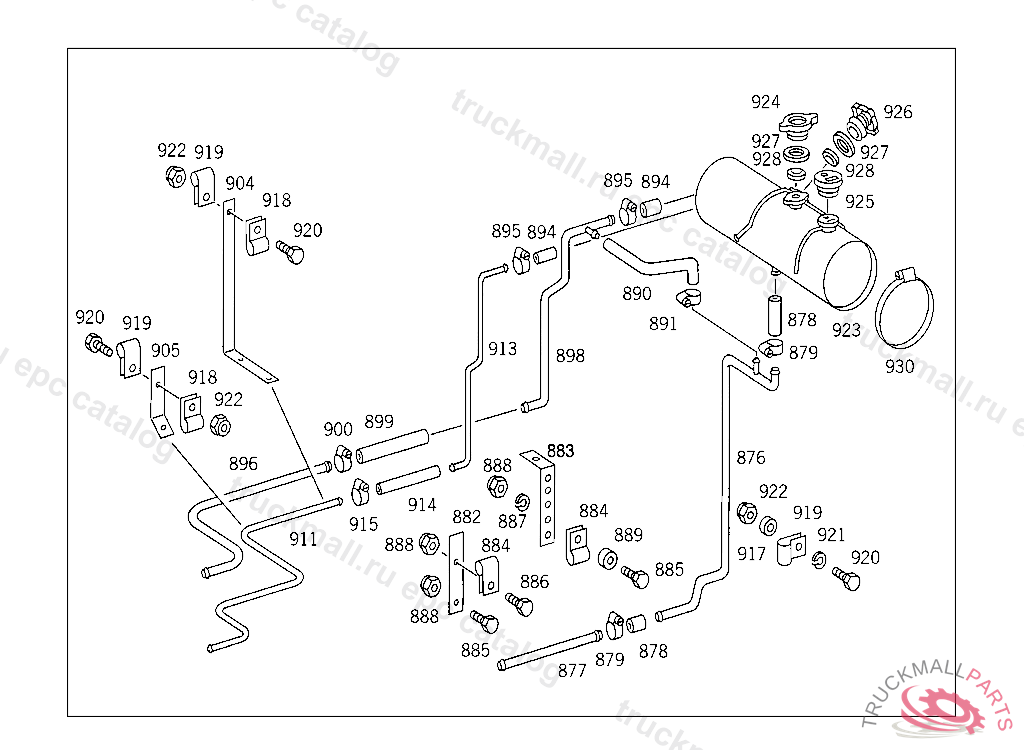

876
LINE FROM EXPANSION TANK TO WATER PUMP
877
COOLING WATER PIPE FROM EXPANSION TANK TO WATER PUMP
878
HOSE FROM WATER PUMP TO EXPANSION TANK 28X37X80,5 022370 ORDER BY THE METER
879
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
879
CLAMP
882
BRACKET , Replaced By: A3875010820
882
BRACKET COOLING WATER LINE TO FRAME
882
BRACKET , Replaced By: A3834929141
883
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
884
CLAMP COOLING WATER LINE TO FRAME
885
SCREW , Replaced By: N304017008034
885
SCREW , Replaced By: N304017008021
885
SCREW BRACKET TO CROSS CONNECTION STRUT
885
SCREW PIPE CLAMP
885
SCREW PIPE CLAMP
886
SCREW , Replaced By: N304017008016
886
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
886
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
887
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
888
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
888
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
888
NUT , Replaced By: N913004008001
889
SPACER TUBE AIR SPRING VALVE TO BRACKET
890
HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
891
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
891
CLAMP , Replaced By: N000000000667
894
HOSE DE-AERATION LINE, LENGTH AVAILABLE: 1000 MM
895
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
895
CLAMP , Replaced By: N916017011001
896
COOLING WATER PIPE DE-AERATION, FROM FLANGE TO CONNECTION POINT
898
LINE FROM CONNECTION POINT TO EXPANSION TANK
899
HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
900
CLAMP , Replaced By: N000000000667
900
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
904
BRACKET DE-AERATION LINE TO SUPPORT
905
BRACKET DE-AERATION LINE TO SUPPORT
911
COOLING WATER PIPE FROM FRONT DE-AERATION LINE TO CONNECTION
913
LINE FROM EXPANSION TANK TO HEATING PIPE 8X1 MM, ORDER BY THE METER
913
COOLING WATER PIPE , Replaced By: A0004290301
914
HOSE DE-AERATION LINE, LENGTH AVAILABLE: 1000 MM
915
CLAMP , Replaced By: N916017011001
915
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
917
SPACER RING DE-AERATION LINE TO BRACKET
918
CLAMP ,K 147121, Replaced By: N000000000319
918
CLAMP , Replaced By: N916016008200
918
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
918
CLAMP , Replaced By: A3604300143
919
CLAMP DELIVERY AND SUCTION LINES TO STEERING
919
CLAMP , Replaced By: A6739950001
920
SCREW COVER PLATE TO BRACKET
920
SCREW , Replaced By: N304017006016
920
SCREW BRACKET TO BATTERY/APPARATUS SUPPORT
920
SCREW PUMP TO BRACKET
921
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
922
NUT PUMP TO BRACKET
922
NUT , Replaced By: N913004006001
923
TANK EXPANSION TANK
924
RADIATOR CAP CENTRAL
924
RADIATOR CAP CENTRAL
925
RADIATOR CAP
926
RADIATOR CAP FILLER NECK
926
RADIATOR CAP FILLER NECK
927
GASKET O.D., 52 MM
928
GASKET O.D., 37 MM
930
CLAMP EXPANSION TANK TO SUPPORT
999
FLANGE HEATING AND BREATHING
999
HOSE FROM RADIATOR OUTLET TO WATER PUMP
999
BRACKET HEATING PIPE TO ENGINE
