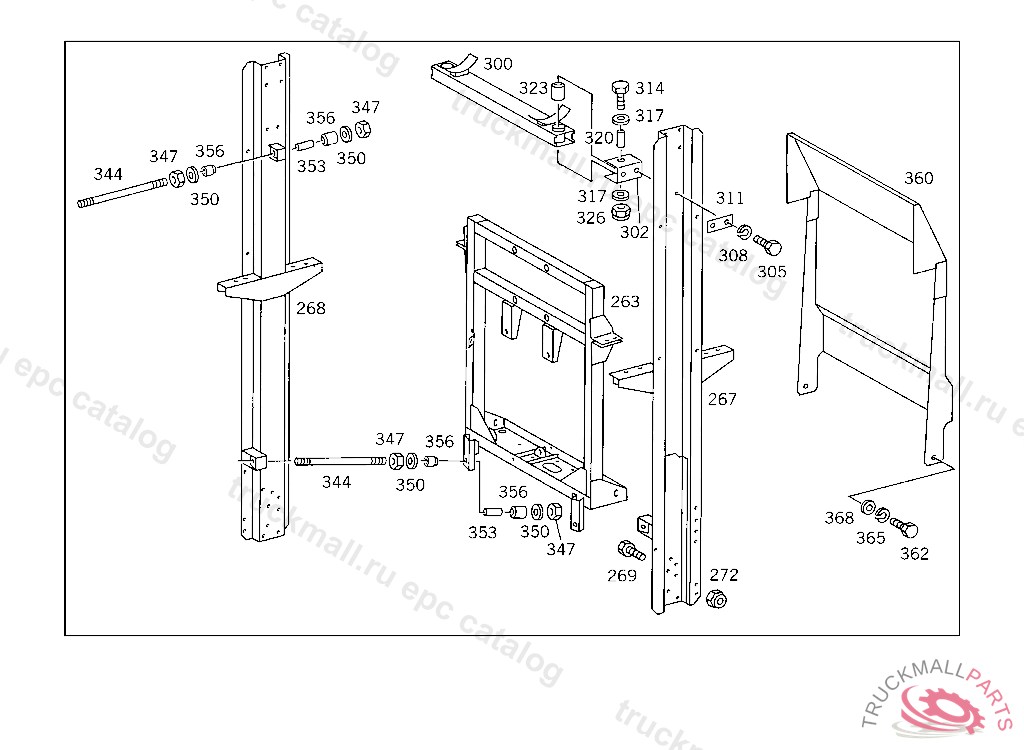

Поз.
Артикул
Описание
263
SUPPORT
263
SUPPORT , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6255004127
263
SUPPORT , Replaced By: A6255003227
267
SUPPORT LEFT
268
SUPPORT RIGHT, TO BE ADAPTED DURING ASSEMBLY
269
SCREW , Replaced By: N308676014012
269
SCREW SUPPORT TO SIDE MEMBER M 14X45
272
NUT , Replaced By: N910113014000
272
NUT STEERING SUPPORT TO FRAME
300
SUPPORT , Replaced By: A0805006027
300
SUPPORT TOP,TRANSVERSE
302
BRACKET RADIATOR TO FRAME
305
SCREW BRACKET TO LEFT SIDE MEMBER
308
LOCK WASHER FITTING TO BRACKET
311
SHIM UPPER BRACKET TO OUTSIDE SUPPORT
314
SCREW PARTICLE FILTER
317
WASHER PARTICLE FILTER
320
SPACER TUBE PARTICLE FILTER
323
RUBBER MOUNTING PARTICLE FILTER SUSPENSION
326
NUT BRACKET TO SIDE MEMBER
326
NUT , Replaced By: N910113014001
344
PULL ROD SUPPORT TO CONSOLE, TO BE ADAPTED DURING ASSEMBLY
344
PULL ROD SUPPORT TO CONSOLE, TO BE ADAPTED DURING ASSEMBLY
347
NUT BRACKET TO SUPPORT AND TO END PIECE
347
NUT BRACKET TO SUPPORT AND TO END PIECE
350
WASHER , Replaced By: N009021010209
350
WASHER BRACKET TO COVERING
350
WASHER BRACKET TO COVERING
353
SPACER TUBE HOLLOW RUBBER SPRING,5 956657
353
SPACER TUBE HOLLOW RUBBER SPRING,5 956657
353
SPACER TUBE RADIATOR STRUT TO SUPPORT AND TO CAB
356
RUBBER BUFFER CHARGE AIR INTERCOOLER
356
RUBBER BUFFER CHARGE AIR INTERCOOLER
360
PROTECTIVE GRILLE FAN DRIVE
362
SCREW , Replaced By: N304017008021
362
SCREW PIPE CLAMP
365
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
368
WASHER BRACKET TO LEFT SIDE MEMBER
368
WASHER , Replaced By: N009021008213
999
FLANGE HEATING AND BREATHING
999
HOSE FROM RADIATOR OUTLET TO WATER PUMP
999
BRACKET HEATING PIPE TO ENGINE
