Поз.
Артикул
Описание

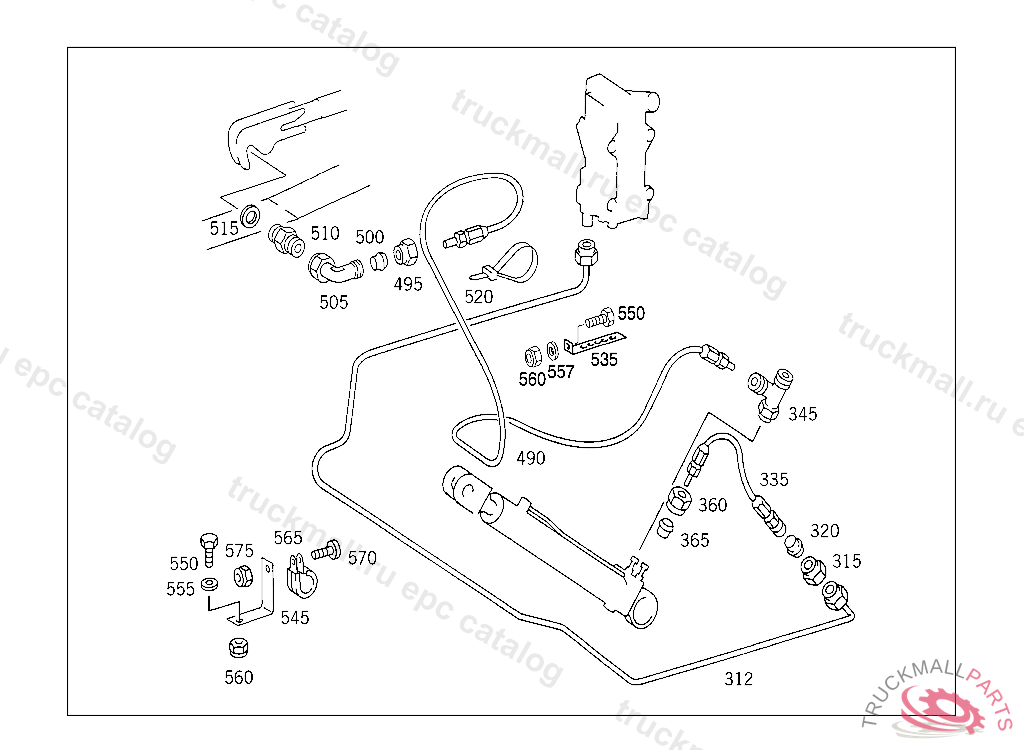

312
LINE FROM HAND PUMP TO HYDRAULIC CYLINDER
315
UNION NUT
320
GLAND , Replaced By: A0019901667
320
SEAL CONE
335
HOSE FROM HYDRAULIC LINE TO CYLINDER
345
T-FITTING EXHAUST-BRAKE POWER CYLINDER
360
UNION NUT
365
SEAL CONE
365
GLAND , Replaced By: A0019901667
490
HOSE FROM HAND PUMP TO HYDRAULIC CYLINDER
495
UNION NUT
500
SEAL CONE
500
GLAND , Replaced By: A0019901667
505
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
505
FITTING FROM PUMP TO CYLINDER
510
FITTING 3/2-WAY VALVE,CONNECTION: "30"
515
SEAL RING LINE CONNECTION
520
LOOM TIE LINE MOUNTING
535
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
535
BRACKET HEATING WATER LINE
545
BRACKET FUEL LINE TO BELL HOUSING
550
SCREW PIPE CLAMP
550
SCREW REAR EXHAUST PIPE TO MUFFLER
550
SCREW , Replaced By: N304017008021
555
WASHER SUPPORTING RAIL TO SUPPORT,5 429712
557
WASHER RADIATOR TO RUBBER MOUNTING
560
NUT , Replaced By: N913004008001
560
NUT STRAP TO BRACKET
560
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
560
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
560
NUT , Replaced By: N910113010000
565
CLAMP SENSOR CABLE TO FRONT AXLE
565
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
565
CLAMP ,K 147121, Replaced By: N000000000319
570
SCREW CLAMP TO BRACKET, Replaced By: N007985006581
570
SCREW CLAMP TO BRACKET
570
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
570
SCREW COMPRESSED AIR LINE TO BRACKET
570
SCREW , Replaced By: N304017008027
575
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
575
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
575
NUT , Replaced By: N913004006001
575
NUT , Replaced By: N913004008001
575
NUT PUMP TO BRACKET
575
NUT PUMP TO BRACKET
999
FITTING , Replaced By: A0019909871
999
WASHER , Replaced By: N000125010532
999
SCREW OIL FILLING TO 000 553 89 01
999
CYLINDER , Replaced By: A0015534705
999
PUMP (HAND PUMP), FOR COMPONENT PARTS SEE SPARE PARTS LIST
999
PISTON , Replaced By: A0005531990
999
VALVETO 000 553 88 01
999
GASKET KIT , Replaced By: A0005500507
