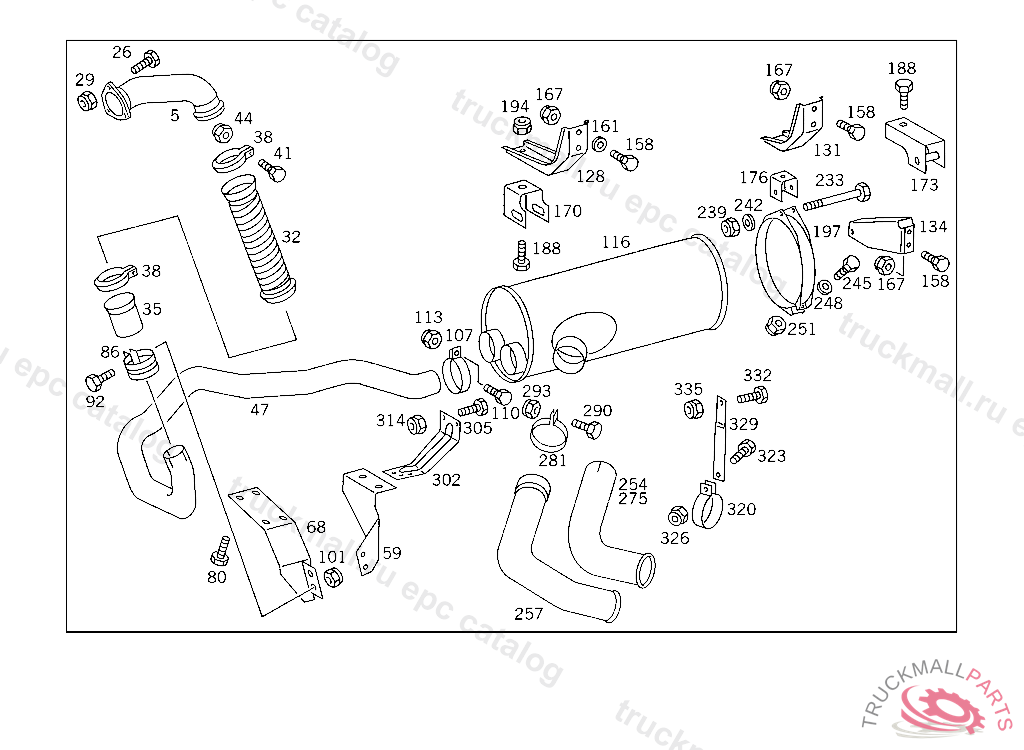

Поз.
Артикул
Описание
5
CONNECTOR FRONT EXHAUST PIPE,RIGHT
5
CONNECTOR FRONT EXHAUST PIPE,LEFT
26
SCREW CONNECTOR TO EXHAUST MANIFOLD
29
NUT CONNECTOR TO EXHAUST MANIFOLD
32
FLEXIBLE METAL TUBE CONNECTOR
35
COLLAR EXHAUST LINE FLEXIBLE METAL TUBE
38
CLAMP FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
41
SCREW , Replaced By: N304017008027
41
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
44
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
44
NUT , Replaced By: N913004008001
44
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
47
EXHAUST PIPE EXHAUST MUFFLER,LEFT
47
EXHAUST PIPE EXHAUST MUFFLER,RIGHT
59
BRACKET RIGHT EXHAUST PIPE
59
BRACKET RIGHT EXHAUST PIPE
86
CLAMP FLEXIBLE METAL TUBE TO EXHAUST PIPE
92
SCREW BRACKET TO SIDE MEMBER
92
SCREW , Replaced By: N304017010002
101
NUT , Replaced By: N910113010000
101
NUT STRAP TO BRACKET
107
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
110
SCREW BRACKET TO SIDE MEMBER
110
SCREW , Replaced By: N304017010002
113
NUT , Replaced By: N910113010000
113
NUT STRAP TO BRACKET
116
EXHAUST MUFFLER ,5 535800
116
EXHAUST MUFFLER
134
BRACKET EXHAUST MUFFLER SUSPENSION, TO BE ADAPTED DURING ASSEMBLY
134
BRACKET , Replaced By: A6194900040
134
BRACKET , Replaced By: A6194900040
134
BRACKET EXHAUST MUFFLER
158
SCREW BRACKET TO CAB CONSOLE,K 035197
167
NUT BRACKET TO SIDE MEMBER
167
NUT , Replaced By: N910113014001
197
STRAP EXHAUST MUFFLER TO BRACKET
233
SCREW STRAP TO BRACKET
239
NUT STRAP TO BRACKET
239
NUT , Replaced By: N910113010000
245
SCREW EXHAUST MUFFLER TO STRAP
248
WASHER EXHAUST MUFFLER TO STRAP
248
WASHER , Replaced By: N000125008443
251
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
251
NUT , Replaced By: N913004008001
251
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
257
END PIECE TAIL PIPE, NOT USED
257
END PIECE ,5 758825
281
CLAMP EXHAUST PIPE TO BRACKET
290
SCREW BRACKET TO SIDE MEMBER
290
SCREW , Replaced By: N304017010002
293
NUT , Replaced By: N910113010000
293
NUT STRAP TO BRACKET
302
BRACKET TAIL PIPE,5 914443
305
SCREW BRACKET TO SIDE MEMBER
314
NUT STRAP TO BRACKET
320
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
999
SPACER TUBE EXHAUST PIPE TO PROTECTIVE PLATE
