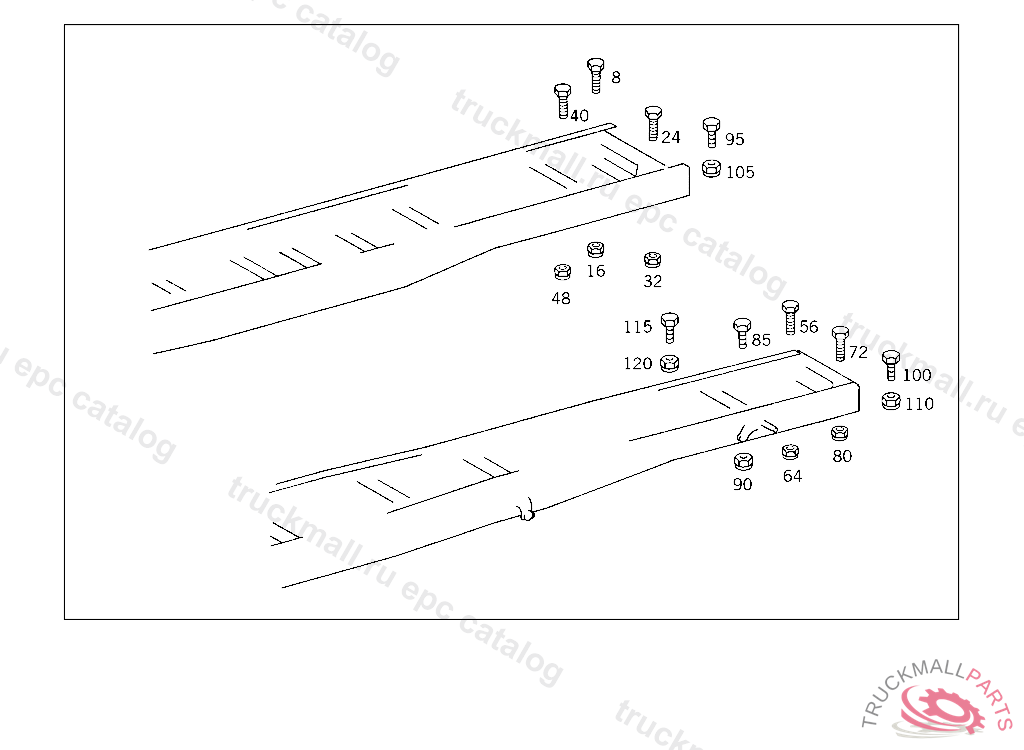

Поз.
Артикул
Описание
8
SCREW MOUNTING TO CONSOLE M 14X35
8
SCREW MOUNTING TO CONSOLE M 14X55
8
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
8
SCREW , Replaced By: N308676014020
8
SCREW , Replaced By: N308676014008
8
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
16
NUT , Replaced By: N910113014001
16
NUT , Replaced By: N910113014000
16
NUT STEERING SUPPORT TO FRAME
16
NUT BRACKET TO SIDE MEMBER
24
SCREW , Replaced By: N308676014020
24
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
32
NUT , Replaced By: N910113014001
32
NUT BRACKET TO SIDE MEMBER
40
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
40
SCREW BRACKET TO CAB CONSOLE,K 035197
40
SCREW FRONT SPRING REAR BRACKET TO CROSS MEMBER
48
NUT BRACKET TO SIDE MEMBER
48
NUT , Replaced By: N910113014001
56
SCREW SUPPORT TO SIDE MEMBER
56
SCREW BRACKET TO FRAME M 12X35
64
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
64
NUT , Replaced By: N910113012003
72
SCREW , Replaced By: N308676012012
72
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
80
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
80
NUT , Replaced By: N910113012003
85
SCREW , Replaced By: A0009903204
85
SCREW GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
90
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
95
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
95
HEXAGON HEAD BOLT , Replaced By: A0029902704
95
SCREW , Replaced By: N308676012013
95
SCREW , Replaced By: N308676012012
100
SCREW BRACKET TO SIDE MEMBER
105
NUT , Replaced By: N910113012003
105
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
110
NUT , Replaced By: N910113014001
110
NUT BRACKET TO SIDE MEMBER
115
SCREW , Replaced By: A9429901304
115
SCREW APPARATUS SUPPORT TO FRAME
120
NUT STEERING SUPPORT TO FRAME
120
NUT , Replaced By: N910113014000
999
NUT STRAP TO SUPPORT
999
SCREW EXHAUST PIPE TO BRACKET
999
SCREW VERTICAL TAIL PIPE BEHIND CAB
999
SCREW , Replaced By: N910105014010
999
WASHER REAR CROSS MEMBER TO LEFT AND RIGHT SIDE MEMBERS
999
NUT BRACKET TO SIDE MEMBER
999
SCREW , Replaced By: N308676014020
999
SCREW BRACKET TO SIDE MEMBER M 14X1.5X50,5 543914
999
HEXAGON HEAD BOLT. SCREW BRACKET TO CONSOLE
999
NUT , Replaced By: N910113014001
999
NUT , Replaced By: N910113014000
