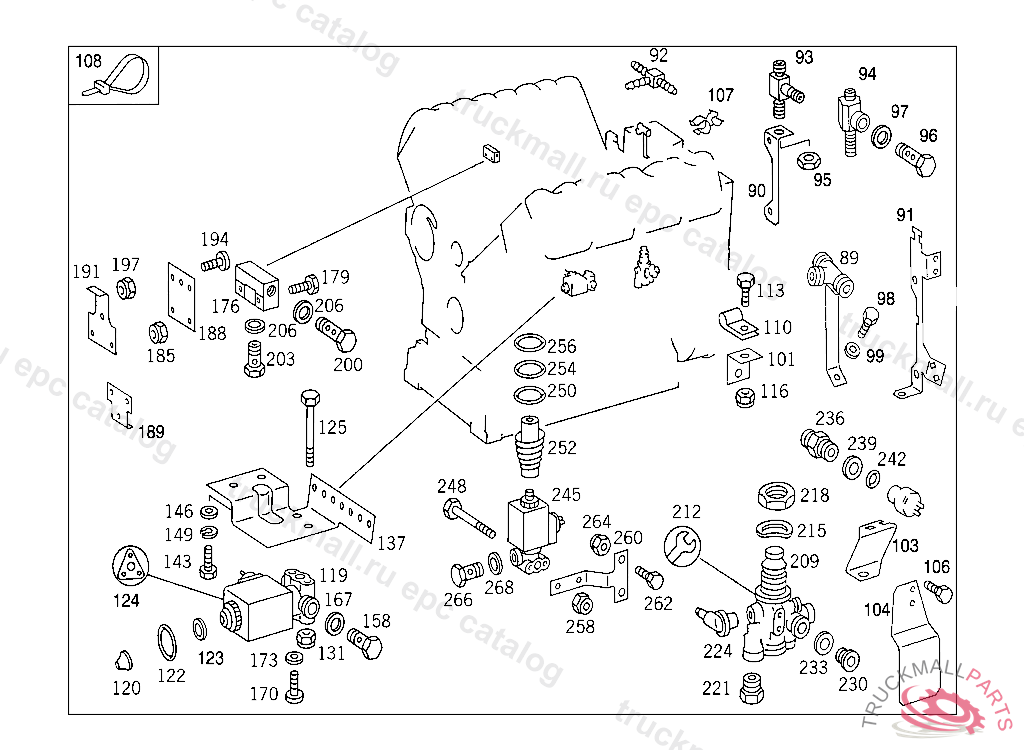

Поз.
Артикул
Описание
92
T-FITTING EXHAUST BRAKE LINE CONNECTION
107
LOOM TIE BRAKE LINE MOUNTING
108
LOOM TIE LINE MOUNTING 280 MM
108
LOOM TIE LINE MOUNTING
119
VALVE (3/2-WAY SOLENOID VALVE) EKS
120
PROTECTIVE CAPWABCO
122
SEAL RINGBOSCH
122
SEAL RINGWABCO
123
SEAL RINGBOSCH
124
GASKET KITKNORR
125
SCREW VALVE TO BRACKET
125
SCREW VALVE TO BRACKET, Replaced By: N304014008002
131
NUT , Replaced By: N913004008001
131
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
131
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
137
BRACKET 3/2-WAY SOLENOID VALVE
137
BRACKET 3/2-WAY SOLENOID VALVE
143
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
143
SCREW , Replaced By: N304017008016
146
WASHER , Replaced By: N000125008443
146
WASHER EXHAUST MUFFLER TO STRAP
149
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
158
HOLLOW SCREW HEATING CONNECTION
167
SEAL RING LINE CONNECTION
170
SCREW TO PLUG THE FREE CONNECTIONS
173
SEAL RINGBOSCH
176
VALVE SHUTTLE VALVE, REPAIR IMPOSSIBLE
179
SCREW TWO-WAY VALVE TO BRACKET
185
NUT TWO-WAY VALVE TO BRACKET
188
BRACKET 3/2-WAY SOLENOID VALVE
194
SCREW OIL TANK TO BRACKET
197
NUT PUMP TO BRACKET
197
NUT , Replaced By: N913004006001
200
HOLLOW SCREW TWO-WAY VALVE,CONNECTIONS: "11,12"
203
HOLLOW SCREW FUEL LINE TO FEED PUMP
203
HOLLOW SCREW , Replaced By: N915036010108
206
SEAL RING FUEL LINE TO FEED PUMP
209
VALVE 3/2-WAY, EXHAUST BRAKE CONTROL WABCO
209
VALVE 3/2-WAY, EXHAUST BRAKE CONTROL BOSCH
212
REPAIR KIT 3/2-WAY VALVE BOSCH
212
REPAIR KIT 3/2-WAY VALVE WABCO
215
SPRING WASHER AT CAB FLOOR
218
NUT SUCTION LINE TO OIL PUMP
221
SCREW. UNION SCREW , Replaced By: A0009973734
221
SCREW. UNION SCREW LINE CONNECTION
224
BREATHER , Replaced By: A3933280065
224
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
230
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
230
SCREW PLUG , Replaced By: N000908012009
233
SEAL RING LINE CONNECTION
236
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
239
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
239
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
242
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "40"
999
SHIM 3/2-WAY SOLENOID VALVE
