Mercedes N913004010011 - ГАЙКА-MUTTER

3229 B 625.105

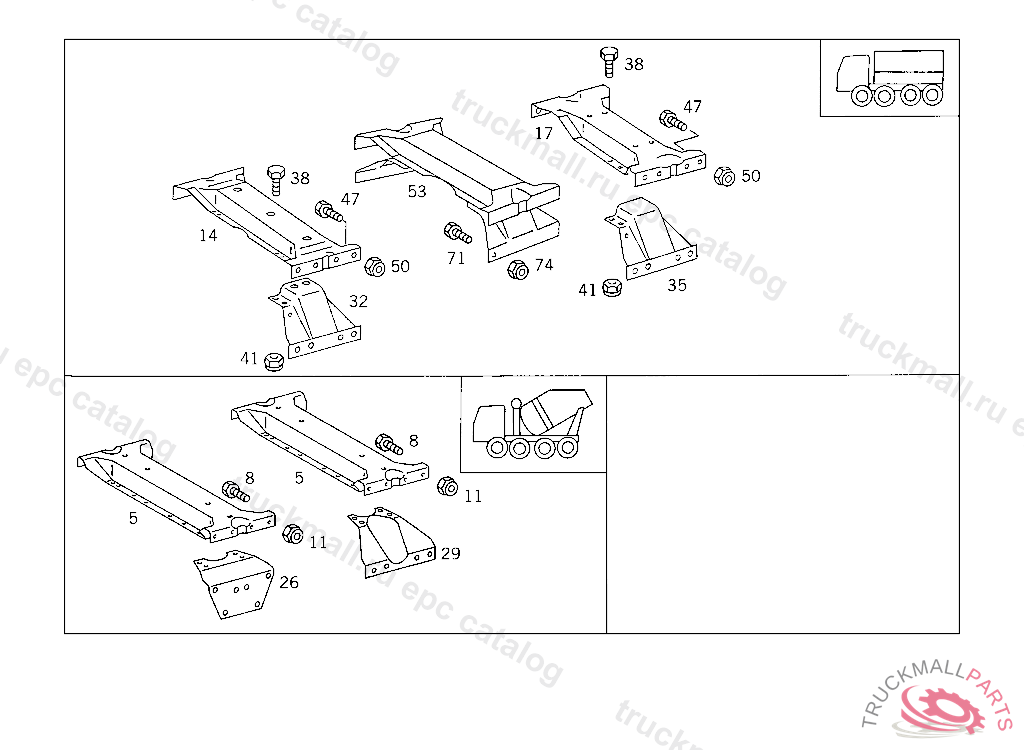

31 FRAME - 120 FRAME ASSEMBLY, SCREW CONNECTION PARTS

Поз.
Артикул
Описание
5
A6173120117
CROSS MEMBERNO.5A
5
A3813120017
CROSS MEMBERNO.2A
8
N000933010276
SCREW INTAKE SCOOP TO FRAME
8
N308676014003
HEXAGON HEAD BOLT. SCREW ENGINE MOUNTING TO SUPPORT,ON CLUTCH END M 14X30
8
N000961014008
SCREW , Replaced By: N308676014003
11
N913004014005
NUT , Replaced By: N910113014000
11
A0009906550
NUT EXHAUST PIPE TO SIDE MEMBER
11
N910113014000
NUT STEERING SUPPORT TO FRAME
11
N913004010011
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
26
A6253100071
GUSSET PLATE LEFT AND RIGHT, TO BE ADAPTED DURING ASSEMBLY
29
A3833120360
REINFORCEMENT LEFT AND RIGHT TO 617 312 01 17
