Поз.
Артикул
Описание

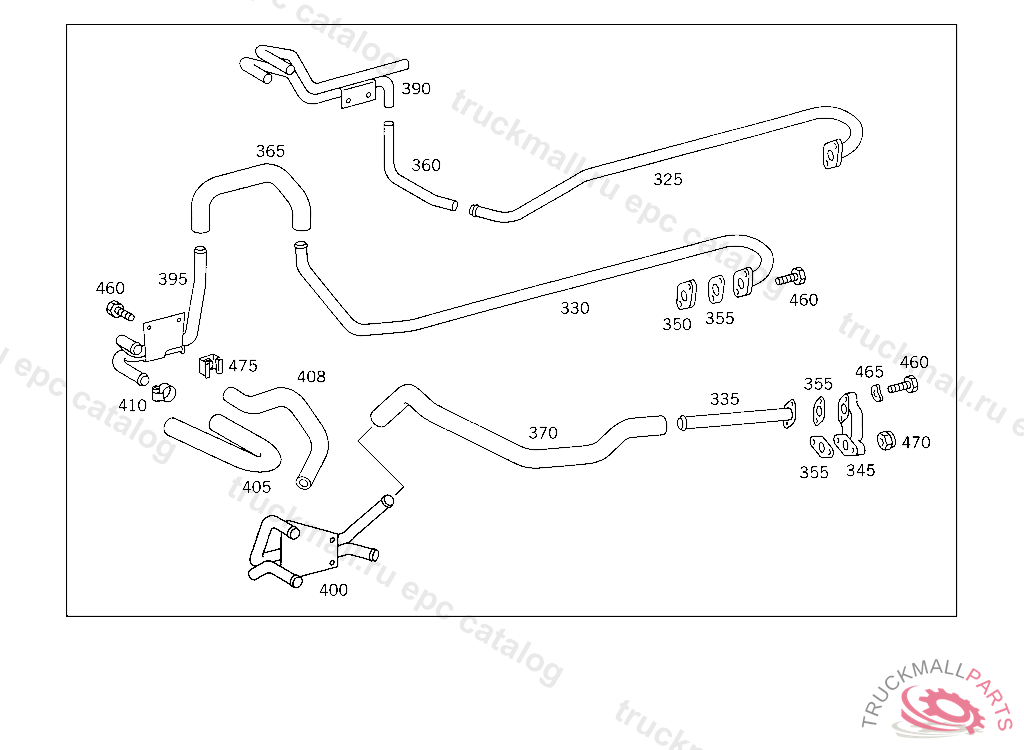

325
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
325
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
325
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
325
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
330
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
330
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
330
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
330
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
330
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
330
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
330
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
330
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
330
LINE HEATING AND BREATHING,5 549076
335
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
335
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
335
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
335
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
345
FLANGE
350
FLANGE (BLIND FLANGE)
355
GASKET HEATING PIPE TO ENGINE
360
HOSE FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR
360
HOSE FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR, ORDER BY THE METER
360
HOSE FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR
360
HOSE FROM BUBBLE SEPARATOR TO HEATING PIPE 18X27 MM, ORDER BY THE METER
365
HOSE FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR
365
HOSE FROM HEATING PIPE AT RADIATOR TO CAB HEATING PIPE
370
HOSE FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR
390
LINE HEATING AND BREATHING
390
LINE HEATING AND BREATHING
395
LINE HEATING AND BREATHING
395
LINE HEATING AND BREATHING
395
LINE ,5 920677, Replaced By: A6525001072
395
LINE HEATING AND BREATHING
395
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
395
LINE HEATING AND BREATHING
395
LINE HEATING AND BREATHING
395
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
395
LINE HEATING AND BREATHING
400
LINE HEATING AND BREATHING
405
HOSE FROM HEATING PIPE AT RADIATOR TO CAB HEATING PIPE
405
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
405
HOSE FROM HEATING PIPE AT RADIATOR TO CAB HEATING PIPE
405
HOSE FROM HEATING PIPE AT RADIATOR TO CAB HEATING PIPE
408
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
410
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
410
CLAMP HOSE 70-90X13 MM
410
CLAMP HOSE TO FITTING AND TO OIL TANK
410
CLAMP , Replaced By: N000000000670
410
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
410
CLAMP , Replaced By: N000000000674
410
CLAMP , Replaced By: N000000000671
410
CLAMP , Replaced By: N000000000667
410
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
460
SCREW BRACKET ON LOAD SENSOR
460
SCREW , Replaced By: N304017010051
460
SCREW , Replaced By: A0099900101
460
SCREW , Replaced By: N304017008021
460
SCREW , Replaced By: N000933008337
460
SCREW
460
SCREW STRAP TO BRACKET
460
SCREW END PIECE TO EXHAUST PIPE M 10X25
460
SCREW BRACKET TO FRAME SIDE MEMBER
460
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
460
SCREW SUPPORT TO FENDER
460
SCREW PIPE CLAMP
460
SCREW COVER PLATE TO BRACKET
460
SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
460
SCREW PUMP TO BRACKET
465
SPRING WASHER , Replaced By: N000137008212
465
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
470
NUT PUMP TO BRACKET
470
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
470
NUT STRAP TO BRACKET
470
NUT , Replaced By: N910113010000
470
NUT , Replaced By: N913004008001
470
NUT , Replaced By: N913004006001
475
NUT RETAINER , Replaced By: A0019906791
475
NUT RETAINER LICENSE PLATE TO BRACKET
999
BREATHER PIPE FROM ENGINE TO EXPANSION TANK
999
OUTLET AT WATER PUMP
999
LINE FEED AND RETURN LINES TO HEATING
