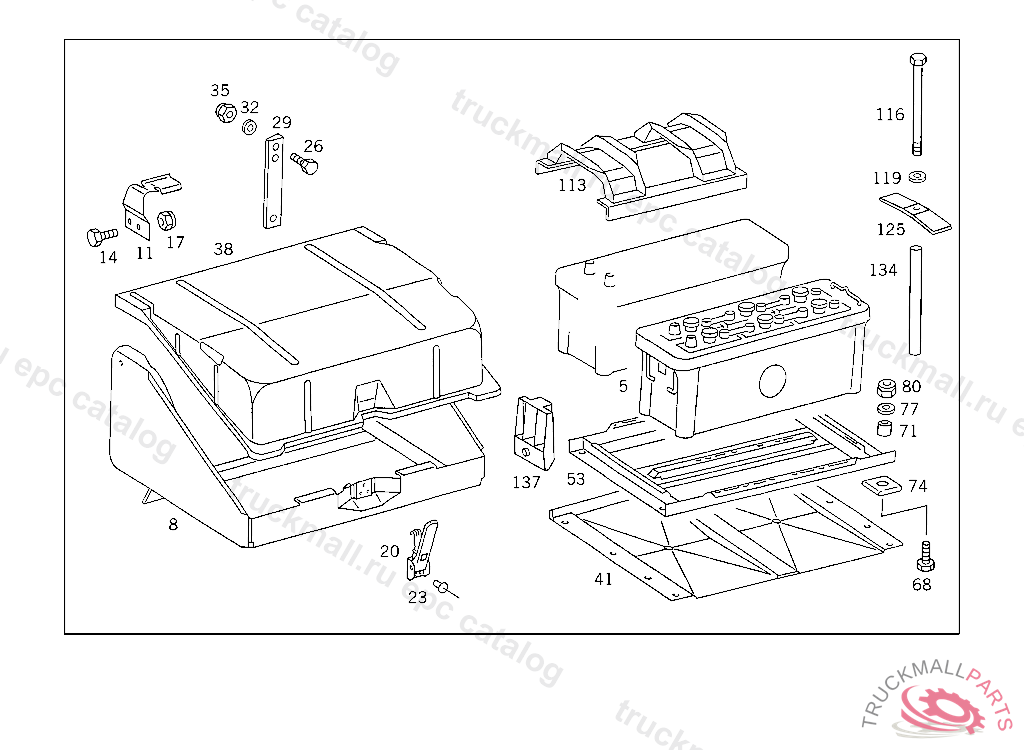

Поз.
Артикул
Описание
5
BATTERY FILLED AND CHARGED 12V/170AH
5
BATTERY12V/120 AH
5
BATTERY FILLED AND CHARGED 12V/180AH
5
BATTERY FILLED AND CHARGED 12V/220AH
5
BATTERY FILLED AND CHARGED 12V/200AH
5
BATTERY , Replaced By: A0035418801
5
BATTERY , Replaced By: A0045415101
5
BATTERY12 V/165 AH
5
BATTERY12 V/135 AH
5
BATTERY12 V/115 AH
8
BATTERY SUPPORT APPARATUS
11
BRACKET BATTERY/APPARATUS SUPPORT,RIGHT
11
BRACKET BATTERY/APPARATUS SUPPORT,LEFT
14
SCREW LICENSE PLATE TO BRACKET
14
SCREW , Replaced By: N304017006020
17
NUT , Replaced By: N913004006001
17
NUT PUMP TO BRACKET
20
FASTENING CLAMP BATTERY/APPARATUS SUPPORT
20
LOCKING HANDLE BATTERY/APPARATUS SUPPORT, Replaced By: A9609880142
23
RIVET LOCKING LEVER TO BATTERY/APPARATUS SUPPORT
26
SCREW BRACKET TO CAB CONSOLE,K 035197
26
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
29
SHIM SUPPORT TO SIDE MEMBER
29
SHIM SUPPORT TO SIDE MEMBER
32
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
32
WASHER SPARE WHEEL CARRIER
32
WASHER , Replaced By: N000125015019
35
NUT , Replaced By: N910113014001
35
NUT BRACKET TO SIDE MEMBER
38
COVER BATTERY/APPARATUS SUPPORT
41
BATTERY CASE
53
RAIL. BATTERY BASE FRAME
68
SCREW BRACKET TO FRAME SIDE MEMBER
71
SPACER TUBE BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT
74
INSULATING PLATE BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT
77
WASHER STRUT TO CROSS MEMBER
77
WASHER , Replaced By: N007349010007
80
NUT STRAP TO BRACKET
80
NUT , Replaced By: N910113010000
113
MOUNTING FRAME BATTERY
116
SCREW BATTERY MOUNTING M 8X260X40
119
WASHER BRACKET TO LEFT SIDE MEMBER
119
WASHER , Replaced By: N009021008213
125
BRACKET , Replaced By: A6205410526
125
BRACKET BATTERY MOUNTING,5 928008 FROM IDENT NO. 5 928009 SEE SA 46975
134
SPACER TUBE BATTERY MOUNTING,5 928008 FROM IDENT NO. 5 928009 SEE SA 46975
137
STOP BATTERY MOUNTING
999
BLIND CAPTO A 004 541 48 01
