Поз.
Артикул
Описание
5

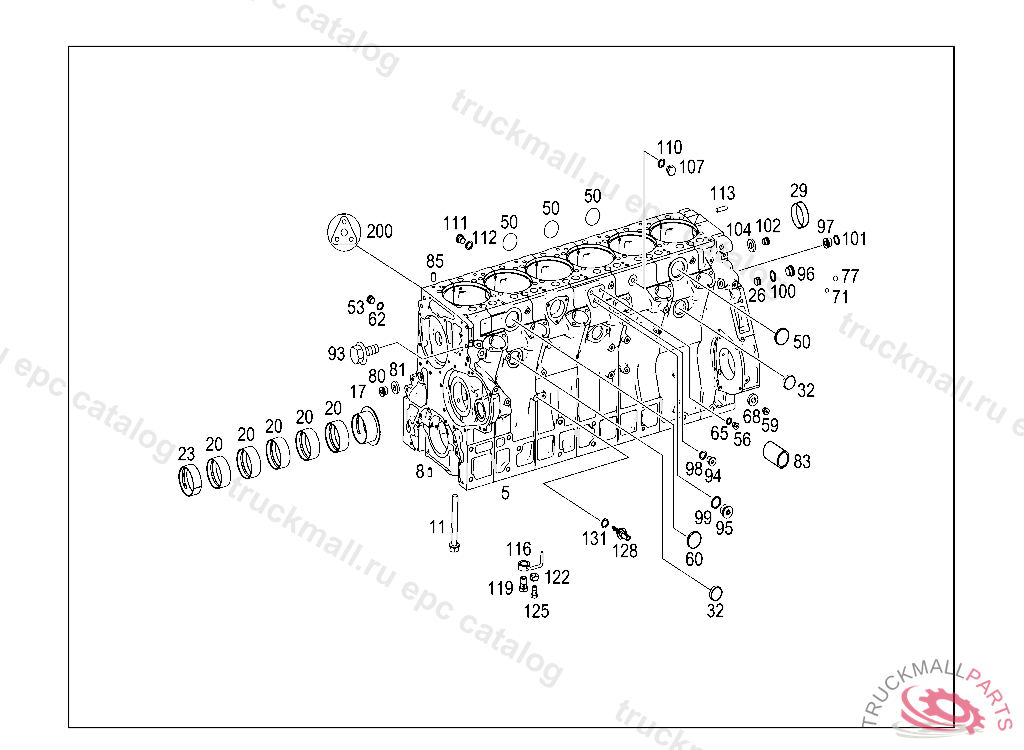

CRANKCASE WITH CYLINDER LINERS, AS OF ENGINE 813072
8
DOWEL PIN CRANKSHAFT BEARING CAP
11
SCREW , TO BE ADAPTED DURING ASSEMBLY
11
SCREW CRANKSHAFT BEARING CAP TO CYLINDER CRANKCASE M 18X2X153/35 MM
11
SCREW CRANKSHAFT BEARING CAP TO CYLINDER CRANKCASE M 18X2X153/35 MM
17
CAMSHAFT BEARING WITH COLLAR
20
CAMSHAFT BEARING STANDARD 35 MM
20
CAMSHAFT BEARING STANDARD 35 MM
23
CAMSHAFT BEARING STANDARD 30 MM
26
SCREW PLUG OIL-FILTER/LONGITUDINAL-DUCT CONNECTION BORE
29
EXPANSION PLUG P.T.O. HOUSING
32
EXPANSION PLUG P.T.O. HOUSING
50
EXPANSION PLUG TO LOCK LONGITUDINAL COOLING WATER DUCT 50.1 MM
53
SCREW PLUG, FILLING HOUSING,BOTTOM M18X1.5
56
SCREW PLUG , Replaced By: N000908014009
59
SCREW PLUG , Replaced By: N000908014009
60
EXPANSION PLUG CAP FOR OIL DUCT ON UNIT PUMP SIDE
62
SEALING RING OIL LINE TO CYLINDER CRANKCASE
65
SEALING RING
68
SEALING RING
71
BALL INTERMEDIATE FLANGE
71
BALL , UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817,INAPPLICABLE TO R.H.D.AND SUPERCHARGED ENGINE VEHICLES
71
BALL SHIFTING CYLINDER
71
BALL FRONT AND REAR 14.288 MM
77
BALL , UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817,INAPPLICABLE TO R.H.D.AND SUPERCHARGED ENGINE VEHICLES
80
OIL NOZZLE PTO BORE HOLES COVER
81
SEALING RING OIL LINE TO CYLINDER CRANKCASE
83
THROTTLE FUEL BORE COVER,UNIT PUMP SIDE
85
CYLINDER PIN
93
SCREW. HEXAGON HEAD BOLT BRACKET MOUNTING M14X1.5X25,V 207570
94
SCREW PLUG , Replaced By: N000908014009
97
SCREW PLUG, FILLING. SCREW PLUG LONGITUDINAL OIL DUCT COVER ON OIL COOLER SIDE M16X1,5
98
SEALING RING
101
SEALING RING OIL PRESSURE GAUGE SENDER UNIT
107
SCREW PLUG, FILLING. SCREW PLUG LONGITUDINAL OIL DUCT COVER ON OIL COOLER SIDE M16X1,5
107
SCREW PLUG, FILLING. SCREW PLUG PLUG FOR OIL DUCT ON OIL COOLER SIDE OF CRANKCASE
110
SEALING RING OIL PRESSURE GAUGE SENDER UNIT
111
SCREW PLUGTO 000 553 03 05,000 553 18 05,
111
SCREW PLUG FUEL TANK
112
SEALING RING
113
CYLINDRICAL PIN TIMING CASE FIXING 16X24
116
OIL NOZZLE PISTON COOLING
119
HOLLOW SCREW OIL SPRAY NOZZLE TO CYLINDER CRANKCASE
122
OIL NOZZLE CAM LUBRICATION
122
OIL NOZZLE CAM LUBRICATION
122
OIL NOZZLE CAM LUBRICATION BANDABLAUF 12/07, ZAM 441/07, C 74310, EXHAUST STOCK OF OLD PARTS UP TO ENGINE 131006, Replaced By: A4571801843
122
OIL NOZZLE CAM LUBRICATION, Replaced By: A4601800643
125
HOLLOW SCREW BREATHER LINE TO HEAT EXCHANGER
128
SENDER UNIT TEMPERATURE SENDER UNIT
128
SENDER UNIT TEMPERATURE GAUGE SENDER UNIT
131
SEAL RING INJECTION PUMP
200
CRANKCASE GASKET KIT
999
SCREW PLUG OIL COOLER,5 360280
999
ENGINE PLEASE OBSERVE INFORMATION IN FDOK "COMPLETE", ORDER ENGINE IN BRAZIL WITH SPEC. OF VIN OR ENGINE NUMBER
999
SEAL RING
999
THREADED PIN PROPELLER SHAFT
