Mercedes N910105008005 - БОЛТ М8

OM 460 LA EPA 07 460.980

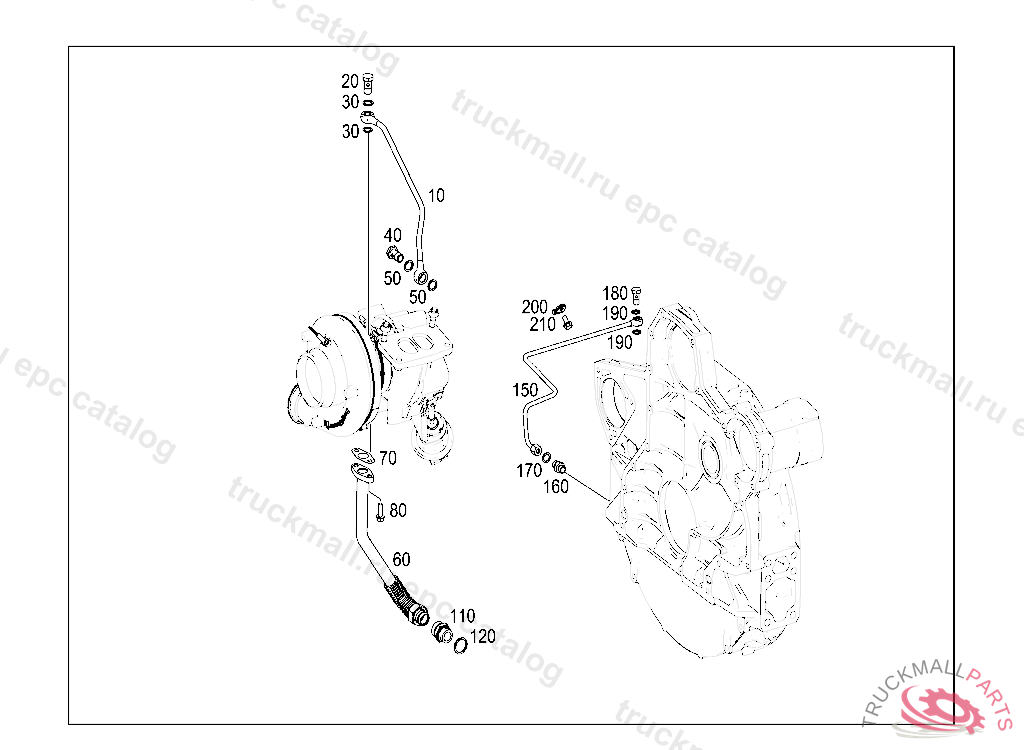

01 ENGINE HOUSING - 015 CYLINDER CRANKCASE,COVER,GASKET KIT IL. 2

Поз.
Артикул
Описание
10
A4601801020
OIL LINE
20
A3649900063
HOLLOW SCREW FUEL LINE TO FEED PUMP
30
N000000001069
SEALING RING
40
N915036012102
HOLLOW SCREW OIL LINE
50
N000000001070
SEALING RING OIL PRESSURE GAUGE SENDER UNIT
60
A4601800422
OIL LINE (OIL RETURN PIPE)
70
A5411870080
GASKET OIL RETURN LINE TO TURBOCHARGER
80
N910105008005
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
80
N000000004824
HEXAGON HEAD BOLT OIL RETURN LINE TO EXHAUST GAS TURBOCHARGER M8X25
110
N915023022000
FITTING OIL RETURN LINE TO CYLINDER CRANKCASE
120
N000000001073
SEAL RING
150
A4601800820
OIL LINE OIL DELIVERY LINE P.T.O.
150
A4601801420
OIL LINE OIL DELIVERY LINE P.T.O.
160
N915027000003
FITTING FUEL-OIL TANK
170
N000000001069
SEALING RING
180
N915036008101
BANJO BOLT. HOLLOW SCREW
190
N000000001068
SEALING RING AT PRESSURE REGULATOR
200
N916016008205
CLAMP
210
N910105008008
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL M8X16 MM
