Поз.
Артикул
Описание

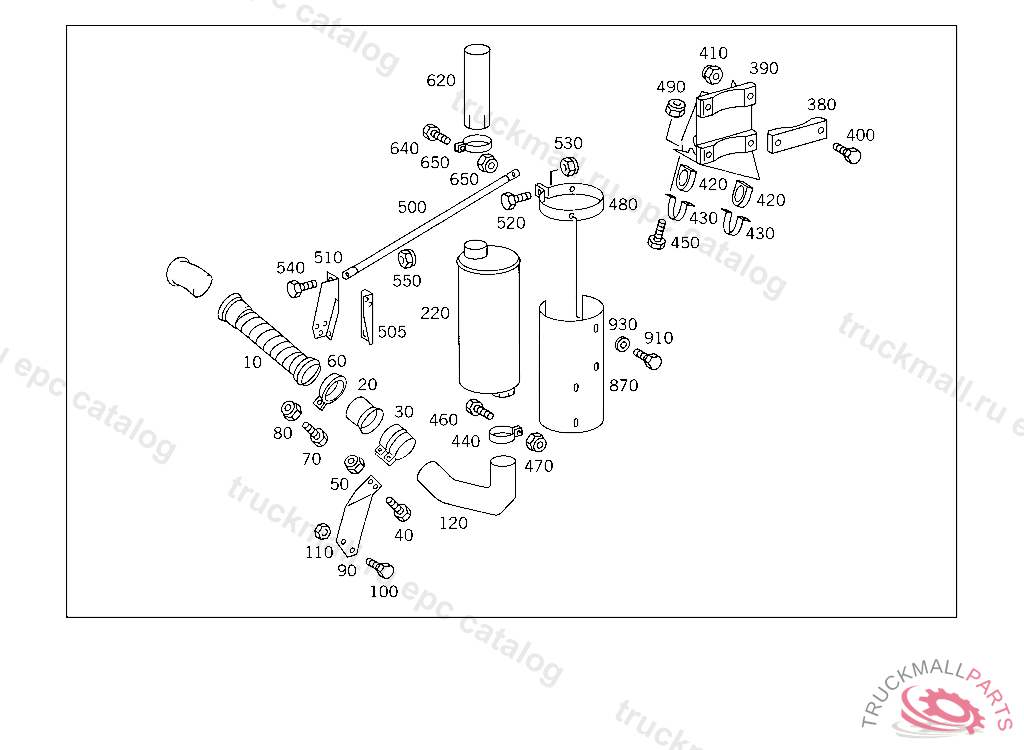

10
FLEXIBLE METAL TUBE FRONT LEFT
20
COLLAR (SLIDING COLLAR)
30
CLAMP EXHAUST PIPE TO BRACKET
40
SCREW BRACKET TO SIDE MEMBER
40
SCREW , Replaced By: N304017010002
50
NUT , Replaced By: N910113010000
50
NUT STRAP TO BRACKET
60
CLAMP FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
70
SCREW SUPPORT TO FENDER
70
SCREW , Replaced By: N304017008018
80
NUT , Replaced By: N913004008001
80
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
90
BRACKET AT SIDE MEMBER
100
SCREW , Replaced By: N308676014020
100
SCREW BRACKET TO FRAME M 12X35
100
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
110
NUT STRAP TO SUPPORT
110
NUT BRACKET TO SIDE MEMBER,K 035196
110
NUT , Replaced By: N308673014001
120
EXHAUST PIPE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 122656, Replaced By: A6254903920
120
EXHAUST PIPE FRONT
120
EXHAUST PIPE FRONT
120
EXHAUST PIPE FRONT
120
EXHAUST PIPE FRONT
120
EXHAUST PIPE FRONT
220
EXHAUST MUFFLER
380
BRACKET AT FRAME
380
BRACKET MUFFLER,K 039135
380
BRACKET AT FRAME
380
BRACKET , Replaced By: A6254903640
390
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 235495, Replaced By: A6254903640
390
BRACKET MUFFLER
400
SCREW , Replaced By: N304017010002
400
SCREW , Replaced By: N308676014020
400
SCREW BRACKET TO SIDE MEMBER
400
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
410
NUT STEERING SUPPORT TO FRAME
410
NUT STRAP TO BRACKET
410
NUT , Replaced By: N910113010000
410
NUT , Replaced By: N910113014000
420
RUBBER MOUNTING BRACKET TO EXHAUST MUFFLER BRACKET, Replaced By: A6254910085
420
RUBBER MOUNTING BRACKET TO EXHAUST MUFFLER BRACKET
430
CLAMP BRACKET TO BRACKET ON FRAME SIDE MEMBER
440
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
450
SCREW BRACKET TO APPARATUS SUPPORT M 10X30
460
SCREW BRACKET TO SIDE MEMBER
460
SCREW END PIECE TO EXHAUST PIPE M 10X25
460
SCREW , Replaced By: N304017010002
470
NUT , Replaced By: N910113010000
470
NUT STRAP TO BRACKET
470
NUT REINFORCEMENT TO BRACKET
470
NUT EXHAUST PIPE TO SIDE MEMBER
480
STRAP EXHAUST MUFFLER
480
STRAP EXHAUST MUFFLER
480
STRAP EXHAUST MUFFLER TO BRACKET
480
STRAP EXHAUST MUFFLER TO BRACKET
490
NUT , Replaced By: N910113010000
490
NUT STRAP TO BRACKET
500
BRACKET EXHAUST MUFFLER
500
BRACKET EXHAUST MUFFLER
500
BRACKET AT FRAME
500
BRACKET EXHAUST MUFFLER
500
BRACKET EXHAUST MUFFLER
505
BRACKET EXHAUST MUFFLER
510
BRACKET EXHAUST MUFFLER
510
BRACKET EXHAUST MUFFLER
510
BRACKET EXHAUST MUFFLER
520
SCREW END PIECE TO EXHAUST PIPE M 10X25
520
SCREW EXHAUST PIPE TO BRACKET
530
NUT , Replaced By: N910113010000
530
NUT STRAP TO BRACKET
540
SCREW BRACKET TO CAB CONSOLE,K 035197
540
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
540
SCREW BRACKET TO SIDE MEMBER
540
SCREW , Replaced By: N304017010002
540
SCREW , Replaced By: N308676014020
550
NUT , Replaced By: N308673014001
550
NUT , Replaced By: N910113010000
550
NUT STRAP TO BRACKET
550
NUT BRACKET TO SIDE MEMBER,K 035196
620
END PIECE BEHIND CAB,UPWARD
640
SCREW REAR EXHAUST PIPE TO MUFFLER
640
SCREW BRACKET TO SIDE MEMBER
640
SCREW , Replaced By: N304017010002
650
NUT , Replaced By: N910113010000
650
NUT STRAP TO BRACKET
870
PROTECTIVE PLATE (HEAT SHIELD),EXHAUST MUFFLER
910
SCREW CLAMP TO BRACKET AND TO PIPE
930
WASHER EXHAUST MUFFLER TO STRAP
930
WASHER , Replaced By: N000125008443
999
NUT BRACKET TO BRACKET
999
NUT CONSOLE TO SIDE MEMBER
999
SCREW , Replaced By: N910142008009
999
SCREW BRACKET TO FRAME
999
BRACKET LEFT
999
BRACKET LEFT FENDER
999
EXHAUST PIPE FRONT
999
CLAMP
999
BRACKET
999
EXHAUST MUFFLER
999
EXHAUST PIPE FRONT
999
END PIECE
999
WASHER
999
NUT BRACKET TO SIDE MEMBER
999
STUD BOLT BELL HOUSING, 760272 10/20 UP TO IDENT NO. 922885 EXCEPT FOR 921682,921950,921972,921994,922001,922008,922038,922287,922349,922387,922522,922575,922585,922608, 922638,922642,922671,922678,922686,922691,922705,922720,922723,922732,922736,922756,922768,922850, 922855. ALSO INSTALLED ON 934036,934433,934539,935068,935169,937098 50/60 UP TO IDENT NO. 922468 ON 96 KW (130 PS) 50/60 UP TO IDENT NO. 923153 ON 124 KW (168 PS)
999
SCREW CONSOLE TO SIDE MEMBER
999
CLAMP SLIDING PIECE TO EXHAUST PIPE
999
HEXAGON HEAD BOLT. SCREW BRACKET TO FRAME M 10X30
999
NUT , Replaced By: N913023010002
999
NUT SUPPORT TO SIDE MEMBER
999
SCREW CLAMP TO BRACKET,5 597426
999
NUT , Replaced By: N910113010000
999
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
999
NUT REINFORCEMENT TO BRACKET
