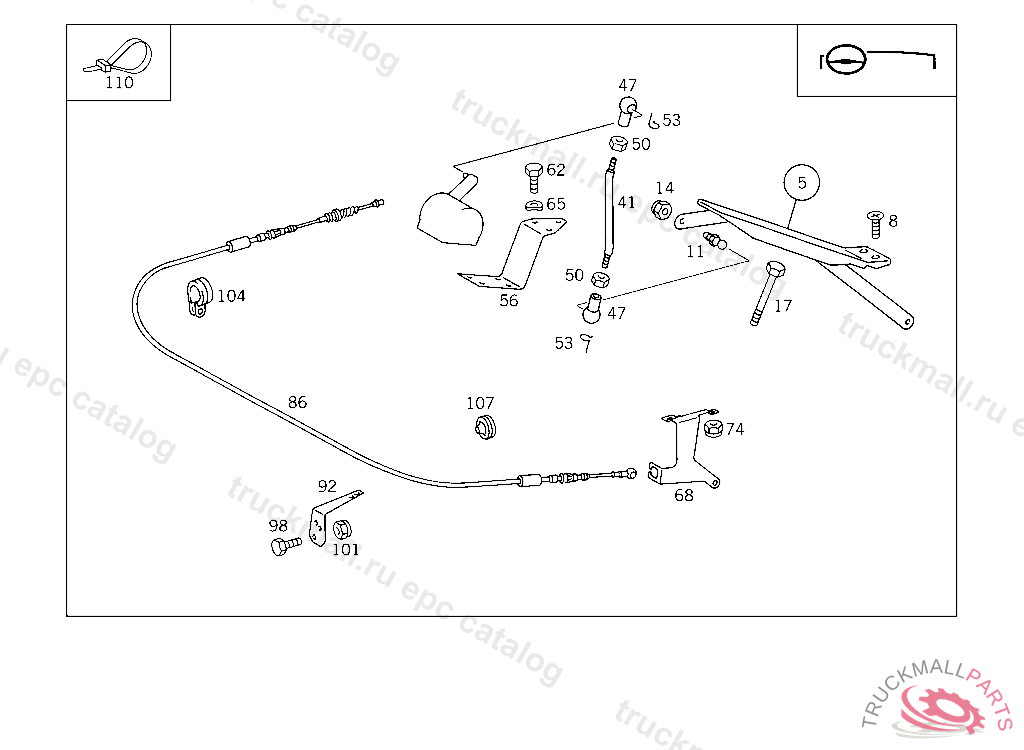

Поз.
Артикул
Описание
5
ACCELERATOR PEDAL , Replaced By: A6583000004
5
ACCELERATOR PEDAL PARTS KIT
8
SCREW GUIDE RAIL RETROFIT M 6X35, BORE THREADED HOLES IN CAB FLOOR TO 6.5MM
11
BALL PIVOT LOAD SENSOR
14
NUT PUMP TO BRACKET
14
NUT , Replaced By: N913004006001
17
SCREW STRAP TO BRACKET
41
ROD FROM ACCELERATOR PEDAL TO SENDER UNIT,K 022896
41
PULL ROD LOAD SENSOR CONTROL, TO BE ADAPTED DURING ASSEMBLY
47
BALL SOCKET PULL ROD TO LEVER
47
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
50
NUT BALL PIVOT TO LEVER
53
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
56
BRACKET SENDER UNIT
62
SCREW PUMP TO BRACKET
62
SCREW , Replaced By: N304017006016
65
SPRING WASHER LICENSE PLATE TO BRACKET
68
BRACKET WIRE CABLE
74
NUT , Replaced By: N913004006001
74
NUT PUMP TO BRACKET
86
WIRE CABLE EMERGENCY DRIVE REGULATION
86
WIRE CABLE EMERGENCY DRIVE REGULATION
86
WIRE CABLE EMERGENCY DRIVE REGULATION
92
BRACKET WIRE CABLE
98
SCREW BRACKET TO CROSS CONNECTION STRUT
98
SCREW , Replaced By: N304017008034
101
NUT , Replaced By: N913004008001
101
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
104
CLAMP SENSOR CABLE TO BRACKET
107
GROMMET FOR PASSAGE OF LINE
110
LOOM TIE LINE MOUNTING 280 MM
999
ROD FROM INTERMEDIATE LEVER TO ENGINE CONTROL SHAFT,K 093739
999
LEVER (INTERMEDIATE LEVER)
999
BEARING BRACKET INTERMEDIATE BEARING,5 324164
999
WIRE CABLE MANUAL CONTROL, REPAIR IMPOSSIBLE
999
LEVER (INTERMEDIATE LEVER)
999
BRACKET WIRE CABLE TO RADIATOR MOUNTING
999
SHIM
999
WIRE CABLE MANUAL CONTROL
999
WIRE CABLE MANUAL CONTROL
999
WIRE CABLE MANUAL CONTROL, REPAIR IMPOSSIBLE
999
WIRE CABLE MANUAL CONTROL
999
WIRE CABLE MANUAL CONTROL, REPAIR IMPOSSIBLE
999
WIRE CABLE MANUAL CONTROL, REPAIR IMPOSSIBLE
999
WIRE CABLE MANUAL CONTROL, REPAIR IMPOSSIBLE
999
BEARING BRACKET INTERMEDIATE BEARING
999
KNOB IDLING ADJUSTMENT
999
BRACKET WIRE CABLE TO AIR BAFFLE BRACKET
999
BRACKET WIRE CABLE TO FRAME SIDE MEMBER
999
ROD FROM ACCELERATOR PEDAL TO INTERMEDIATE LEVER
999
BEARING BRACKET INTERMEDIATE LEVER
999
ROD FROM CONTROL SHAFT BEARING TO INTERMEDIATE LEVER
999
WIRE CABLE MANUAL CONTROL, REPAIR IMPOSSIBLE
999
LEVER (INTERMEDIATE LEVER)
999
BEARING BRACKET INTERMEDIATE BEARING
999
ACCELERATOR PEDAL , Replaced By: A6583000004
999
LEVER INTERMEDIATE BEARING
999
LEVER (INTERMEDIATE LEVER)
999
BEARING BRACKET INTERMEDIATE BEARING
999
LEVER INTERMEDIATE BEARING
999
ROD LOAD SENSOR CONTROL
999
ROD FROM CONTROL SHAFT BEARING TO ENGINE SHAFT
999
COVERING INTERMEDIATE BEARING
999
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
999
ROD FROM ACCELERATOR PEDAL TO INTERMEDIATE LEVER
