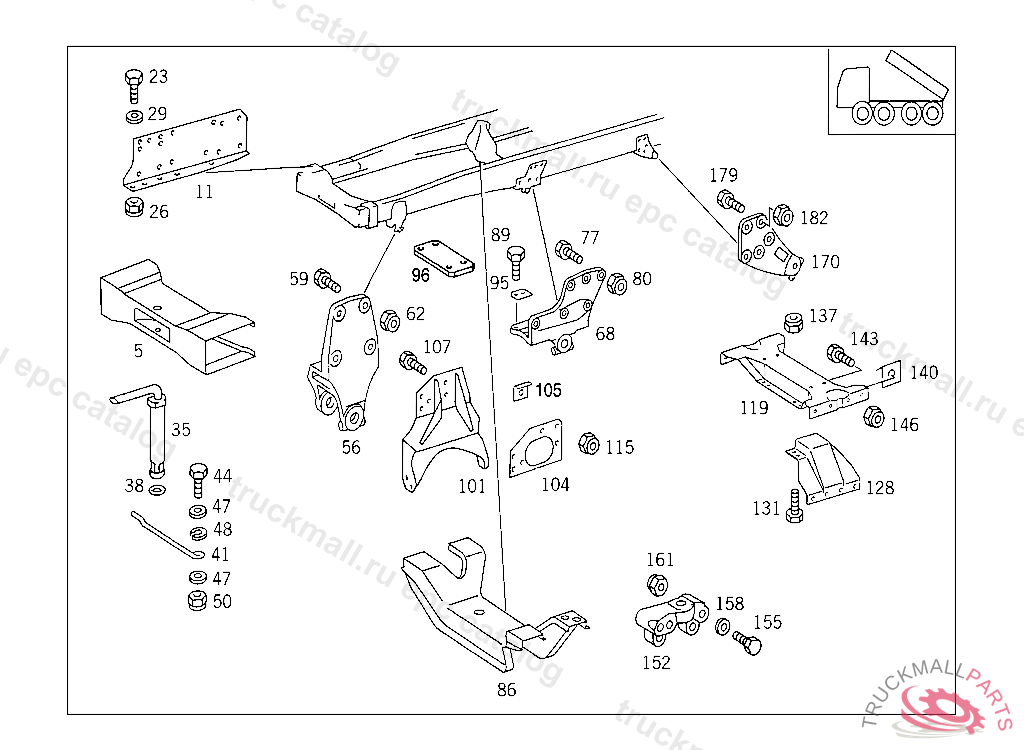

Поз.
Артикул
Описание
5
CROSS MEMBER FRONT
11
GUSSET PLATE FRONT LEFT, TO BE ADAPTED DURING ASSEMBLY
11
GUSSET PLATE
23
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
23
SCREW , Replaced By: N308676012026
26
NUT SUPPORT TO SIDE MEMBER
29
WASHER
35
COUPLING PIN FOR COUPLING MOUTH
38
SEALING CORD FOR COUPLING MOUTH
41
LOCKING SPRING TO SECURE COUPLING PIN
44
SCREW BRACKET TO CROSS CONNECTION STRUT
44
SCREW , Replaced By: N304017008034
47
WASHER , Replaced By: N000125008443
47
WASHER EXHAUST MUFFLER TO STRAP
48
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
59
SCREW FRONT SPRING FRONT BRACKET TO SIDE MEMBER
59
SCREW FRONT SPRING FRONT BRACKET TO SIDE MEMBER
62
NUT , Replaced By: N910113016001
62
NUT CONSOLE TO SUPPORT
77
SCREW SUPPORT TO TRANSMISSION M 16X1.5X60
77
SCREW , Replaced By: N308676016005
80
NUT , Replaced By: N910113016001
80
NUT CONSOLE TO SUPPORT
89
SCREW BRACKET TO SPRING BRACKET AND TO CROSS MEMBER,5 953233K 027550
131
SCREW STRUT TO CONSOLE
137
NUT STRAP TO SUPPORT
152
BEARING BRACKET STEERING CYLINDER
152
BEARING BRACKET STEERING LINKAGE
152
BEARING BRACKET STEERING LINKAGE
152
BEARING BRACKET (POWER CYLINDER),POWER STEERING
155
SCREW BEARING BRACKET
155
SCREW TRAILER COUPLING TO REAR CROSS MEMBER
155
SCREW BEARING BRACKET
155
SCREW , Replaced By: N308676016014
158
WASHER , Replaced By: N000125017016
158
WASHER BRACKET TO FRAME
161
NUT , Replaced By: N910113016001
161
NUT CONSOLE TO SUPPORT
179
SCREW , Replaced By: N308676014013
179
SCREW ROD TO TRANSFER CASE M 14X65
182
NUT , Replaced By: N910113014000
182
NUT STEERING SUPPORT TO FRAME
999
GUSSET PLATE , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A3873122087
999
GUSSET PLATE , Replaced By: A6203120987
999
SHIM CROSS MEMBER TO FRONT SPRING REAR BRACKET
