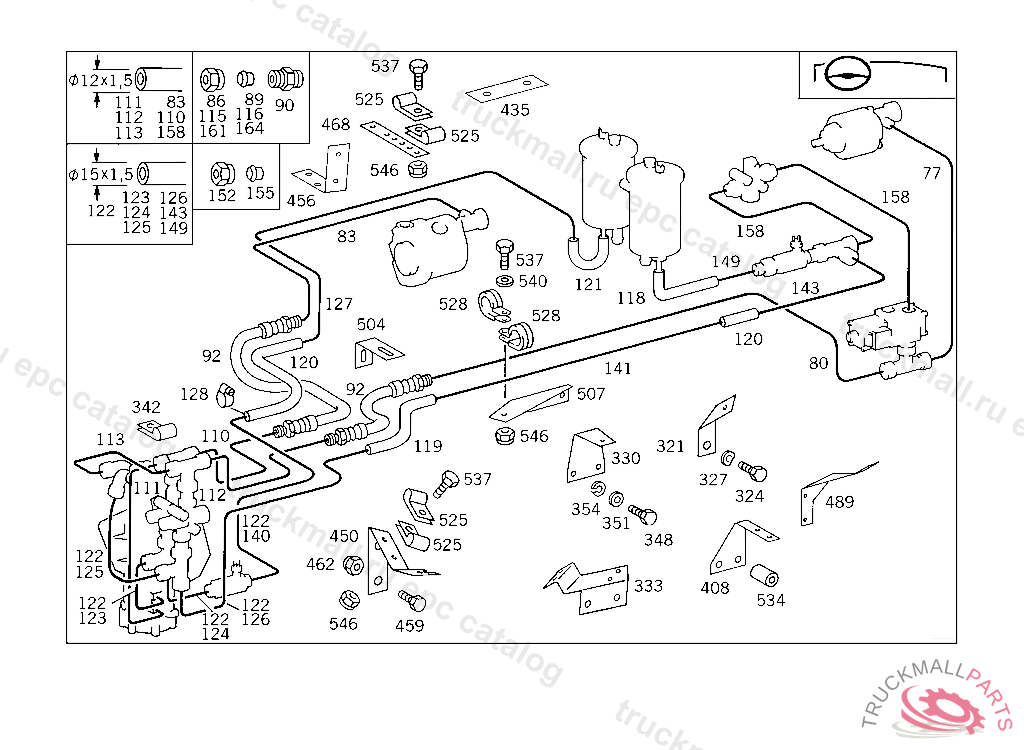

Поз.
Артикул
Описание
80
LINE FROM STEERING TO HIGH PRESSURE HOSE, CIRCUIT II
80
LINE FROM STEERING TO HIGH PRESSURE HOSE, CIRCUIT II,5 704174
80
LINE FROM STEERING TO HIGH PRESSURE HOSE, CIRCUIT II,K 011031K 101270
80
TUBE FROM HIGH PRESSURE HOSE TO STEERING
80
LINE (PRESSURE HOSE),FROM DISCONNECTING POINT,ENGINE,TO HIGH-PRESSURE HOSE KREIS II
80
LINE (RETURN LINE) TO OIL HOSE,CIRCUIT I
80
LINE FROM STEERING TO HIGH PRESSURE HOSE, CIRCUIT II,K 053632
80
LINE FROM STEERING TO HIGH PRESSURE HOSE, CIRCUIT II,5 760761K 053631
80
LINE , Replaced By: A0005516156
83
LINE (DELIVERY LINE),FROM PUMP TO HOSE, CIRCUIT I
83
LINE FROM PUMP TO HIGH PRESSURE HOSE, CIRCUIT I,5 959805K 101270
83
LINE FROM PUMP TO HIGH PRESSURE HOSE, CIRCUIT I,5 704174
83
LINE FROM PUMP TO HIGH PRESSURE HOSE, CIRCUIT I
83
LINE (PRESSURE HOSE),FROM DISCONNECTING POINT,ENGINE,TO HIGH-PRESSURE HOSE
83
LINE FROM PUMP TO HIGH PRESSURE HOSE, CIRCUIT I,5 760761
86
UNION NUT LINE CONNECTION, Replaced By: N000000006239
86
UNION NUT LINE CONNECTION
89
GLAND , Replaced By: A0019901967
89
SEAL CONE LINE CONNECTION
90
CONNECTION FITTING ENGINE AIR COMPRESSOR,CONNECTION: "15"
92
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
92
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
92
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
110
LINE FROM HOSE TO PRESSURE LIMIT VALVE T-FITTING,CIRCUIT I,5 704174
110
LINE (DELIVERY LINE),FROM HOSE TO T-FITTING
111
LINE FROM PRESSURE LIMIT VALVE TO STEERING, BOTTOM,CIRCUIT I,5 704174
112
LINE FROM HOSE TO PRESSURE LIMIT VALVE T-FITTING,CIRCUIT II
113
LINE FROM PRESSURE LIMIT VALVE TO STEERING, CIRCUIT II,5 597837
115
UNION NUT LINE CONNECTION, Replaced By: N000000006239
115
UNION NUT LINE CONNECTION
116
GLAND , Replaced By: A0019901967
116
SEAL CONE LINE CONNECTION
118
HOSE FROM RETURN LINE TO OIL TANK
120
HOSE , NOT USED
121
HOSE HEATING CIRCUIT,GAS PRESSURE REGULATOR
123
LINE FROM STEERING TO PRESSURE LIMIT VALVE T-FITTING,CIRCUIT I,5 704174
124
LINE (DELIVERY LINE),FROM HOSE TO T-FITTING KREIS I
124
LINE FROM PRESSURE LIMIT VALVE TO FLOW INDICATOR,CIRCUIT I,5 704174
125
LINE FROM STEERING TO PRESSURE LIMIT VALVE T-FITTING,CIRCUIT II,5 704174
126
LINE FROM PRESSURE LIMIT VALVE TO HIGH PRESSURE HOSE,CIRCUIT II,5 704174
127
TUBE FROM HIGH PRESSURE HOSE TO STEERING, LENGTH AVAILABLE: 3000 MM
127
LINE (RETURN LINE),FROM HOSE TO HOSE,5 704174
127
LINE (RETURN LINE),FROM HOSE TO HOSE,5 760761
127
LINE (RETURN LINE),FROM HOSE TO HOSE
127
LINE (RETURN LINE),FROM HOSE TO HOSE KREIS I
127
LINE (RETURN LINE),FROM HOSE TO HOSE,5 7213975 764783
127
LINE (RETURN LINE),FROM HOSE TO HOSE,5 7647845 959804
127
LINE , Replaced By: A0005516256
128
CLAMP HOSE TO FITTING AND TO OIL TANK
128
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
140
LINE RETURN LINE,PRESSURE LIMIT VALVE, CIRCUIT II
140
LINE FROM FLOW INDICATOR TO HIGH PRESSURE HOSE,CIRCUIT I
140
LINE (RETURN LINE) FROM FLOW INDICATOR TO HOSE,5 704174
140
LINE (RETURN LINE) FROM FLOW INDICATOR TO HOSE KREIS II
140
LINE (RETURN LINE) FROM FLOW INDICATOR TO HOSE KREIS I
140
LINE (RETURN LINE) TO OIL HOSE,CIRCUIT I
140
LINE (RETURN LINE) FROM FLOW INDICATOR TO HOSE KREIS I
141
LINE (RETURN LINE) FROM FLOW INDICATOR TO HOSE KREIS II
141
LINE (RETURN LINE),FROM HOSE TO HOSE,5 7213975 764783
141
LINE (RETURN LINE),FLOW INDICATOR,CIRCUIT: "II"
141
LINE (RETURN LINE),FROM HOSE TO HOSE KREIS II
141
TUBE FROM HIGH PRESSURE HOSE TO STEERING, LENGTH AVAILABLE: 3000 MM
141
LINE (RETURN LINE),FROM HOSE TO HOSE 15X1,5X1870 MM
141
LINE (RETURN LINE),FROM HOSE TO HOSE
141
LINE (RETURN LINE) FROM FLOW INDICATOR TO HOSE KREIS II
141
LINE (RETURN LINE),FROM HOSE TO HOSE,5 7647845 959804
141
LINE (RETURN LINE),FROM HOSE TO HOSE KREIS II
141
LINE (RETURN LINE) FROM FLOW INDICATOR TO HOSE
141
LINE , Replaced By: A0005516256
143
LINE FROM HOSE TO FLOW INDICATOR VALVE, CIRCUIT II,5 704174
149
LINE FROM FLOW INDICATOR TO OIL TANK, CIRCUIT II
152
UNION NUT LINE CONNECTION
155
GLAND LINE CONNECTION
158
TUBE FROM HIGH PRESSURE HOSE TO STEERING
158
LINE FROM PRESSURE LIMIT VALVE TO FLOW INDICATOR,CIRCUIT II
161
UNION NUT LINE CONNECTION, Replaced By: N000000006239
161
UNION NUT LINE CONNECTION
164
GLAND , Replaced By: A0019901967
164
SEAL CONE LINE CONNECTION
321
BRACKET OIL LINE TO TRANSMISSION
324
SCREW BRACKET TO EXHAUST MUFFLER BRACKET
327
SPRING WASHER AIR COMPRESSOR LINE TO ENGINE,5 812731 - 5 8174215 936366 - 5 999999K 000001N 817422K 126820
327
SPRING WASHER CAB FLOOR
330
BRACKET OIL LINE TO TRANSMISSION CASE
342
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
342
CLAMP DELIVERY AND SUCTION LINES TO FRAME
348
SCREW PIPE CLAMP
348
SCREW , Replaced By: N304017008021
351
WASHER , Replaced By: N000125008443
351
WASHER EXHAUST MUFFLER TO STRAP
354
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
354
LOCK WASHER BRACKET TO TRANSMISSION CASE,5 537500
408
BRACKET SUCTION/DELIVERY/RETURN LINES
435
BRACKET LINE TO TRANSMISSION
450
BRACKET DELIVERY AND SUCTION LINES TO FRAME
456
BRACKET DELIVERY LINE TO POWER CYLINDER
459
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
459
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
459
SCREW , Replaced By: N308676012026
462
NUT SUPPORT TO SIDE MEMBER
468
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
489
BRACKET PRESSURE ACCUMULATOR
504
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
507
BRACKET OIL LINES
525
CLAMP BRACKET TO ACCUMULATOR
525
CLAMP DELIVERY AND SUCTION LINES TO STEERING
525
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
525
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
525
CLAMP FEED LINE TO THERMOSTAT
528
CLAMP LINES TO BRACKET
528
CLAMP HOSE TO FLANGE AND TO VALVE
528
CLAMP DELIVERY AND SUCTION LINES TO FRAME
528
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
528
CLAMP FRAME MOUNTED CABLE HARNESS TO CAB
528
CLAMP ADDITIONAL WORK ON FRAME MOUNTED CABLE HARNESS
528
CLAMP LINE MOUNTING
528
CLAMP OIL DIPSTICK TO RADIATOR
528
CLAMP DELIVERY AND SUCTION LINES TO FRAME, Replaced By: N916016022203
534
SPACER TUBE , Replaced By: A1369913740
534
SPACER TUBE SWITCH TO ENGINE
537
SCREW OIL LINE TO CRANKCASE
537
SCREW COVER PLATE TO BRACKET
537
SCREW COVER PLATE TO COVER PLATE M 6 X 12
537
SCREW LICENSE PLATE TO BRACKET
537
SCREW , Replaced By: N304017006018
537
SCREW , Replaced By: N304017006020
537
SCREW CAB FLOOR COVERING M 6X25
537
SCREW RADIATOR M 10X45
537
SCREW PUMP TO BRACKET
540
WASHER EXHAUST MUFFLER TO STRAP
540
WASHER , Replaced By: N000125008443
546
NUT , Replaced By: N913004006001
546
NUT , Replaced By: N910113010000
546
NUT PUMP TO BRACKET
546
NUT STRAP TO BRACKET
999
VALVE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0004664291
999
VALVE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0004664291
999
PISTON , Replaced By: A0004665783
999
FITTING (PARTS KIT),LINE RUPTURE
999
FITTING , Replaced By: A3529971171
999
FITTING SUCTION LINE TO OIL PUMP
999
CLAMP LINE MOUNTING
999
CLAMP , Replaced By: A6739950001
999
BRACKET OIL LINE ON ENGINE SIDE
999
HOSE ,5 760761, Replaced By: A6254660381
999
HOSE , Replaced By: A6254660281
999
HOSE , Replaced By: A6254660281
999
BRACKET POWER CYLINDER DELIVERY LINE,5 556098
999
BRACKET LINES TO SIDE MEMBER
999
BRACKET OIL LINE TO ENGINE,5 704175
999
BRACKET , Replaced By: A6735460443
999
BRACKET CUT-IN VALVE
999
BRACKET LINES TO SIDE MEMBER
999
BRACKET PRESSURE LIMIT VALVE
999
BRACKET , Replaced By: A6194660740
999
HOSE , Replaced By: A3849977482
999
SPRING , Replaced By: A0029935201
999
HOSE , Replaced By: A3859971682
999
SCREW , Replaced By: N304017006016
999
CONNECTION FITTING
999
NUT , Replaced By: N910113014000
999
CLAMP , Replaced By: N916016015202
