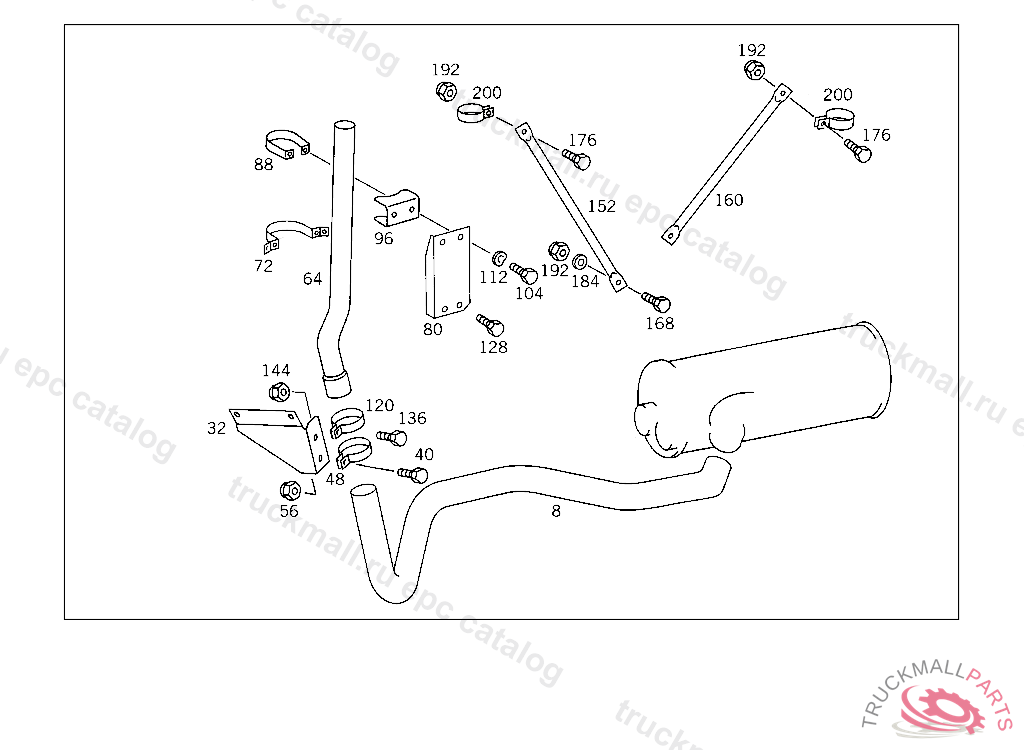

Поз.
Артикул
Описание
8
CONNECTOR ,5 414981
32
BRACKET END PIECE TO SUPPORT
40
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
40
SCREW , Replaced By: N304017008027
48
CLAMP , Replaced By: N071555090502
48
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
56
NUT , Replaced By: N910113010000
56
NUT STRAP TO BRACKET
64
END PIECE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 946474, Replaced By: A6524927314
64
END PIECE BEHIND CAB,UPWARD
72
CLAMP BRACKET TO SUPPORT, CLAMP INCLUDED IN RANGE OF DELIVERY OF 653 490 00 34 AND 653 490 01 34 SUPPORTS
80
BRACKET CONSOLE TO FENDER BRACKET
88
CLAMP EXHAUST PIPE TO BRACKET
96
BASE PLATE , Replaced By: A6524920118
96
BASE PLATE BRACKET TO SIDE MEMBER
104
SCREW , Replaced By: N304017008034
104
SCREW BRACKET TO CROSS CONNECTION STRUT
112
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
112
SPRING WASHER , Replaced By: N000137008212
120
CLAMP , Replaced By: N071555090502
120
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
128
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
136
SCREW BRACKET TO SIDE MEMBER
136
SCREW , Replaced By: N304017010002
144
NUT , Replaced By: N910113010000
144
NUT STRAP TO BRACKET
152
BRACKET EXHAUST PIPE SUSPENSION
160
BRACKET (STRUT),FROM TAIL PIPE TO SIDE MEMBER
168
SCREW REAR EXHAUST PIPE TO MUFFLER
176
SCREW BRACKET TO SIDE MEMBER
176
SCREW , Replaced By: N304017010002
184
WASHER , Replaced By: N000125010532
184
WASHER RADIATOR TO RUBBER MOUNTING
192
NUT STRAP TO BRACKET
192
NUT , Replaced By: N910113010000
200
CLAMP EXHAUST PIPE TO BRACKET
999
FLAP (RAIN DEFLECTOR)
999
PROTECTIVE PLATE FUEL TANK
999
CLAMP , Replaced By: A6454921140
999
BRACKET STRUT
999
BRACKET EXHAUST PIPE TO FRAME
999
BRACKET EXHAUST MUFFLER
999
REAR EXHAUST PIPE
999
CLAMP EXHAUST PIPE TO BRACKET
999
CONNECTOR ,5 489380
999
CONNECTOR ,5 489381
999
CONNECTOR ,5 771070
999
CONNECTOR ,5 771071K 107092
999
CONNECTOR ,K 110092
999
CONNECTOR ,K 110092
999
CONNECTOR ,K 107093
999
BRACKET BRACKET TO CROSS MEMBER
999
BRACKET (STRUT),FROM TAIL PIPE TO SIDE MEMBER
999
CLAMP , Replaced By: N071555090501
999
BRACKET BRACKET TO APPARATUS SUPPORT
999
END PIECE
999
BRACKET BRACKET TO CROSS CONNECTION STRUT
999
BRACKET BRACKET TO CROSS CONNECTION STRUT
999
PLATE , Replaced By: A3853230084
999
WASHER , Replaced By: N000125010532
999
SCREW , Replaced By: N304017008018
999
SCREW , Replaced By: N304017008027
999
SCREW END PIECE TO EXHAUST PIPE M 10X25
999
SCREW , Replaced By: N304017010002
999
SCREW SUPPORT TO CROSS MEMBER M 10X28
999
SCREW , Replaced By: N308676014020
999
CLAMP , Replaced By: N071555090502
999
CLAMP , Replaced By: N071555094502
999
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
999
SCREW SUPPORT TO FENDER
999
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
999
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
NUT BRACKET TO SIDE MEMBER
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N913004008001
999
NUT , Replaced By: N910113010000
999
NUT , Replaced By: N910113014001
