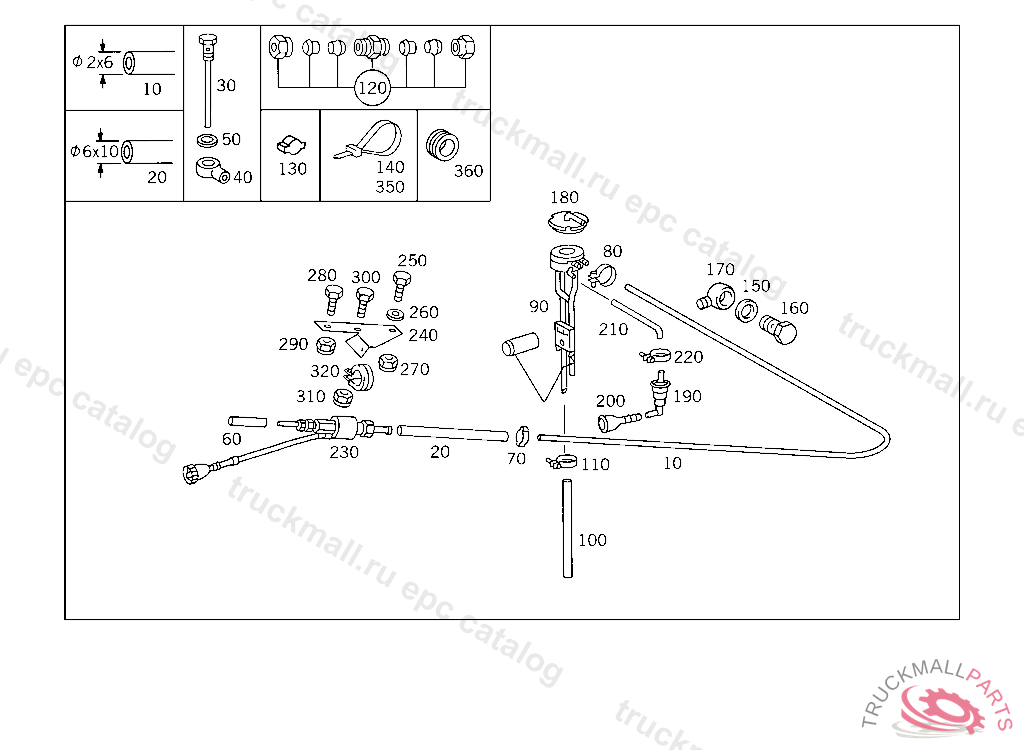

Поз.
Артикул
Описание
10
HOSE FUEL LINE, ORDER BY THE METER
20
HOSE LEAK LINE, ORDER BY THE METER
30
RISING PIPE FUEL TANK
30
LINE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6744700026
40
BANJO UNION HEATING CONNECTION,K 169122
50
SEAL RING FUEL LINE TO FEED PUMP
60
INTERMEDIATE PIECE FUEL LINE,K 223528
60
HOSE PLASTIC PIPE,K 223529
60
INTERMEDIATE PIECE , Replaced By: A0004760125
70
LOOM TIE LINE MOUNTING
80
CLAMP LINE MOUNTING
90
SENDER UNIT FUEL GAUGE, UP TO IDENT NO. K 169122, FROM IDENT NO. SEE STANDARD VERSION
90
SENDER UNIT FUEL GAUGE, UP TO IDENT NO. K 169122, FROM IDENT NO. SEE STANDARD VERSION
90
SENDER UNIT FUEL GAUGE, UP TO IDENT NO. K 169122, FROM IDENT NO. SEE STANDARD VERSION
90
SENDER UNIT FUEL GAUGE, UP TO IDENT NO. K 169122, FROM IDENT NO. SEE STANDARD VERSION
100
HOSE LEAK LINE, ORDER BY THE METER
100
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
100
PLASTIC PIPE RISING PIPE 4X6 MM
100
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
100
LINE , Replaced By: A0089979082
110
CLAMP LINE MOUNTING
110
CLAMP RISING PIPE,5 4734955 909351
120
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
130
LOOM TIE LINE MOUNTING
140
LOOM TIE LINE MOUNTING 280 MM
150
SEAL RING FUEL LINE TO FEED PUMP
160
HOLLOW SCREW HEATING CONNECTION
170
BANJO UNION HEATING CONNECTION,K 169122
170
BANJO UNION HOSE WIDTH, / I.D., 4/14 MM,K 169123
170
BANJO UNION , Replaced By: N000000000364
180
COVERING RISING PIPE,K 169122
190
VALVE ,K 169122
190
VALVE ,K 169122
200
BOOT CHECK VALVE,K 169122
210
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
220
CLAMP CHECK VALVE,K 169122
230
AUXILIARY PUMP FUEL-OIL PUMP,K 181478
230
AUXILIARY PUMP , Replaced By: A0004704594, +002A0025450628, +001A0055454528, +001A0019906440, +001A0009904954, +001A0029970781
230
AUXILIARY PUMP , Replaced By: A0004704594
230
AUXILIARY PUMP FUEL-OIL,K 181478, Replaced By: A0004706694
240
BRACKET ADDITIONAL FUEL PUMP
250
SCREW PIPE CLAMP
250
SCREW , Replaced By: N304017008021
260
WASHER , Replaced By: N009021008213
260
WASHER BRACKET TO LEFT SIDE MEMBER
270
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
270
NUT , Replaced By: N913004008001
270
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
280
SCREW BRACKET TO FRAME SIDE MEMBER
290
NUT SUPPORT TO SIDE MEMBER
300
SCREW AT FILTER BRACKET
300
SCREW PUMP TO BRACKET
300
SCREW PUMP TO BRACKET M 6X20
300
SCREW , Replaced By: N304017006016
310
NUT , Replaced By: N913004006001
310
NUT PUMP TO BRACKET
310
NUT AT FILTER BRACKET
320
CLAMP PUMP TO BRACKET
350
LOOM TIE LINE MOUNTING 280 MM
350
LOOM TIE LINE MOUNTING
360
GROMMET CAB ROOF
999
STRAINER
999
FITTING
999
PLATE CABLE HARNESS MOUNTING
999
CONNECTOR
999
SEAL RING FUEL GAUGE SENDER UNIT CONNECTION
999
BRACKET LINE MOUNTING
999
TAPPING SCREW. SHEET METAL SCREW FUEL LINE
999
HOSE FUEL LINE
