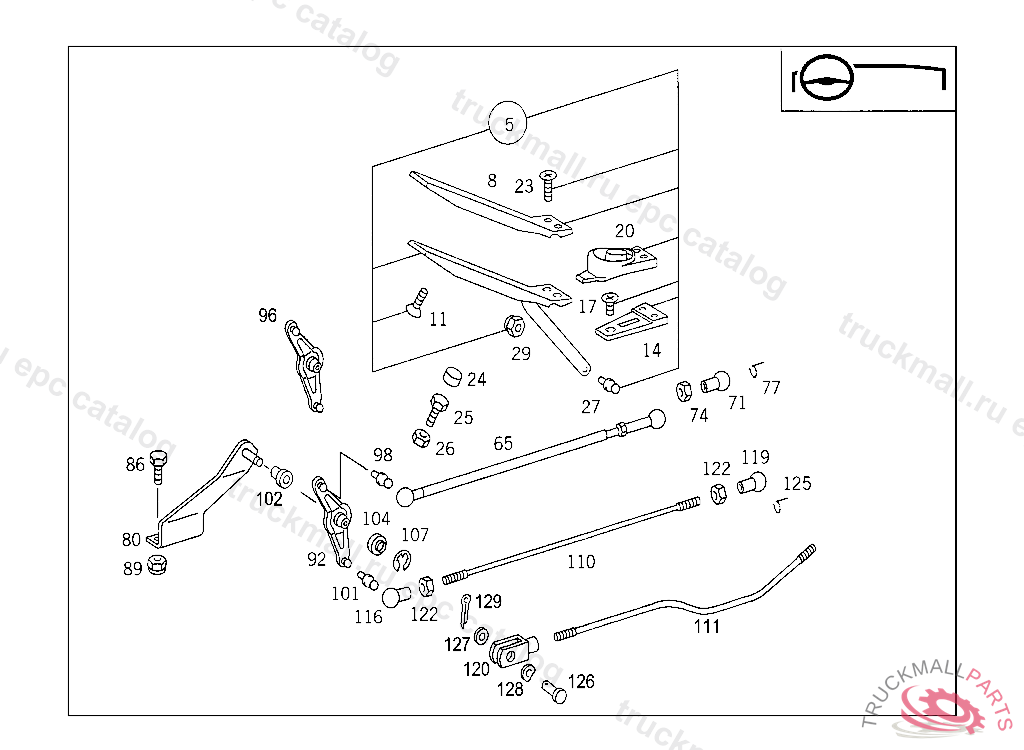

Поз.
Артикул
Описание
5
ACCELERATOR PEDAL (PARTS KIT), RANGE OF DELIVERY INCLUDES: 1X 655 301 00 93, 3X 000965 006077
8
PAD ACCELERATOR PEDAL
11
SCREW ACCELERATOR PEDAL
14
SHIM ACCELERATOR PEDAL
17
SCREW ACCELERATOR PEDAL TO FLOOR PLATE M 6X20
20
BOOT ACCELERATOR PEDAL
23
SCREW ACCELERATOR PEDAL TO CAB M 6X25
24
STOP ACCELERATOR PEDAL
25
SCREW VALVE TO BRACKET, Replaced By: N304014008002
25
SCREW VALVE TO BRACKET
26
NUT
27
BALL PIVOT LOAD SENSOR
29
NUT PUMP TO BRACKET
29
NUT , Replaced By: N913004006001
71
BALL SOCKET PULL ROD TO LEVER
74
NUT BALL PIVOT TO LEVER
77
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
86
SCREW , Replaced By: N304017008034
86
SCREW BRACKET TO CROSS CONNECTION STRUT
89
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
89
NUT , Replaced By: N913004008001
89
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
92
LEVER INTERMEDIATE BEARING
96
LEVER (INTERMEDIATE LEVER)
98
BALL STUD. BALL PIVOT TOP B10X4,5 MM
101
BALL PIVOT BOTTOM B13X5 MM
102
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
104
COVERING INTERMEDIATE BEARING
107
LOCK PLATE INTERMEDIATE BEARING
110
PULL ROD FROM ACCELERATOR PEDAL TO INTERMEDIATE LEVER
111
ROD FROM INTERMEDIATE LEVER TO ENGINE CONTROL SHAFT,K 093739
116
BALL SOCKET ROD TO BALL PIVOT
119
BALL SOCKET ROD TO BALL PIVOT
120
YOKE SHIFTING ROD TO INTERMEDIATE LEVER
122
NUT
125
SECURING CLIP. CIRCLIP
126
PIN ROD TO LEVER
127
WASHER BRACKET TO CROSS MEMBER
128
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
129
COTTER PIN CONNECTOR TO BRAKE PRESSURE REGULATOR LEVER
