Поз.
Артикул
Описание

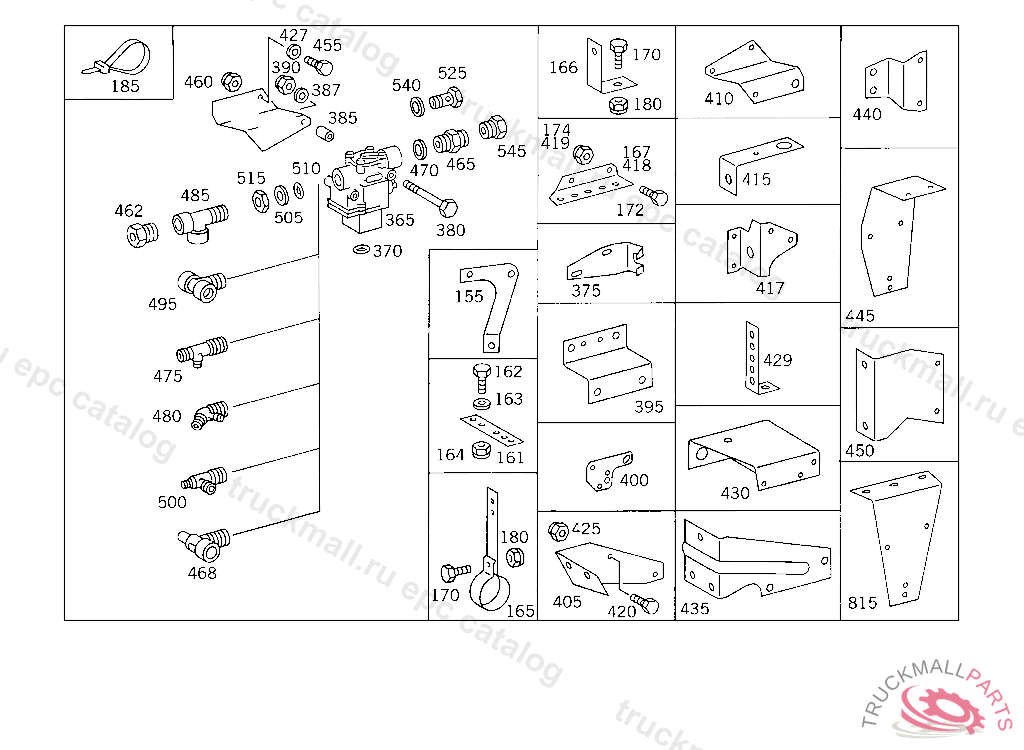

155
BRACKET FRONT AXLE,LEFT
155
BRACKET COMPRESSED AIR LINE TO REGULATING SOLENOID VALVE,5 727399
161
BRACKET COMPRESSED AIR LINE TO VALVE
161
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
162
SCREW BRACKET TO SIDE MEMBER M 12X38
162
SCREW PIPE CLAMP
162
SCREW , Replaced By: N304017008021
162
SCREW , Replaced By: N304017008021
163
WASHER , Replaced By: N000125008443
163
WASHER EXHAUST MUFFLER TO STRAP
164
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
164
NUT , Replaced By: N913004008001
165
BRACKET COMPRESSED AIR LINE TO CONTROL ARM,5 927466
165
BRACKET , Replaced By: A6514310240
166
BRACKET BRACKET TO CROSS MEMBER
167
BRACKET AT SIDE MEMBER
170
SCREW SUPPORT TO FENDER
170
SCREW PIPE CLAMP
170
SCREW , Replaced By: N304017008021
170
SCREW , Replaced By: N304017008018
170
SCREW , Replaced By: N304017008021
172
SCREW END PIECE TO EXHAUST PIPE M 10X25
172
SCREW BRACKET TO APPARATUS SUPPORT M 10X30
174
NUT EXHAUST PIPE TO SIDE MEMBER
174
NUT STRAP TO BRACKET
174
NUT , Replaced By: N910113010000
180
NUT , Replaced By: N913004008001
180
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
185
LOOM TIE LINE MOUNTING
185
LOOM TIE LINE MOUNTING 280 MM
365
VALVE REGULATING SOLENOID VALVE "WABCO", PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
365
VALVE , Replaced By: A0044296044
365
VALVE , Replaced By: A0044295944
365
VALVE , REPAIR IMPOSSIBLE, Replaced By: A0044296144
365
VALVE , REPAIR IMPOSSIBLE, Replaced By: A0044293444
365
VALVE REGULATING SOLENOID VALVE "KNORR", REPAIR IMPOSSIBLE
365
VALVE (SOLENOID VALVE) "BOSCH", REPAIR IMPOSSIBLE
370
SEAL RING , NOT USED
375
LOCK FRONT AXLE,RIGHT,K 009080
375
LOCK FRONT AXLE,LEFT
375
LOCK FRONT AXLE,RIGHT
375
LOCK FRONT AXLE,LEFT,K 009080
375
LOCK FRONT AXLE,LEFT,K 009079
380
SCREW FRONT AXLE REGULATING SOLENOID VALVE
380
SCREW 3/2-WAY VALVE TO BRACKET
380
SCREW AT SIDE MEMBER M 8X140
380
SCREW FRONT AXLE REGULATING SOLENOID VALVE M 8X95
380
SCREW AT SIDE MEMBER,REAR M 8X135
380
SCREW FRONT AXLE REGULATING SOLENOID VALVE
380
SCREW TWO-WAY VALVE TO FRAME M 8X155
380
SCREW REAR AXLE REGULATING SOLENOID VALVE M 8X95
380
SCREW AT SIDE MEMBER M 8X145
380
SCREW TWO-WAY VALVE TO FRAME M 8X140
380
SCREW REAR AXLE REGULATING SOLENOID VALVE
380
SCREW FRONT AXLE REGULATING SOLENOID VALVE M 8X75
380
SCREW , Replaced By: N304014008001
380
SCREW , Replaced By: N304014008009
380
SCREW , Replaced By: N000933008134
380
SCREW , Replaced By: N304014008007
380
SCREW VALVE TO BRACKET ON REAR AXLE M 8X150
385
SPACER TUBE , Replaced By: A4609915140
385
SPACER TUBE , Replaced By: A3094310249
385
GUIDE BUSHING TWO-WAY VALVE TO FRAME
385
SPACER TUBE FRONT AXLE REGULATING SOLENOID VALVE
385
SPACER TUBE REAR AXLE REGULATING SOLENOID VALVE
387
WASHER BRACKET TO SIDE MEMBER
390
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
390
NUT , Replaced By: N913004008001
395
BRACKET FRONT AXLE REGULATING SOLENOID VALVE
400
BRACKET REGULATING SOLENOID VALVE,5 953054
405
BRACKET FRONT AXLE,RIGHT
405
BRACKET FRONT AXLE,LEFT
405
BRACKET FRONT AXLE,RIGHT,5 727399
405
BRACKET FRONT AXLE,LEFT
410
BRACKET FRONT AXLE,LEFT
410
BRACKET FRONT AXLE,LEFT,5 431227
410
BRACKET FRONT AXLE,RIGHT
410
BRACKET , Replaced By: A6254314940
410
BRACKET , Replaced By: A6254314840
410
BRACKET FRONT AXLE,LEFT,5 431227
415
BRACKET , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6504290840
415
BRACKET , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6504290740
415
BRACKET FRONT AXLE,RIGHT
415
BRACKET FRONT AXLE,LEFT
417
BRACKET FRONT AXLE,LEFT
417
BRACKET FRONT AXLE,RIGHT
418
BRACKET AT SIDE MEMBER
419
NUT BRACKET TO SIDE MEMBER
420
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
420
SCREW REAR EXHAUST PIPE TO MUFFLER
420
SCREW BRACKET TO CAB CONSOLE,K 035197
420
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
420
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
420
SCREW SUPPORT TO SIDE MEMBER
420
SCREW BRACKET TO SIDE MEMBER M 12X38
420
SCREW BRACKET TO SIDE MEMBER
420
SCREW BRACKET TO SIDE MEMBER
420
SCREW END PIECE TO EXHAUST PIPE M 10X25
420
SCREW BRACKET TO SIDE MEMBER
420
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
420
SCREW , Replaced By: N308676014020
420
SCREW , Replaced By: N000961012025
420
SCREW , Replaced By: N304017008040
420
SCREW , Replaced By: N304017008027
425
NUT , Replaced By: N910113014001
425
NUT , Replaced By: N910113010000
425
NUT , Replaced By: N913004008001
425
NUT STRAP TO BRACKET
425
NUT SUPPORT TO SIDE MEMBER
425
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
425
NUT BRACKET TO SIDE MEMBER
427
WASHER SUPPORT TO SIDE MEMBER
427
WASHER BRACKET TO SIDE MEMBER
427
WASHER , Replaced By: N007349015002
429
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
430
BRACKET REAR AXLE REGULATING SOLENOID VALVE
435
BRACKET DIAPHRAGM CYLINDER
440
BRACKET DIAPHRAGM CYLINDER
440
BRACKET DIAPHRAGM CYLINDER
445
BRACKET DIAPHRAGM CYLINDER
445
BRACKET DIAPHRAGM CYLINDER,5 434013
450
BRACKET DIAPHRAGM CYLINDER,5 410938
455
SCREW BRACKET TO SIDE MEMBER
455
SCREW BRACKET TO SIDE MEMBER M 12X38
455
SCREW BRACKET TO SUPPORT
455
SCREW , Replaced By: N304017010002
460
NUT , Replaced By: N910113010000
460
NUT , Replaced By: N913004008001
460
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
460
NUT STRAP TO BRACKET
462
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
465
FITTING LINE CONNECTION
468
T-FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "21,22"
470
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
470
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
475
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
475
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
475
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
475
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20", Replaced By: N000000006191
480
T-FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
485
FITTING FRONT-AXLE/REAR-AXLE REGULATING SOLENOID VALVE,CONNECTIONS: "20,21,22"
495
T-FITTING LINE CONNECTION
500
T-FITTING FRONT AXLE,CONNECTION: "20"
505
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
505
THRUST RING CHECK VALVE TO AIR RESERVOIR
505
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
510
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
510
O-RING CHECK VALVE TO AIR RESERVOIR
515
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
515
NUT CHECK VALVE TO AIR RESERVOIR
525
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
540
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
545
SCREW. UNION SCREW LINE CONNECTION
815
BRACKET PRESSURE CONTROL VALVE
999
HOLLOW SCREW LINE CONNECTION
999
NUT , Replaced By: N913004008001
999
SCREW STEERING BOX ASSEMBLY TO STEERING SUPPORT
999
SCREW BRACKET TO CROSS CONNECTION STRUT
999
NUT SHIFTING ROD UNLOCKING HIGH-PRESSURE HOSE
999
FITTING , Replaced By: A0029971372
999
INSULATING HOSE PROTECTION AGAINST SCORING, ORDER BY THE METER
999
SEAL RING LINE CONNECTION
999
SCREW , Replaced By: N308676016006
999
SCREW HOLLOW RUBBER SPRING TO CAB,5 956657
999
SCREW , Replaced By: N304017008034
999
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
999
SCREW PLUG , Replaced By: N000908022011
999
WASHER , Replaced By: N000125008443
999
BRACKET REDUCTION VALVE
999
ANGLE
999
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
999
TANK RECESS. T-FITTING LINE CONNECTION
999
BRACKET FRONT AXLE,RIGHT
999
BRACKET FRONT AXLE,LEFT
999
STRAP DIAPHRAGM CYLINDER
999
BRACKET COMPRESSED AIR LINES
999
BRACKET LOAD/NO-LOAD VALVE
999
BRACKET TRAILING AXLE
999
BRACKET
999
BRACKET , Replaced By: A6544310740
999
BRAKE HOSE REAR AXLE BRAKE CYLINDER 700 MM,K 180897
999
BRAKE HOSE FROM TWO-WAY VALVE TO TRISTOP CYLINDER 700 MM,K 181361
999
BRAKE HOSE FROM TWO-WAY VALVE TO TRISTOP CYLINDER 600 MM,K 181361
999
BRAKE HOSE FROM TWO-WAY VALVE TO TRISTOP CYLINDER 500 MM,K 181361
999
CLAMP BRAKE HOSE
999
BRACKET COMPRESSED AIR LINE TO CONTROL ARM,5 927466
999
GROMMET FOR PASSAGE OF LINE
999
WASHER PROTECTIVE PLATE TO EXHAUST PIPE
999
WASHER BRACKET TO LEFT SIDE MEMBER
999
CLAMP BRAKE HOSE
999
FITTING RELAY VALVE,CONNECTION: "40"
999
VALVE (REDUCTION VALVE)
999
T-FITTING HOSE WIDTH, 9 MM, TO M 22, M 12X1.5
999
T-FITTING HOSE WIDTH, 9 MM, TO M 22, M 12X1.5
999
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22, 9 MM
999
VALVE (3/2-WAY SOLENOID VALVE)
999
FITTING SHUTTLE VALVE
999
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
999
T-FITTING LEFT AND RIGHT BRAKE HOSES
999
CONNECTOR COMPRESSED AIR PIPING,YB227219
