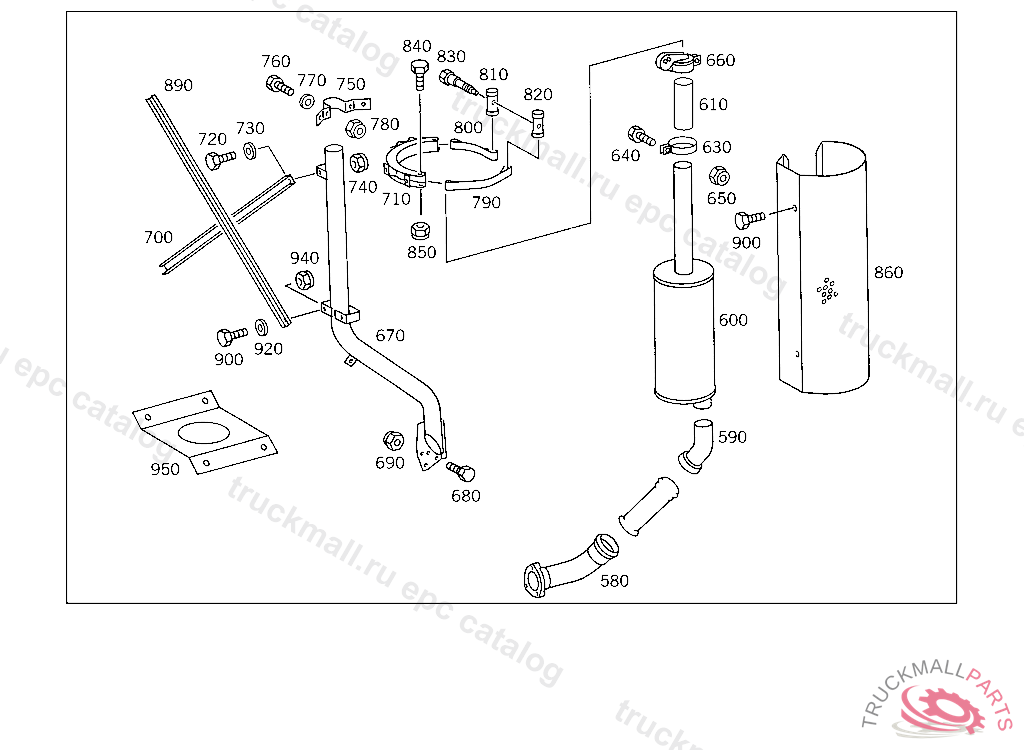

Поз.
Артикул
Описание
580
CONNECTOR FRONT RIGHT
580
CONNECTOR FRONT LEFT
590
CONNECTOR FRONT
600
EXHAUST MUFFLER , Replaced By: A6524901401
600
EXHAUST MUFFLER
600
EXHAUST MUFFLER ,5 930490
610
END PIECE TAIL PIPE,5 930490
630
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
630
CLAMP EXHAUST PIPE TO BRACKET
640
SCREW BRACKET TO SIDE MEMBER
640
SCREW , Replaced By: N304017010002
640
SCREW REAR EXHAUST PIPE TO MUFFLER
650
NUT , Replaced By: N910113010000
650
NUT STRAP TO BRACKET
660
FLAP END PIECE TO EXHAUST PIPE,4 697327
670
SUPPORT LEFT
670
SUPPORT RIGHT
670
SUPPORT RIGHT
670
SUPPORT LEFT
680
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
690
NUT BRACKET TO SIDE MEMBER
690
NUT , Replaced By: N910113014001
700
BRACKET SUPPORT TO SUPPORT,5 540020
700
BRACKET SUPPORT TO SUPPORT,5 540021
710
BRACKET EXHAUST MUFFLER TO SUPPORT
720
SCREW BRACKET TO SIDE MEMBER
720
SCREW , Replaced By: N304017010002
730
WASHER BRACKET TO REAR AXLE I
740
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
750
CLAMP BRACKET TO SUPPORT, CLAMP INCLUDED IN RANGE OF DELIVERY OF 653 490 00 34 AND 653 490 01 34 SUPPORTS
760
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
760
SCREW UNDERRUN PROTECTION AND BRACKET TO FRAME M 10X70
770
WASHER , Replaced By: N000125010532
770
WASHER RADIATOR TO RUBBER MOUNTING
780
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
790
STRAP EXHAUST MUFFLER TO BRACKET
800
STRAP EXHAUST MUFFLER TO BRACKET
810
PIN PARTICLE FILTER
820
PIN PARTICLE FILTER
830
CLAMPING SCREW PARTICLE FILTER
840
SCREW FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
840
SCREW , Replaced By: N304017008028
850
NUT BRACKET TO BATTERY/APPARATUS SUPPORT,5 579088
860
PROTECTIVE PLATE
890
BRACKET PROTECTIVE PLATE
900
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
920
WASHER RADIATOR TO RUBBER MOUNTING
920
WASHER , Replaced By: N000125010532
940
NUT BRACKET TO PROTECTIVE PLATE OR TO ANGLE
950
BRACKET OIL TANK
950
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 554417, Replaced By: A6254663243
999
NUT BRACKET TO BRACKET
999
NUT CONSOLE TO SIDE MEMBER
999
SCREW , Replaced By: N910142008009
999
SCREW BRACKET TO FRAME
999
BRACKET LEFT
999
BRACKET LEFT FENDER
999
EXHAUST PIPE FRONT
999
CLAMP
999
BRACKET
999
EXHAUST MUFFLER
999
EXHAUST PIPE FRONT
999
EXHAUST PIPE FRONT
999
END PIECE
999
WASHER
999
SCREW EXHAUST PIPE TO BRACKET
999
NUT BRACKET TO SIDE MEMBER
999
STUD BOLT BELL HOUSING, 760272 10/20 UP TO IDENT NO. 922885 EXCEPT FOR 921682,921950,921972,921994,922001,922008,922038,922287,922349,922387,922522,922575,922585,922608, 922638,922642,922671,922678,922686,922691,922705,922720,922723,922732,922736,922756,922768,922850, 922855. ALSO INSTALLED ON 934036,934433,934539,935068,935169,937098 50/60 UP TO IDENT NO. 922468 ON 96 KW (130 PS) 50/60 UP TO IDENT NO. 923153 ON 124 KW (168 PS)
999
SCREW CONSOLE TO SIDE MEMBER
999
CLAMP SLIDING PIECE TO EXHAUST PIPE
999
HEXAGON HEAD BOLT. SCREW BRACKET TO FRAME M 10X30
999
NUT , Replaced By: N913023010002
999
NUT SUPPORT TO SIDE MEMBER
999
SCREW CLAMP TO BRACKET,5 597426
999
NUT , Replaced By: N910113010000
999
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
999
NUT REINFORCEMENT TO BRACKET
