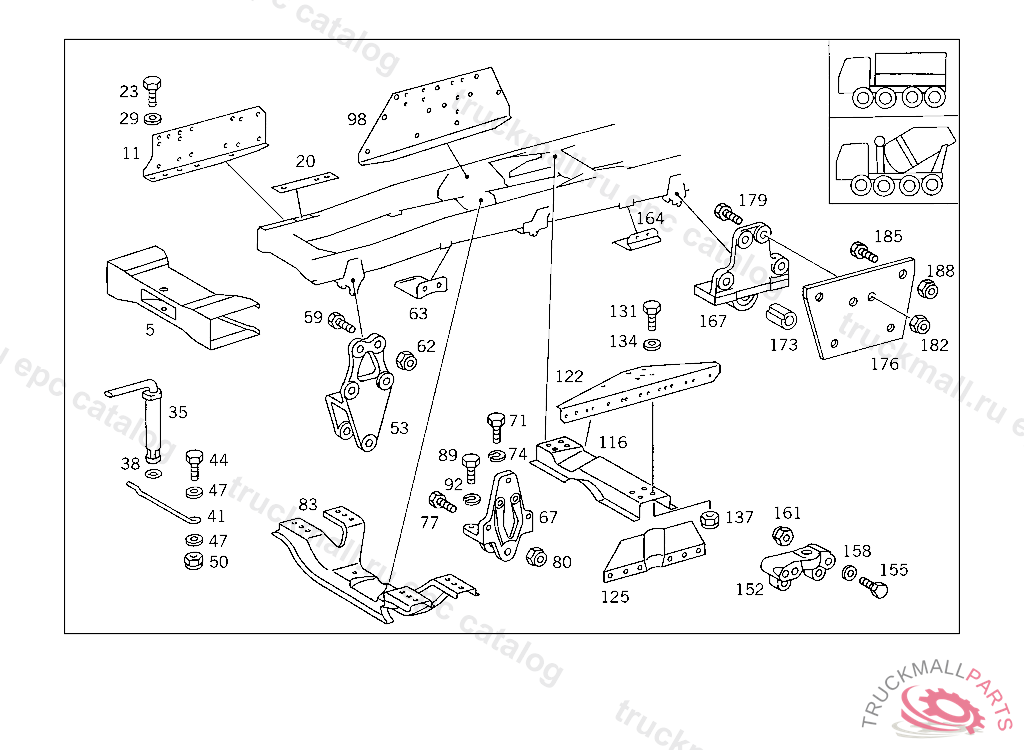

Поз.
Артикул
Описание
5
CROSS MEMBER FRONT
11
GUSSET PLATE FRONT LEFT, TO BE ADAPTED DURING ASSEMBLY
11
GUSSET PLATE
20
SHIM SUPPORT TO SIDE MEMBER
23
SCREW , Replaced By: N308676012026
23
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
29
WASHER
35
COUPLING PIN FOR COUPLING MOUTH
38
SEALING CORD FOR COUPLING MOUTH
41
LOCKING SPRING TO SECURE COUPLING PIN
44
SCREW , Replaced By: N304017008034
44
SCREW BRACKET TO CROSS CONNECTION STRUT
47
WASHER EXHAUST MUFFLER TO STRAP
47
WASHER , Replaced By: N000125008443
53
FRONT SPRING BRACKET FRONT AXLE I,FRONT, TO BE ADAPTED DURING ASSEMBLY
59
SCREW FRONT SPRING FRONT BRACKET TO SIDE MEMBER
59
SCREW FRONT SPRING FRONT BRACKET TO SIDE MEMBER
62
NUT CONSOLE TO SUPPORT
62
NUT , Replaced By: N910113016001
63
PLATE HELPER SPRING
67
FRONT SPRING BRACKET CENTRAL
74
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
77
SCREW SUPPORT TO TRANSMISSION M 16X1.5X60
77
SCREW , Replaced By: N308676016005
80
NUT , Replaced By: N910113016001
80
NUT CONSOLE TO SUPPORT
83
CROSS MEMBER TRANSMISSION MOUNTING
89
SCREW BRACKET TO SPRING BRACKET AND TO CROSS MEMBER,5 953233K 027550
92
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
116
CROSS MEMBER BATTERY/APPARATUS SUPPORT NO.3, TO BE ADAPTED DURING ASSEMBLY
125
STRUT REAR LEFT AND RIGHT, TO BE ADAPTED DURING ASSEMBLY
125
STRUT BOTTOM RIGHT
131
SCREW STRUT TO CONSOLE
134
WASHER MOUNTING USED FOR FRAME CONNECTION PARTS
137
NUT STRAP TO SUPPORT
152
BEARING BRACKET STEERING LINKAGE
152
BEARING BRACKET (POWER CYLINDER),POWER STEERING
152
BEARING BRACKET STEERING CYLINDER
152
BEARING BRACKET STEERING LINKAGE
155
SCREW BEARING BRACKET
155
SCREW , Replaced By: N308676016014
155
SCREW TRAILER COUPLING TO REAR CROSS MEMBER
155
SCREW BEARING BRACKET
158
WASHER BRACKET TO FRAME
158
WASHER , Replaced By: N000125017016
161
NUT , Replaced By: N910113016001
161
NUT CONSOLE TO SUPPORT
164
STOP FRONT AXLE II
167
REAR SUBFRAME REAR
173
RUBBER MOUNTING
173
RUBBER MOUNTING
179
SCREW , Replaced By: N308676014013
179
SCREW ROD TO TRANSFER CASE M 14X65
182
NUT STEERING SUPPORT TO FRAME
182
NUT , Replaced By: N910113014000
185
SCREW , Replaced By: N304017010047
185
SCREW , Replaced By: N308676014008
185
SCREW MOUNTING TO CONSOLE M 14X35
185
SCREW CONNECTOR TO REAR SHIFTING ROD
188
NUT CROSS MEMBER TO SIDE MEMBERS
188
NUT , Replaced By: N910113014000
188
NUT STEERING SUPPORT TO FRAME
999
GUSSET PLATE , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A3873122087
999
GUSSET PLATE , Replaced By: A6203120987
999
SHIM CROSS MEMBER TO FRONT SPRING REAR BRACKET
