Поз.
Артикул
Описание
5

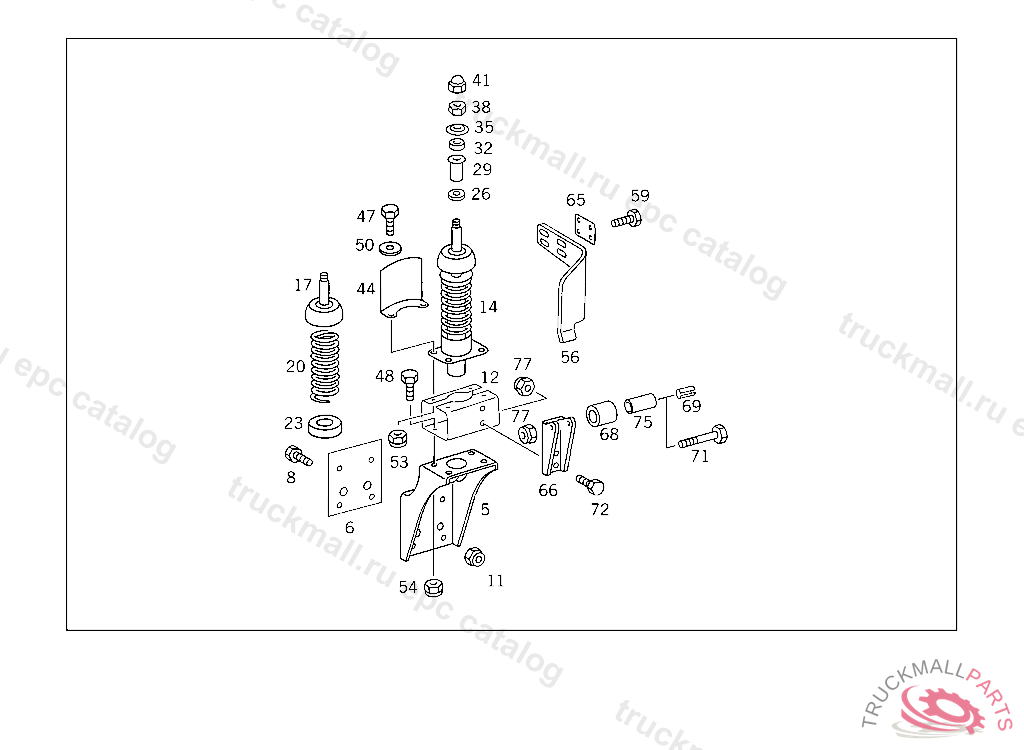

CONSOLE CAB SUSPENSION
5
CONSOLE , Replaced By: A3873170001
6
BASE CONSOLE TO SIDE MEMBER, NOT USED
8
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
11
NUT SUPPORT TO SIDE MEMBER
14
SHOCK ABSORBER (VIBRATION ABSORBER),CAB REAR SUSPENSION
14
SHOCK ABSORBER , Replaced By: A6208900119
14
SHOCK ABSORBER , Replaced By: A6208900319
14
SHOCK ABSORBER
17
RUBBER MOUNTINGTO 387 890 36 19
17
RUBBER MOUNTINGTO 620 890 02 19
20
SPRINGTO 620 890 01 19
20
SPRINGTO 620 890 00 19
23
BUFFERTO 620 890 02 19
26
WASHER COMBINATION CYLINDER TO SLACK ADJUSTER
29
SPACER TUBE SHOCK ABSORBER MOUNTING
32
RUBBER RING SHOCK ABSORBER MOUNTING
35
WASHER SHOCK ABSORBER MOUNTING
38
NUT. HEXAGON NUT SHOCK ABSORBER MOUNTING
41
CAP NUT VIBRATION ABSORBER
44
COVER PLATE SHOCK ABSORBER
47
SCREW BRACKET TO CROSS CONNECTION STRUT
47
SCREW , Replaced By: N304017008034
50
WASHER , Replaced By: N009021008213
50
WASHER BRACKET TO LEFT SIDE MEMBER
53
NUT STRAP TO BRACKET
56
GUIDE RIGHT
56
GUIDE LEFT
59
SCREW BRACKET TO PROPELLER SHAFT BEARING HOUSING M 12X30
65
SHIM GUIDE TO CAB
68
BUSHING LATERAL GUIDE OF CAB
71
SCREW LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS
75
SPACER TUBE BRACKET TO CONSOLE
77
NUT STRAP TO SUPPORT
