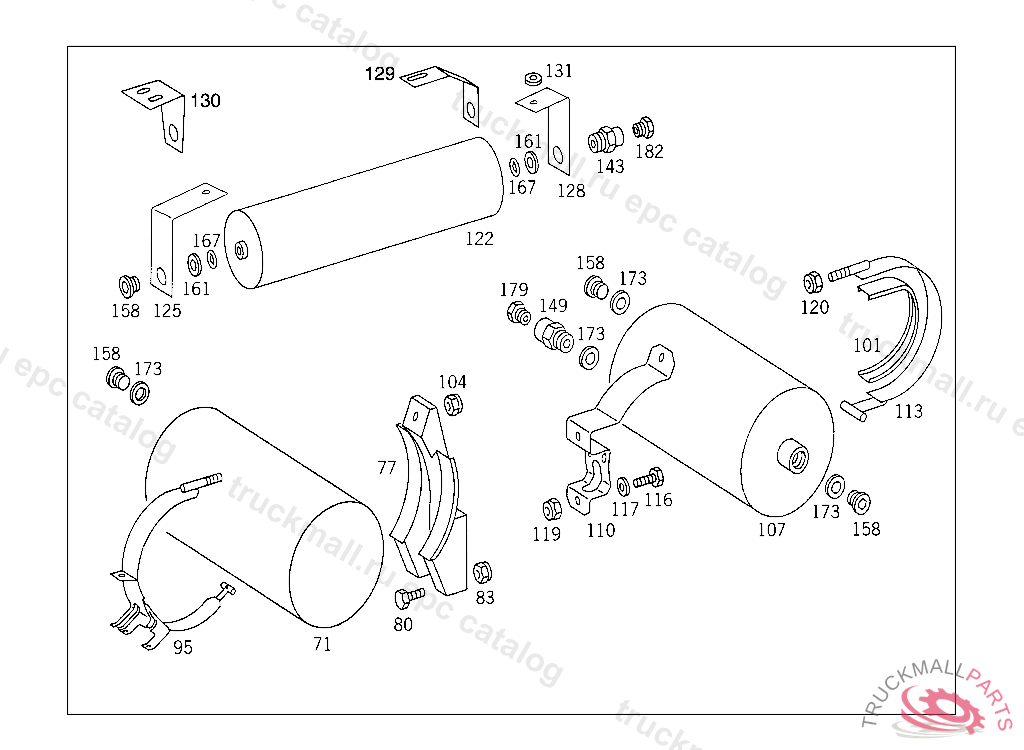

Поз.
Артикул
Описание
71
RESERVOIR20L,276 MM,8.5 BAR
71
RESERVOIR SPRING LOAD ACCUMULATOR 20 L, Replaced By: A0034321601
77
BRACKET AIR RESERVOIR TO APPARATUS SUPPORT
80
SCREW BRACKET TO SIDE MEMBER,K 168169
80
SCREW , Replaced By: A0089907401
83
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
83
NUT , Replaced By: N913004008001
83
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
95
STRAP SPRING-LOADED BRAKE AIR RESERVOIR,K 174076
95
STRAP SPRING-LOADED BRAKE AIR RESERVOIR
101
ADHESIVE TAPE60 MM, ORDER BY THE METER
104
NUT STRAP TO BRACKET
104
NUT , Replaced By: N910113010000
107
RESERVOIR E P S AND CLUTCH BOOSTER 10 L, Replaced By: A0034320801
107
RESERVOIR10L,206 MM,8.5 BAR
110
BRACKET AIR RESERVOIR TO CROSS MEMBER
113
STRAP AIR RESERVOIR TO BRACKET
113
STRAP CLUTCH BOOSTER AIR RESERVOIR 520 MM
116
SCREW PIPE CLAMP
116
SCREW , Replaced By: N304017008021
119
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
119
NUT , Replaced By: N913004008001
119
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
120
NUT , Replaced By: N910113010000
120
NUT STRAP TO BRACKET
122
RESERVOIR5.6L,114,3 MM,10 BAR
122
RESERVOIR AIR DEHYDRATOR 5.6 L, Replaced By: A0024325001
122
RESERVOIR AIR DEHYDRATOR 5.6 L, Replaced By: A0034320501
125
BRACKET DEHYDRATOR AIR RESERVOIR,LEFT
128
BRACKET DEHYDRATOR AIR RESERVOIR,RIGHT L 100 MM, Replaced By: A6504312540
129
BRACKET DEHYDRATOR AIR RESERVOIR,RIGHT L 114 MM
130
BRACKET DEHYDRATOR AIR-RESERVOIR
131
WASHER RADIATOR TO RUBBER MOUNTING
131
WASHER , Replaced By: N000125010532
143
FITTING AIR RESERVOIR,CONNECTION: "15",5 433281
149
FITTING LINE CONNECTION
158
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
158
SCREW PLUG , Replaced By: N000908022011
161
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
161
THRUST RING CHECK VALVE TO AIR RESERVOIR
167
O-RING CHECK VALVE TO AIR RESERVOIR
173
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
179
SCREW. UNION SCREW LINE CONNECTION
182
SCREW. UNION SCREW , Replaced By: A0009973734
182
SCREW. UNION SCREW LINE CONNECTION
