Поз.
Артикул
Описание

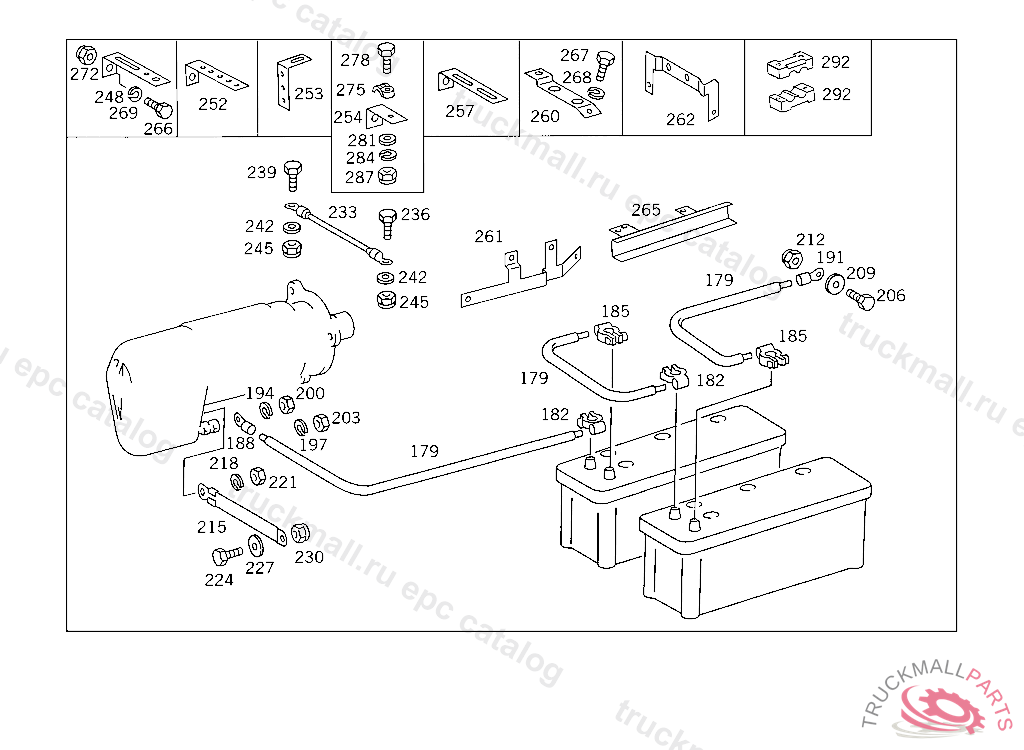

179
ELECTRIC CABLE FROM BATTERY POS.POLE TO STARTING MOTOR 70 MM2, ORDER BY THE METER
182
SOLDERING TERMINAL BATTERY POS. POLE 70 MM2
185
SOLDERING TERMINAL BATTERY NEG. POLE 70 MM2
188
CABLE SHOE BATTERY CABLE 12-70 MM
191
CABLE SHOE BATTERY CABLE 10-70 MM
194
LOCK WASHER FITTING TO BRACKET
197
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
200
NUT STRAP TO SUPPORT,5 149419
203
NUT BALL PIVOT TO LEVER
206
SCREW BRACKET TO SIDE MEMBER
206
SCREW , Replaced By: N304017010002
209
WASHER RADIATOR TO RUBBER MOUNTING
212
NUT STRAP TO BRACKET
212
NUT , Replaced By: N910113010000
215
GROUND STRAP FROM STARTING MOTOR TO SIDE MEMBER,5 193595
215
GROUND STRAP FROM STARTING MOTOR TO SIDE MEMBER
218
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
221
NUT BRACKET TO SUPPORT AND TO END PIECE
224
SCREW REAR EXHAUST PIPE TO MUFFLER
227
WASHER RADIATOR TO RUBBER MOUNTING
227
WASHER , Replaced By: N009021010209
227
WASHER , Replaced By: N000125010532
227
WASHER BRACKET TO COVERING
230
NUT , Replaced By: N910113010000
230
NUT STRAP TO BRACKET
233
NEG. CABLE , Replaced By: A6205402339
233
NEG. CABLE FROM FRAME CROSS MEMBER TO CAB
236
SCREW , Replaced By: N304017008034
236
SCREW BRACKET TO CROSS CONNECTION STRUT
239
SCREW , Replaced By: N304017008016
239
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
242
WASHER , Replaced By: N000125008443
242
WASHER EXHAUST MUFFLER TO STRAP
245
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
245
NUT , Replaced By: N913004008001
245
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
248
BRACKET , Replaced By: A3184280240
248
BRACKET LINE MOUNTING
252
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
254
BRACKET CABLE HARNESS MOUNTING
257
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT, TO BE ADAPTED DURING ASSEMBLY
257
BRACKET , Replaced By: A3524290740
260
BRACKET BATTERY CABLE TO ENGINE
262
BRACKET ENGINE CABLE HARNESS PLUG-CONNECTION
266
SCREW BRACKET TO SUPPORT M 16X20
266
SCREW BRACKET TO SIDE MEMBER M 12X40
266
SCREW BRACKET TO CROSS CONNECTION STRUT
266
SCREW , Replaced By: N304017008034
267
SCREW CENTRAL LOCK TO CAB M 10X16
268
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
272
NUT SUPPORT TO SIDE MEMBER
272
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
272
NUT , Replaced By: N913004008001
272
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
275
CLAMP BATTERY CABLE TO FRAME SIDE MEMBER NEAR TRANSMISSION
278
SCREW , Replaced By: N304017008034
278
SCREW BRACKET TO CROSS CONNECTION STRUT
278
SCREW ELECTRIC CABLE TO BRACKET
278
SCREW BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING M 6X40
278
SCREW BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING M 6X50
281
WASHER BRACKET TO LEFT SIDE MEMBER
281
WASHER COMPRESSED AIR LINE TO BRACKET
281
WASHER , Replaced By: N009021008213
281
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
284
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
287
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
287
NUT PUMP TO BRACKET
287
NUT , Replaced By: N913004008001
287
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
287
NUT , Replaced By: N913004006001
999
BLIND CAPTO A 004 541 48 01
