Поз.
Артикул
Описание

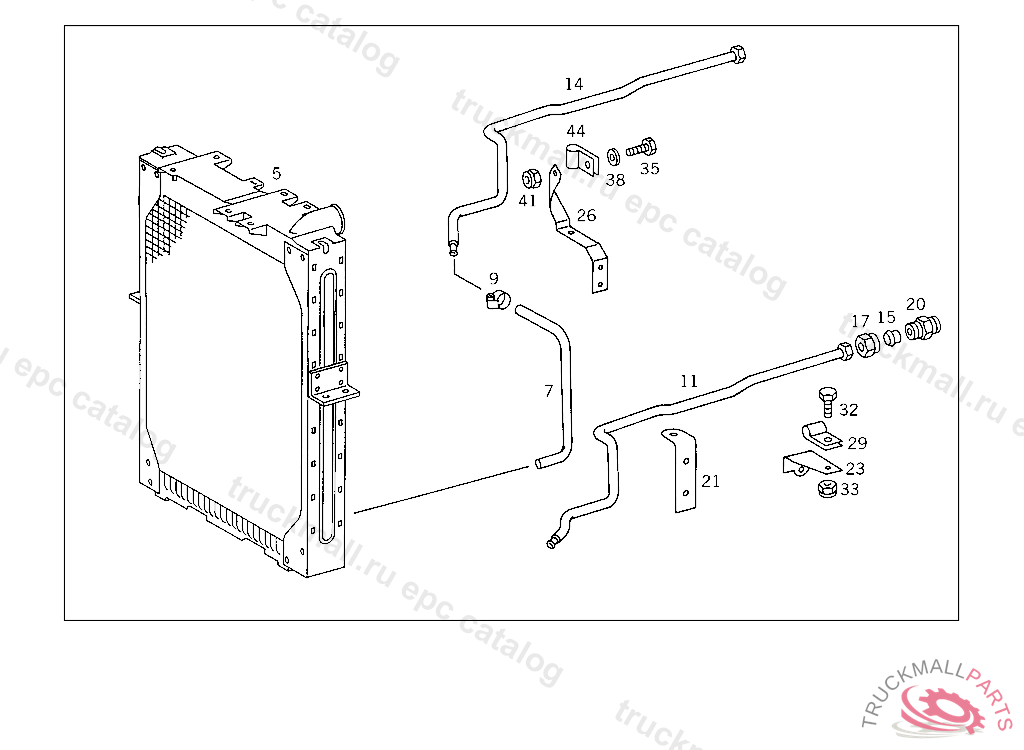

5
RADIATOR WITH SCREW FITTING
5
RADIATOR WATER BEHR
5
RADIATOR , Replaced By: A6525014201
5
RADIATOR , Replaced By: A6525014501
5
RADIATOR , Replaced By: A6525014501
5
RADIATOR , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 752618, Replaced By: A6555002103
5
RADIATOR , Replaced By: A6555003003, +001A6559974582, +001A6559974682
5
RADIATOR , Replaced By: A6555000303
5
RADIATOR , Replaced By: A6525016501
5
RADIATOR , FROM IDENT NO. 5 623090, SEE STANDARD MICROFICHE, Replaced By: A6525016601, +001A6552602262, +001A6552602985, +001A6552603085, +001A6559974182, +001A6559974682
5
RADIATOR , Replaced By: A6525014201
5
RADIATOR , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 752618, Replaced By: A6525012501
5
RADIATOR WITH SCREW FITTING
7
HOSE OIL COOLER CONNECTION,K 131865
7
HOSE OIL COOLER CONNECTION,K 131865
7
HOSE OIL COOLER CONNECTION 450 MM, TO BE ADAPTED DURING ASSEMBLYK 131865
9
CLAMP LINE MOUNTING
11
OIL PIPE FEED, OIL COOLER,5 564482K 131865
11
PIPE , Replaced By: A6552600485
11
PIPE , Replaced By: A6552600485
11
OIL PIPE FEED, OIL COOLER
11
PIPE FEED, OIL COOLER
11
OIL PIPE FEED, OIL COOLER, 5 386448
11
PIPE FEED, OIL COOLER
14
OIL PIPE RETURN, OIL COOLER, 5 386448
14
PIPE RETURN, OIL COOLER,K 131866
14
PIPE RETURN, OIL COOLER
14
OIL PIPE RETURN, OIL COOLER
14
OIL PIPE RETURN, OIL COOLER
14
OIL PIPE RETURN, OIL COOLER,5 564482K 131865
14
PIPE RETURN, OIL COOLER,K 131866
14
PIPE , Replaced By: A6552600585
15
GLAND , Replaced By: A0019901167
15
SEAL CONE LINE MOUNTING
15
GLAND LINE CONNECTION
17
UNION NUT LINE MOUNTING
17
UNION NUT LINE CONNECTION
20
CONNECTION FITTING , Replaced By: N003902018002
20
CONNECTION FITTING LINE CONNECTIONS
21
BRACKET , Replaced By: A6674710541
21
BRACKET AT CROSS MEMBER
23
BRACKET SHIFT LEVER BEARING TO CAB FLOOR
23
BRACKET BELL HOUSING
26
BRACKET AT ENGINE
29
CLAMP FEED LINE TO THERMOSTAT
32
SCREW , Replaced By: N304017006020
32
SCREW LICENSE PLATE TO BRACKET
33
NUT PUMP TO BRACKET
33
NUT , Replaced By: N913004006001
35
SCREW , Replaced By: N304017008034
35
SCREW , Replaced By: N304017008021
35
SCREW BRACKET TO CROSS CONNECTION STRUT
35
SCREW PIPE CLAMP
38
WASHER , Replaced By: N000125008443
38
WASHER EXHAUST MUFFLER TO STRAP
41
NUT , Replaced By: N913004008001
41
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
44
CLAMP , Replaced By: A3609950601
44
CLAMP FEED LINE TO THERMOSTAT
999
CLAMP , Replaced By: N000000000667
999
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
999
HOSE FEED, OIL COOLER
999
HOSE RETURN, OIL COOLER,K 131866
999
HOSE FEED, OIL COOLER,K 131866
999
HOSE LINE CONNECTIONS 350 MM, TO BE ADAPTED DURING ASSEMBLY
999
HOSE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 968464, Replaced By: A6559972282
999
RADIATOR , Replaced By: A6555000303
999
OIL PIPE FEED, OIL COOLER
999
PIPE FEED, OIL COOLER
999
PIPE FEED, OIL COOLER,K 131866
999
PIPE FEED, OIL COOLER,K 131866
999
PIPE FEED, OIL COOLER,K 131866
999
BRACKET AT ENGINE, FROM IDENT NO. 5 623090, SEE STANDARD MICROFICHEK 131865
999
RADIATOR , Replaced By: A6525014501
