Поз.
Артикул
Описание

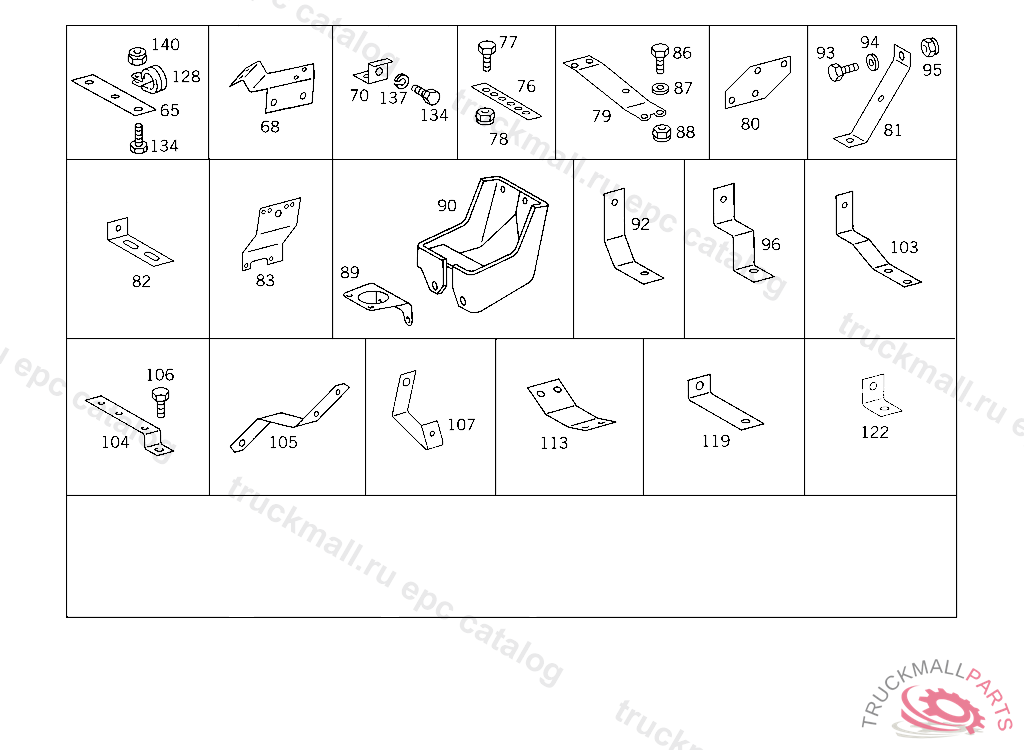

65
BRACKET PULL ROD TO SUPPORT,5 352764 TO BE ADAPTED DURING ASSEMBLY
65
BRACKET PULL ROD TO SUPPORT,5 352764 TO BE ADAPTED DURING ASSEMBLY
68
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT, TO BE ADAPTED DURING ASSEMBLY
68
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT, TO BE ADAPTED DURING ASSEMBLY
70
BRACKET LINE TO REAR TRANSMISSION CASE,5 537500
76
BRACKET , Replaced By: A6455240940
76
BRACKET COVERING
76
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
76
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
76
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
77
BRACKET OIL TANK
77
SCREW BRACKET TO APPARATUS SUPPORT M 10X30
78
NUT BRACKET TO SUSPENSION HOOK
79
BRACKET OIL TANK TO SUPPORT
79
BRACKET OIL TANK TO SUPPORT
80
BRACKET OIL TANK TO SUPPORT, SIMPLE PART-PLEASE HAVE SHOP MADE
81
BRACKET OIL TANK,K 209685
81
BRACKET OIL TANK,K 209685
82
BRACKET POWER CYLINDER DELIVERY LINE
83
BRACKET OIL TANK
86
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
86
SCREW , Replaced By: N304017008027
87
WASHER EXHAUST MUFFLER TO STRAP
87
WASHER , Replaced By: N000125008443
88
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
88
NUT , Replaced By: N913004008001
89
BRACKET OIL TANK
89
BRACKET OIL TANK
90
BRACKET OIL TANK
90
BRACKET OIL TANK
92
BRACKET OIL LINE TO ENGINE
93
HEXAGON HEAD BOLT. SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
93
SCREW , Replaced By: N304017008033
93
SCREW BRACKET TO FRAME
94
WASHER , Replaced By: N000125008443
94
WASHER EXHAUST MUFFLER TO STRAP
94
WASHER
95
NUT , Replaced By: N913004008001
95
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
95
NUT END PIECE TO EXHAUST PIPE
96
BRACKET OIL LINE TO ENGINE AND TO TRANSMISSION CASE,5 7081475 743112
103
BRACKET DELIVERY LINE TO FRAME
104
BRACKET LINE TO FRAME
104
BRACKET LINES TO BRACKET
104
BRACKET LINES TO SIDE MEMBER
104
BRACKET LINES TO SIDE MEMBER
104
BRACKET LINES TO BRACKET
105
BRACKET POWER CYLINDER DELIVERY LINE
106
SCREW COVER PLATE TO BRACKET
107
BRACKET LINE MOUNTING
107
BRACKET LINE MOUNTING
113
BRACKET AT BRACKET
119
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
122
ANGLE LINE MOUNTING
122
ANGLE LINE MOUNTING
128
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
128
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
128
CLAMP , Replaced By: A6739950001
128
CLAMP DELIVERY AND SUCTION LINES TO FRAME
128
CLAMP DELIVERY AND SUCTION LINES TO FRAME
128
CLAMP DELIVERY AND SUCTION LINES TO STEERING
128
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
128
CLAMP DELIVERY AND SUCTION LINES TO FRAME, Replaced By: N916016022203
128
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
128
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
128
CLAMP BRAKE HOSE BRACKET
128
CLAMP BRAKE HOSE BRACKET
128
CLAMP LINE MOUNTING
128
CLAMP LINE MOUNTING
128
CLAMP LINE MOUNTING
128
CLAMP HOSE TO FLANGE AND TO VALVE
128
CLAMP HOSE TO FLANGE AND TO VALVE
128
CLAMP FRAME MOUNTED CABLE HARNESS TO CAB
128
CLAMP FRAME MOUNTED CABLE HARNESS TO CAB
128
CLAMP FRAME MOUNTED CABLE HARNESS TO CAB
128
CLAMP FRAME MOUNTED CABLE HARNESS TO CAB
128
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
128
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
128
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
128
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
128
CLAMP DELIVERY AND SUCTION LINES TO STEERING
128
CLAMP DELIVERY AND SUCTION LINES TO STEERING
128
CLAMP DELIVERY AND SUCTION LINES TO STEERING
128
CLAMP DELIVERY AND SUCTION LINES TO STEERING
128
CLAMP DELIVERY AND SUCTION LINES TO STEERING
128
CLAMP DELIVERY AND SUCTION LINES TO STEERING
128
CLAMP DELIVERY AND SUCTION LINES TO STEERING
134
SCREW CONVERTER HOUSING TO FLYWHEEL
134
SCREW , Replaced By: N304017008018
134
SCREW END PIECE TO EXHAUST PIPE M 10X25
134
SCREW END PIECE TO EXHAUST PIPE M 10X25
134
SCREW , Replaced By: N304017010002
134
SCREW END PIECE TO EXHAUST PIPE M 10X25
134
SCREW COVER PLATE TO BRACKET
134
SCREW AT FILTER BRACKET
134
SCREW PUMP TO BRACKET
134
SCREW PUMP TO BRACKET
134
SCREW HOSE TO CAB M 6X25
134
SCREW , Replaced By: N304017006020
134
SCREW LONGITUDINAL DIFFERENTIAL LOCK VALVE TO BRACKET,5 963747
134
SCREW BRACKET TO SIDE MEMBER
134
SCREW BRACKET TO SIDE MEMBER
134
SCREW , Replaced By: N304017006016
134
SCREW BRACKET TO SIDE MEMBER M 12X30
134
SCREW LICENSE PLATE TO BRACKET
134
SCREW LICENSE PLATE TO BRACKET
134
SCREW LICENSE PLATE TO BRACKET
134
SCREW LICENSE PLATE TO BRACKET
134
SCREW LICENSE PLATE TO BRACKET
134
SCREW LICENSE PLATE TO BRACKET
134
SCREW LICENSE PLATE TO BRACKET
134
SCREW BRACKET TO FRAME SIDE MEMBER
134
SCREW CYLINDER TO P.T.O. HOUSING
134
SCREW CAB FLOOR COVERING M 6X25
134
SCREW CAB FLOOR COVERING M 6X25
134
SCREW SUPPORT TO FENDER
137
LOCK WASHER BRACKET TO TRANSMISSION CASE,5 537500
140
NUT , Replaced By: N913004006001
140
NUT AT FILTER BRACKET
140
NUT , Replaced By: N910113010000
140
NUT STRAP TO BRACKET
140
NUT STRAP TO BRACKET
140
NUT STRAP TO BRACKET
140
NUT STRAP TO BRACKET
140
NUT PUMP TO BRACKET
140
NUT PUMP TO BRACKET
140
NUT END PIECE TO EXHAUST PIPE
999
HOSE , Replaced By: A3859971682
999
HOSE , Replaced By: A3859971582
999
HOSE , Replaced By: A6999974082
999
HOSE , Replaced By: A3859971582
999
HOSE , Replaced By: A3859971582
999
BRACKET FENDER TO BRACKET
999
BRACKET DELIVERY LINE TO ENGINE
999
BRACKET OIL TANK,K 209686
999
BRACKET OIL LINE TO TRANSMISSION
999
BRACKET
999
BRACKET OIL TANK,K 181151K 209685
999
BRACKET LINES TO SIDE MEMBER
999
BRACKET ENGINE SUSPENSION EYE
999
BRACKET DELIVERY LINE TO FRAME
999
BRACKET ,5 936685
999
BRACKET OIL TANK TO PLATE
999
BRACKET POWER CYLINDER DELIVERY LINE,5 556098
999
BRACKET OIL LINE TO TRANSMISSION CASE
999
HOSE RETURN LINE CONNECTION 245 MM
999
HOSE RETURN LINE CONNECTION 200 MM, ORDER BY THE METER
999
HOSE RETURN LINE CONNECTION 250 MM, ORDER BY THE METER
999
HOSE
999
HOSE FROM RETURN LINE TO OIL TANK,K 012717
999
HOSE , Replaced By: A6254660281
999
HOSE FROM OIL TANK TO SUCTION LINE
999
HOSE FROM RETURN LINE TO OIL TANK
999
HOSE , Replaced By: A6254660381
999
BRACKET LINES TO BRACKET,K 187088
999
BRACKET POWER CYLINDER DELIVERY LINE,K 011674
999
BRACKET POWER CYLINDER DELIVERY LINE
999
LINE (SUCTION LINE) FROM OIL TANK TO PUMP,CIRCUIT II
999
LINE FROM STEERING TO PRESSURE LIMIT VALVE T-FITTING,CIRCUIT I, NOT USED
999
LINE (RETURN LINE),FROM HOSE TO HOSE
999
LINE (RETURN LINE),FROM HOSE TO HOSE
999
LINE (DELIVERY LINE),FROM PUMP TO HOSE, CIRCUIT I
999
LINE , Replaced By: A0005516156
999
LINE , Replaced By: A0005516156
999
LINE , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A6754600988
999
LINE FROM STEERING TO HIGH PRESSURE HOSE, CIRCUIT II
999
LINE FROM STEERING TO HIGH PRESSURE HOSE, CIRCUIT II
999
LINE (SUCTION LINE) FROM OIL TANK TO PUMP,CIRCUIT II
999
LINE DELIVERY LINE TO OIL PUMP,CIRCUIT II,5 764784
999
LINE (PRESSURE LINE),PUMP TO SEPARATION POINT ENGINE CIRCUIT II
999
LINE (SUCTION LINE) FROM OIL TANK TO PUMP,CIRCUIT II,5 7647845 760760
999
LINE (RETURN LINE),FROM HOSE TO HOSE,5 7647845 959804
999
LINE DELIVERY LINE TO OIL PUMP,CIRCUIT II,K 061656
999
LINE (RETURN LINE) TO OIL HOSE,CIRCUIT II
999
LINE (RETURN LINE) TO OIL HOSE,CIRCUIT I
999
LINE (PRESSURE LINE),PUMP TO SEPARATION POINT ENGINE CIRCUIT II
999
LINE DELIVERY LINE TO OIL PUMP,CIRCUIT II
999
LINE (SUCTION LINE) FROM OIL TANK TO PUMP,CIRCUIT II
999
LINE (SUCTION LINE) FROM OIL TANK TO PUMP,CIRCUIT II
999
LINE , Replaced By: A0005516256
999
LINE (RETURN LINE),FROM HOSE TO HOSE KREIS II
999
LINE (RETURN LINE),FROM HOSE TO HOSE KREIS I
999
LINE FROM STEERING TO HIGH PRESSURE HOSE, CIRCUIT I
999
LINE (RETURN LINE),FROM HOSE TO HOSE KREIS II
999
LINE (RETURN LINE),FROM HOSE TO HOSE KREIS I
999
LINE FROM STEERING TO HIGH PRESSURE HOSE, CIRCUIT I
999
LINE FROM PUMP TO HIGH PRESSURE HOSE, CIRCUIT II
999
LINE FROM PUMP TO HIGH PRESSURE HOSE, CIRCUIT I
999
LINE FROM HIGH PRESSURE HOSE TO POWER CYLINDER,CIRCUIT I "D"
999
LINE FROM HIGH PRESSURE HOSE TO POWER CYLINDER,CIRCUIT I "C"
999
LINE FROM HIGH PRESSURE HOSE TO POWER CYLINDER,CIRCUIT II "B"
999
LINE FROM STEERING TO HIGH PRESSURE HOSE, CIRCUIT II "B"
999
LINE DELIVERY LINE TO OIL PUMP,CIRCUIT II
999
LINE FROM STEERING TO HIGH PRESSURE HOSE, CIRCUIT II "A"
999
LINE (SUCTION LINE) FROM OIL TANK TO PUMP,CIRCUIT II
999
LINE FROM STEERING TO HIGH PRESSURE HOSE, CIRCUIT I
999
LINE DELIVERY LINE TO OIL PUMP,CIRCUIT II
999
LINE FROM STEERING TO HIGH PRESSURE HOSE, CIRCUIT I "C"
999
LINE FROM STEERING TO PRESSURE LIMIT VALVE T-FITTING,CIRCUIT I
999
LINE (RETURN LINE),FROM HOSE TO HOSE KREIS II
