Поз.
Артикул
Описание

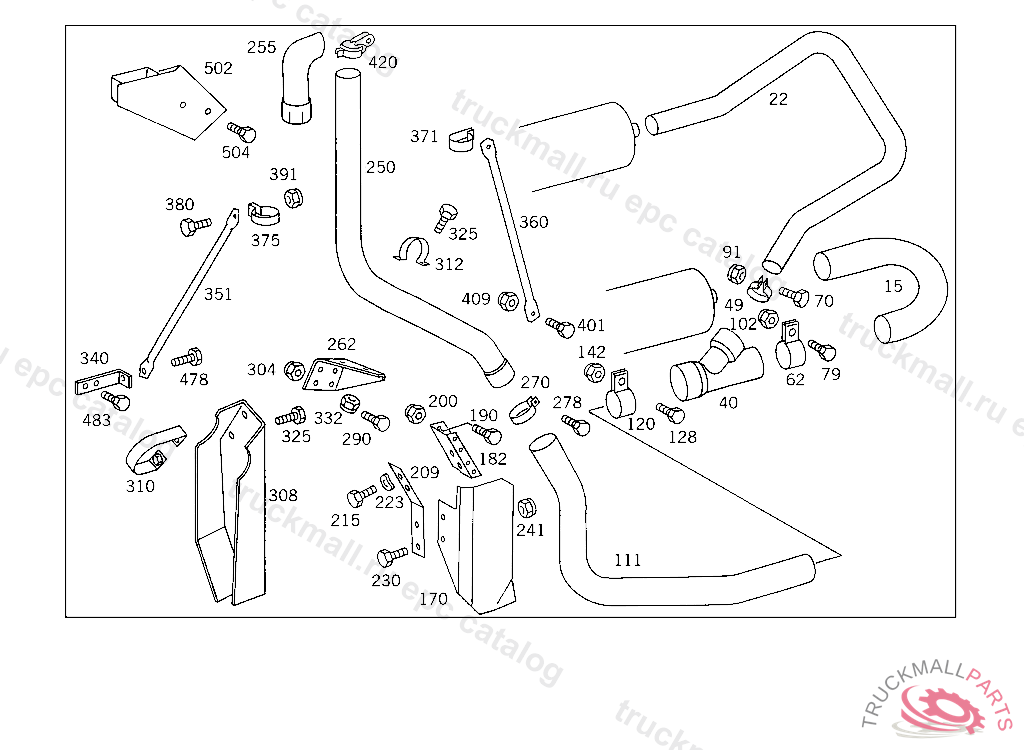

15
REAR EXHAUST PIPE FROM LEFT EXHAUST MUFFLER TO CONNECTION FITTING
15
REAR EXHAUST PIPE FROM RIGHT EXHAUST MUFFLER TO CONNEC TION FITTING
15
REAR EXHAUST PIPE FROM LEFT EXHAUST MUFFLER TO CONNECTION FITTING
15
REAR EXHAUST PIPE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 123753, Replaced By: A6554927105
22
REAR EXHAUST PIPE EXHAUST MUFFLER,LEFT
22
REAR EXHAUST PIPE FROM RIGHT EXHAUST MUFFLER TO CONNEC TION FITTING
22
REAR EXHAUST PIPE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 123753, Replaced By: A6554927105
22
REAR EXHAUST PIPE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 123753, Replaced By: A6554927105
22
REAR EXHAUST PIPE FROM RIGHT EXHAUST MUFFLER TO CONNEC TION FITTING
40
FITTING FRONT EXHAUST PIPE TO REAR EXHAUST PIPE
49
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
49
CLAMP , Replaced By: N071555094502
62
CLAMP EXHAUST PIPE
70
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
70
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
70
SCREW , Replaced By: N304017008027
79
SCREW BRACKET TO SIDE MEMBER
79
SCREW BRACKET TO SIDE MEMBER
79
SCREW , Replaced By: N304017010002
91
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
91
NUT , Replaced By: N913004008001
102
NUT STRAP TO BRACKET
102
NUT , Replaced By: N910113010000
111
REAR EXHAUST PIPE , Replaced By: A6554901821
111
EXHAUST PIPE FROM EXHAUST PIPE TO SEPARATION POINT
111
REAR EXHAUST PIPE FROM EXHAUST MUFFLER TO BRACKET AT SIDE MEMBER
111
REAR EXHAUST PIPE FROM PIPE SOCKET TO SEPARATION POINT
111
REAR EXHAUST PIPE FROM PIPE SOCKET TO SEPARATION POINT
120
CLAMP , Replaced By: N071555120502
120
CLAMP EXHAUST PIPE TO BRACKET
128
SCREW BRACKET TO SIDE MEMBER
128
SCREW , Replaced By: N304017010002
142
NUT , Replaced By: N910113010000
142
NUT STRAP TO BRACKET
170
PROTECTIVE PLATE TOP, NOT USED
182
BRACKET AT SIDE MEMBER
190
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
190
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
200
NUT BRACKET TO SIDE MEMBER
200
NUT BRACKET TO SIDE MEMBER
200
NUT , Replaced By: N910113014001
209
BRACKET EXHAUST PIPE SUSPENSION
209
BRACKET EXHAUST PIPE SUSPENSION
215
SCREW , Replaced By: N304017008034
215
SCREW BRACKET TO CROSS CONNECTION STRUT
215
SCREW BRACKET TO CROSS CONNECTION STRUT
215
SCREW BRACKET TO CROSS CONNECTION STRUT
223
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
223
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
223
SPRING WASHER , Replaced By: N000137008212
230
SCREW PIPE CLAMP
230
SCREW PIPE CLAMP
230
SCREW PIPE CLAMP
230
SCREW PIPE CLAMP
230
SCREW , Replaced By: N304017008021
241
NUT , Replaced By: N913004008001
241
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
241
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
250
END PIECE , Replaced By: A6554922814
250
END PIECE , Replaced By: A6554922814
250
REAR EXHAUST PIPE , Replaced By: A6554921114
250
REAR EXHAUST PIPE , Replaced By: A6554921114
250
REAR EXHAUST PIPE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 946474, Replaced By: A6554921405
250
REAR EXHAUST PIPE BEHIND CAB,UPWARD
250
END PIECE BEHIND CAB,UPWARD
250
END PIECE BEHIND CAB,UPWARD
250
REAR EXHAUST PIPE BEHIND CAB,UPWARD
255
END PIECE BEHIND CAB,UPWARD
262
BRACKET BEHIND CAB,UPWARD
262
BRACKET BEHIND CAB,UPWARD
262
BRACKET AT SIDE MEMBER,K 120829
262
BRACKET VERTICAL TAIL PIPE BEHIND CAB
262
BRACKET VERTICAL TAIL PIPE BEHIND CAB
270
CLAMP , Replaced By: N071555120502
270
CLAMP EXHAUST PIPE TO BRACKET
270
CLAMP EXHAUST PIPE TO BRACKET
278
SCREW , Replaced By: N304017010002
278
SCREW BRACKET TO SIDE MEMBER
278
SCREW BRACKET TO SIDE MEMBER
278
SCREW BRACKET TO SIDE MEMBER
278
SCREW BRACKET TO SIDE MEMBER
278
SCREW BRACKET TO SIDE MEMBER
278
SCREW BRACKET TO SIDE MEMBER
290
SCREW FRONT SPRING REAR BRACKET TO CROSS MEMBER
290
SCREW FRONT SPRING REAR BRACKET TO CROSS MEMBER
304
NUT STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
304
NUT , Replaced By: N910113014001
304
NUT BRACKET TO SIDE MEMBER
308
BRACKET BEHIND CAB,UPWARD
310
CLAMP BEHIND CAB,UPWARD
310
CLAMP BEHIND CAB,UPWARD
312
CLAMP UPPER EXHAUST PIPE TO BRACKET
312
CLAMP , Replaced By: A6454900341
312
CLAMP EXHAUST PIPE TO BRACKET
325
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
325
SCREW PIPE CLAMP
325
SCREW PIPE CLAMP
325
SCREW , Replaced By: N304017008027
325
SCREW , Replaced By: N304017008021
332
NUT , Replaced By: N913004008001
332
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
340
BRACKET BRACKET TO CAB MOUNTING CONSOLE
340
BRACKET BRACKET TO CAB MOUNTING CONSOLE
351
BRACKET STRUT
351
BRACKET STRUT
351
BRACKET (STRUT),FROM TAIL PIPE TO SIDE MEMBER
351
BRACKET (STRUT),FROM TAIL PIPE TO SIDE MEMBER
351
BRACKET (STRUT),FROM TAIL PIPE TO SIDE MEMBER
360
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 464366, Replaced By: A6554901140
360
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 464366, Replaced By: A6554901140
360
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 464366, Replaced By: A6554901140
360
BRACKET (STRUT),FROM TAIL PIPE TO SIDE MEMBER
360
BRACKET (STRUT),FROM TAIL PIPE TO SIDE MEMBER
360
BRACKET (STRUT),FROM TAIL PIPE TO SIDE MEMBER
360
BRACKET (STRUT),FROM TAIL PIPE TO SIDE MEMBER
360
BRACKET (STRUT),FROM TAIL PIPE TO SIDE MEMBER
371
CLAMP EXHAUST PIPE TO BRACKET
371
CLAMP EXHAUST PIPE TO BRACKET
375
CLAMP EXHAUST PIPE TO BRACKET
375
CLAMP EXHAUST PIPE TO BRACKET
375
CLAMP EXHAUST PIPE TO BRACKET
375
CLAMP EXHAUST PIPE TO BRACKET
380
SCREW BRACKET TO SIDE MEMBER
380
SCREW BRACKET TO SIDE MEMBER
380
SCREW BRACKET TO SIDE MEMBER
380
SCREW BRACKET TO SIDE MEMBER
380
SCREW END PIECE TO EXHAUST PIPE M 10X25
380
SCREW END PIECE TO EXHAUST PIPE M 10X25
380
SCREW END PIECE TO EXHAUST PIPE M 10X25
380
SCREW END PIECE TO EXHAUST PIPE M 10X25
380
SCREW , Replaced By: N304017010002
391
NUT , Replaced By: N910113010000
391
NUT STRAP TO BRACKET
391
NUT STRAP TO BRACKET
401
SCREW , Replaced By: N304017010002
401
SCREW , Replaced By: N308676014020
401
SCREW BRACKET TO SIDE MEMBER
401
SCREW BRACKET TO SIDE MEMBER
401
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
409
NUT , Replaced By: N910113014001
409
NUT BRACKET TO SIDE MEMBER
420
FLAP EXHAUST PIPE
478
SCREW BRACKET TO CAB CONSOLE,K 035197
478
SCREW BRACKET TO CAB CONSOLE,K 035197
478
SCREW BRACKET TO CAB CONSOLE,K 035197
483
SCREW , Replaced By: N308676012026
483
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
483
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
502
MOUNTING BRACKET TO CAB
504
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
504
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
504
SCREW , Replaced By: N308676012026
999
RUBBER BUFFER BRACKET TO SUPPORT
999
DAMPING PAD PARTICLE FILTER
999
BRACKET RUBBER BUFFER,5 129244
999
BRACKET (STRUT),FROM TAIL PIPE TO SIDE MEMBER
999
MOUNTING LEFT VIBRATION ABSORBER
999
BRACKET REAR EXHAUST PIPE TO BRACKET
999
BRACKET TAIL PIPE
999
BRACKET REAR EXHAUST PIPE TO SIDE MEMBER
999
BRACKET EXHAUST MUFFLER
999
CONSOLE REAR EXHAUST MUFFLER 126 MM
999
CONSOLE REAR EXHAUST MUFFLER 276 MM
999
BRACKET ,5 535799, Replaced By: A6204925341
999
BRACKET EXHAUST MUFFLER SUSPENSION
999
PROTECTIVE PLATE REAR EXHAUST PIPE
999
SUPPORT TAIL PIPE ON THE RIGHT
999
BRACKET TAIL PIPE ON THE RIGHT
999
BRACKET TAIL PIPE ON THE RIGHT
999
BRACKET , Replaced By: A6204925341
999
BRACKET REAR EXHAUST PIPE TO MUFFLER SUPPORT
999
REAR EXHAUST PIPE TAIL PIPE,5 535799
999
REAR EXHAUST PIPE TAIL PIPE,5 535799
999
END PIECE BEHIND CAB,UPWARD
999
REAR EXHAUST PIPE , Replaced By: A6254921114
999
EXHAUST MUFFLER
999
EXHAUST MUFFLER ,5 518156
999
EXHAUST MUFFLER ,5 535800
999
BRACKET POSTERIOR MUFFLER TO SIDE MEMBER
999
BASE PLATE TAIL PIPES TO BRACKET,K 120829
999
BRACKET TAIL PIPE
999
BRACKET EXHAUST MUFFLER
999
REAR EXHAUST PIPE SHORT,EXHAUST MUFFLER,RIGHT
999
REAR EXHAUST PIPE (TAIL PIPE)
999
REAR EXHAUST PIPE REAR,K 002403
999
CLAMP TAIL PIPE TO BRACKET
999
REAR EXHAUST PIPE REAR
999
REAR EXHAUST PIPE REAR
999
BRACKET REAR EXHAUST PIPE
999
CLAMP , Replaced By: A6454900341, +002A6244920053
999
PROTECTIVE PLATE (HEAT SHIELD)
999
EXHAUST PIPE REAR
999
REAR EXHAUST PIPE EXHAUST MUFFLER,LEFT
999
BRACKET TAIL PIPE TO SIDE MEMBER
999
BRACKET REAR EXHAUST PIPE TO SIDE MEMBER
999
BRACKET REAR EXHAUST PIPE TO SIDE MEMBER
999
BRACKET TAIL PIPE TO APPARATUS SUPPORT
999
END PIECE TAIL PIPE
999
REAR EXHAUST PIPE LONG,EXHAUST MUFFLER,RIGHT
999
PROTECTIVE PLATE SCREENING PLATE,5 547064
