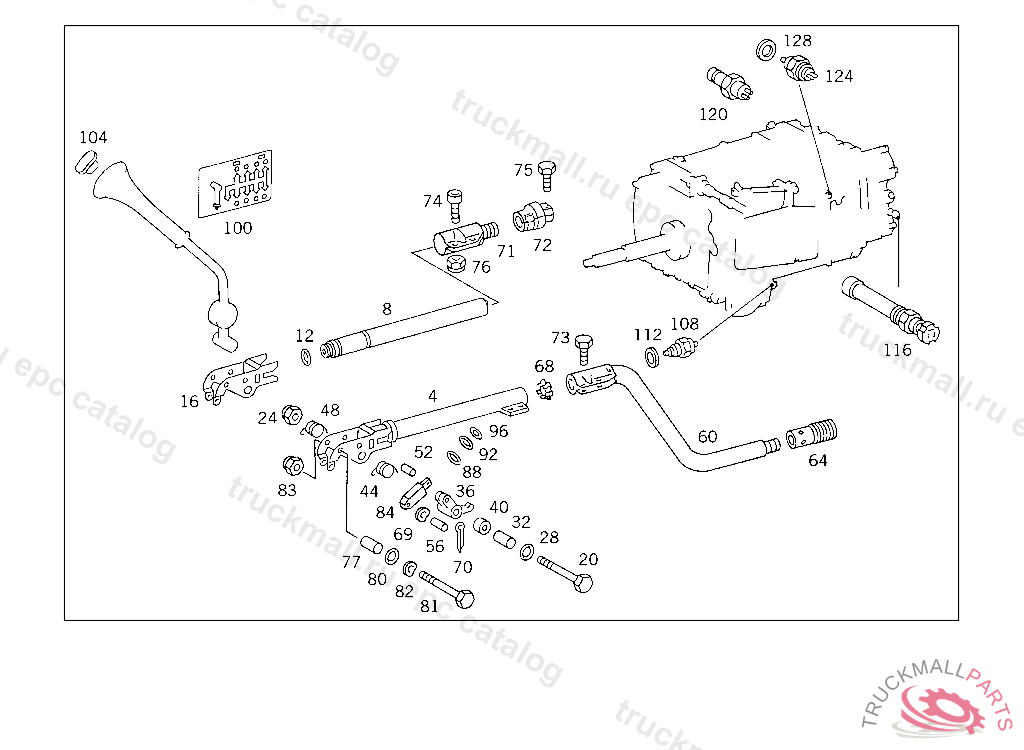

Поз.
Артикул
Описание
4
SHIFTING ROD (TELESCOPIC SHIFTING ROD)
4
SHIFTING ROD (TELESCOPIC SHIFTING ROD),K 142857
8
SHIFTING TUBE (TELESCOPIC TUBE)
8
SHIFTING TUBE (TELESCOPIC TUBE)
12
SEAL RING HYDRAULIC RELEASE
16
ROD END HYDRAULIC RELEASE
16
ROD END HYDRAULIC RELEASE
20
SCREW SHIFTING ROD TO SHIFT LEVER
20
SCREW , Replaced By: N000933010192
24
NUT , Replaced By: N910113010000
24
NUT STRAP TO BRACKET
28
ROUND CORD RING. SEAL RING ROD END
32
SPACER TUBE SHIFTING ROD TO SHIFT LEVER
36
PAWL ,5 4430475 443048, Replaced By: A6202600087, +001A6202680150
36
PAWL SHIFTING ROD,5 443048
40
BUSHING PAWL TO ROD END,5 443048
40
BUSHING PAWL TO ROD END,5 443048
40
BUSHING PAWL TO ROD END,5 443047
44
SPRING ROD END
48
SPRING ROD END
52
PIN SHIFTING CYLINDER TO PAWL 8X20 MM
56
PIN SHIFTING CYLINDER TO YOKE 8X45 MM
56
PIN SHIFTING CYLINDER TO YOKE
60
SHIFTING TUBE REAR
60
SHIFTING ROD REAR
60
SHIFTING TUBE REAR
60
SHIFTING TUBE REAR
60
SHIFTING ROD REAR
60
ROD REAR
60
SHIFTING ROD REAR
60
ROD REAR
60
SHIFTING ROD REAR
60
ROD REAR
60
SHIFTING ROD REAR
60
SHIFTING ROD , Replaced By: A6552602147
60
SHIFTING ROD REAR
60
ROD REAR
64
CONNECTOR , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A6172680028
68
WASHER BETWEEN THE SHIFTING RODS
69
SPRING WASHER SHIFTING CYLINDER TO YOKE
69
SPRING WASHER SHIFTING CYLINDER TO YOKE
70
COTTER PIN LEVER TO ROD
70
COTTER PIN LEVER TO ROD
70
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
71
BRACKET FRONT SHIFTING ROD TO REAR SHIFTING ROD
72
CLAMPING PIECE SHIFTING ROD TO TRANSMISSION
73
SCREW CONNECTOR TO REAR SHIFTING ROD
73
SCREW , Replaced By: N304017010047
74
SCREW FRONT SHIFTING ROD TO REAR SHIFTING ROD
75
SCREW END PIECE TO EXHAUST PIPE M 10X25
76
NUT , Replaced By: N910113010000
76
NUT STRAP TO BRACKET
77
SPACER TUBE SHIFTING ROD TO SHIFT LEVER
80
SEAL RING LEVER BEARING
80
ROUND CORD RING. SEAL RING ROD END
80
ROUND CORD RING. SEAL RING ROD END
81
SCREW , Replaced By: N000933010192
81
SCREW SHIFTING ROD TO SHIFT LEVER
82
SPRING WASHER SHIFTING ROD TO SHIFT LEVER
83
NUT , Replaced By: N910113010000
83
NUT STRAP TO BRACKET
84
SHIFTING CYLINDER HYDRAULIC RELEASE TECHNOMATIK
84
SHIFTING CYLINDER HYDRAULIC RELEASE WABCO
88
SEAL RING PISTON RINGS WABCO
92
SEAL RING SCREW FITTING WABCO
96
SEAL RING OUTSIDE WABCO
100
GUMMED LABEL GEAR INDICATOR
104
COVER SHIFT LEVER KNOB LESS GEARSHIFT DIAGRAM
108
SWITCH , Replaced By: A0005459009
108
SWITCH TORQUE REDUCER
108
SWITCH , Replaced By: A0015452709
108
SWITCH , Replaced By: A0015451109
112
SEAL RING IDLE POSITION SWITCH TO THREADED BUSHING, AS REQUIRED 2.00 MM
116
SENDER UNIT , Replaced By: A0125424617, +001A3565400381
116
SENDER UNIT AT TRANSMISSION CASE TOP COVER
116
SENDER UNIT , Replaced By: A0075422517
116
SENDER UNIT , Replaced By: A0105428017
120
SENDER UNIT OVERREVVING
124
SWITCH GEAR CLUSTER INDICATION
124
SWITCH GEAR CLUSTER INDICATION
128
SEAL RING , Replaced By: N007603018100
128
SEAL RING SWITCH TO CASE COVER
128
SEAL RING SWITCH TO CASE COVER
999
JOINT SHIFTING ROD TO TRANSMISSION
999
SCREW SHIFTING ROD TO TRANSMISSION
999
JOINT SHIFTING ROD TO TRANSMISSION
999
PIN SHIFTING ROD TO JOINT
999
WASHER BETWEEN FRONT AND REAR SHIFTING TUBES
999
NUT
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
